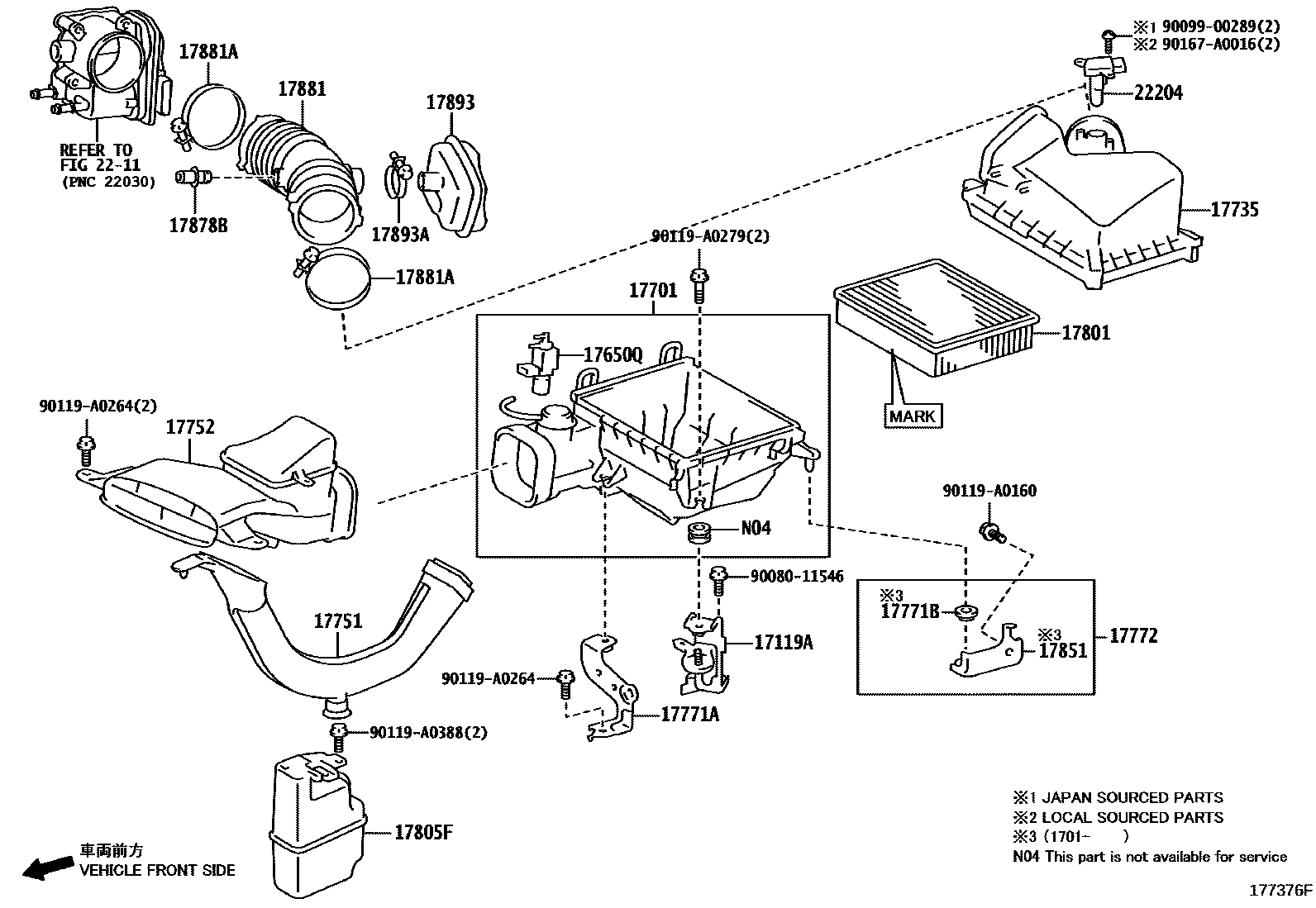

AIR CLEANER

17119ABRACKET, AIR CLEANER

main17119-0V020i2GRFE..GSX40201210-201506

17650QVALVE, VACUUM SWITCHING

main90910-AC002i2GRFE..GSX40201210-201510

17701CASE SUB-ASSY, AIR CLEANER

main17701-0P070i2GRFE..GSX40201210-201510

17735CAP, AIR CLEANER

main17735-0P120i2GRFE..GSX40201210-201510

17751INLET, AIR CLEANER, NO.1

main17751-0P160i2GRFE..GSX40201210-201510

17752INLET, AIR CLEANER, NO.2

main17752-0P100i2GRFE..GSX40201210-201510

main17752-0P101i2GRFE..GSX40201605

17771ABRACKET, AIR CLEANER

main17771-0V010i2GRFE..GSX40201210-201510

main17771-36030i2GRFE..GSX40201701

(J)

17771BGROMMET(FOR AIR CLEANER BRACKET)

main90480-18006i2GRFE..GSX40201701

17772BRACKET, INTAKE AIR CONNECTOR, NO.2

main17772-0V010i2GRFE..GSX40201210-201510

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-0P051i2GRFE..GSX40201210-201510

MARK = MADE IN USA

main17801-31131i2GRFE..GSX40201210-201510

MARK = MADE IN JAPAN

17805FRESONATOR SUB-ASSY, INTAKE AIR

main17805-0P030i2GRFE..GSX40201210-201510

17851BRACKET, AIR CLEANER SUPPORT

main17851-36020i2GRFE..GSX40201701

17878BTUBE, VENTILATION

main17878-0P020i2GRFE..GSX40201210-201510

17881HOSE, AIR CLEANER, NO.1

main17881-0P130i2GRFE..GSX40201210-201510

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10900×2i2GRFE..GSX40201210-201510

17893RESONATOR, INTAKE AIR

main17893-0P120i2GRFE..GSX40201210-201510

17893ACLAMP, HOSE

main96111-10380i2GRFE..GSX40201210-201510

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0V010i2GRFE..GSX40201210-201510

MARK 22204-0V010

main22204-0V020i2GRFE..GSX40201510

MARK 22204-0V020

main22204-28010i2GRFE..GSX40201510

MARK 22204-28010

9008011546

main90080-11546

9009900289

main90099-00289

90119A0160

main90119-A0160

90119A0264

main90119-A0264

90119A0279

main90119-A0279

90119A0388

main90119-A0388

90167A0016

main90167-A0016

26 parts on this diagram · 1 diagram in section
