WATER PUMP

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

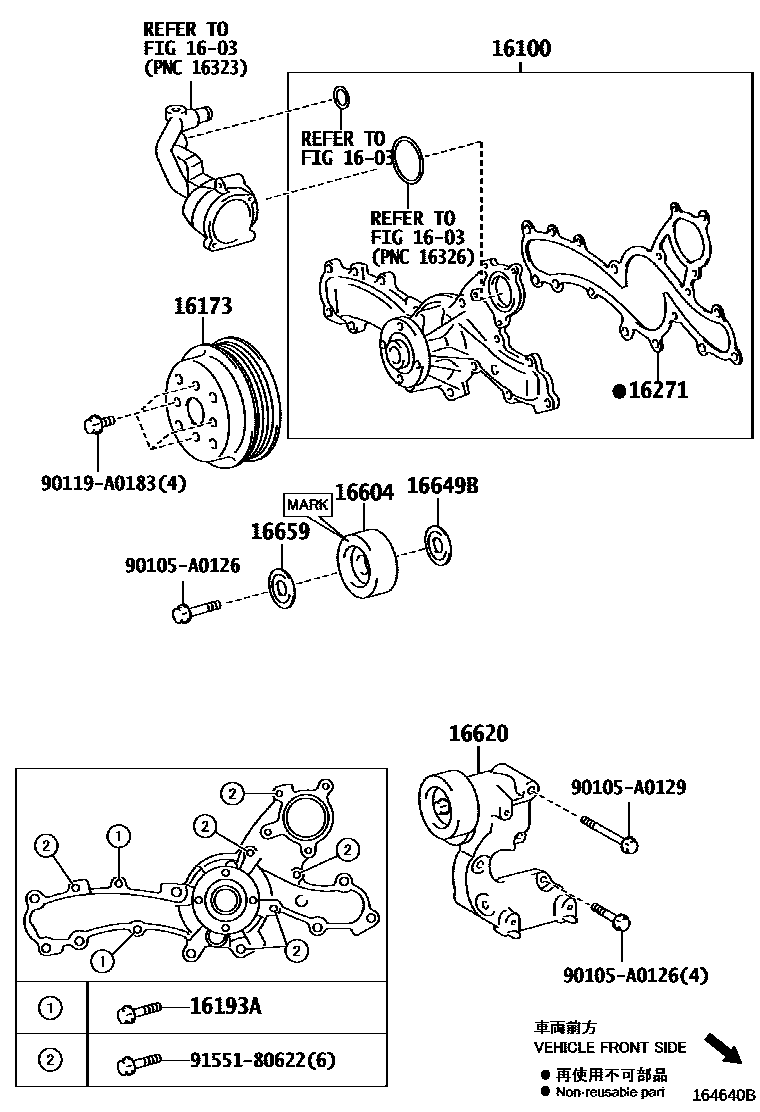

16100PUMP ASSY, ENGINE WATER

main16100-09441i2GRFE..GSX40201210-201510

main16100-09442i2GRFE..GSX40201608

16173PULLEY, WATER PUMP

main16173-31010i2GRFE..GSX40201510

16193ABOLT(FOR WATER PUMP COVER)

main16193-0P040×2i2GRFE..GSX40201608-201804

(L)

main16193-31080×2i2GRFE..GSX40201210-201510

16271GASKET, WATER PUMP

main16271-0P010i2GRFE..GSX40201510

(L)

main16271-31030i2GRFE..GSX40201312-201510

(J)

16604PULLEY SUB-ASSY, IDLER, NO.2

main16604-31020i2GRFE..GSX40201210-201510

MARK=PU107013ARMXY3

16620TENSIONER ASSY, V-RIBBED BELT

main16620-31040i2GRFE..GSX40201210-201510

16649BPLATE, IDLER PULLEY COVER

main16649-31020i2GRFE..GSX40201210-201510

16659PLATE, IDLER PULLEY COVER, NO.2

main16659-AD010i2GRFE..GSX40201210-201510

90105A0126

main90105-A0126

90105A0129

main90105-A0129

90119A0183

main90119-A0183

9155180622

main91551-80622

13 parts on this diagram · 1 diagram in section
