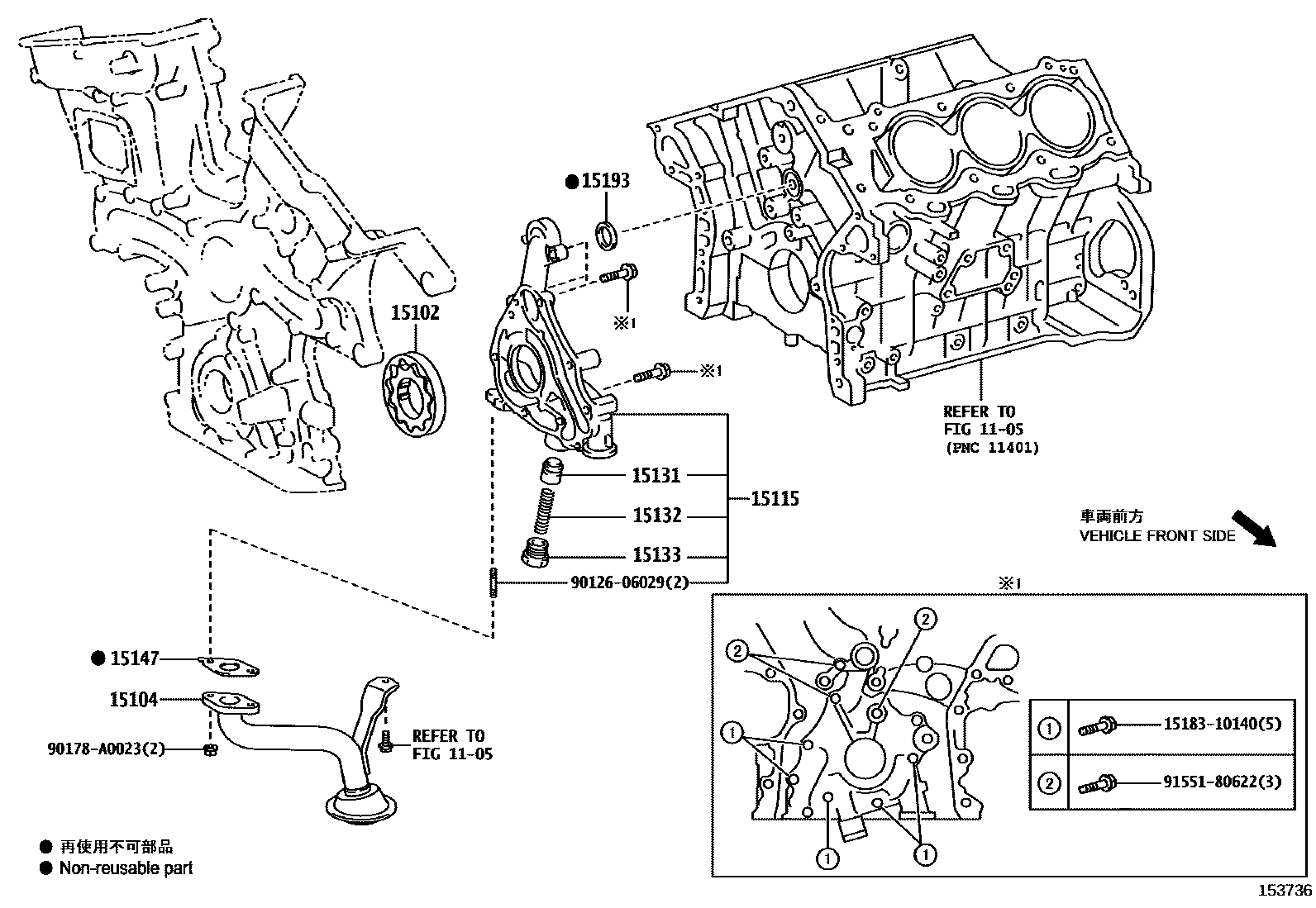

ENGINE OIL PUMP

1105CYLINDER BLOCK

→ Go to FIG 11-05

15102ROTOR SET, OIL PUMP

main15103-0P010i2GRFE..GSX40201210-201510

(L)

main15103-31050i2GRFE..GSX40201312-201510

(J)

15104STRAINER SUB-ASSY, OIL

main15104-31120i2GRFE..GSX40201210-201510

main15104-31190i2GRFE..GSX40201510

15115COVER, OIL PUMP

main15115-0P030i2GRFE..GSX40201210-201510

(L)

main15115-31040i2GRFE..GSX40201312-201510

(J)

15131VALVE, OIL PUMP RELIEF

main15131-17010i2GRFE..GSX40201510

15132SPRING, OIL PUMP RELIEF VALVE

main15132-0A020i2GRFE..GSX40201210-201510

(L)

main15132-46020i2GRFE..GSX40201312-201510

(J)

15133PLUG, OIL PUMP RELIEF VALVE

main15133-28020i2GRFE..GSX40201510

15147GASKET, OIL STRAINER

main15147-0P020i2GRFE..GSX40201210-201510

15193GASKET, OIL PUMP

main15193-0P010i2GRFE..GSX40201210-201510

main15193-31020i2GRFE..GSX40201611

(J)

1518310140BOLT, UNION(FOR OIL PUMP)

main15183-10140

9012606029

main90126-06029

90178A0023

main90178-A0023

9155180622

main91551-80622

13 parts on this diagram · 1 diagram in section
