STANDARD TOOL

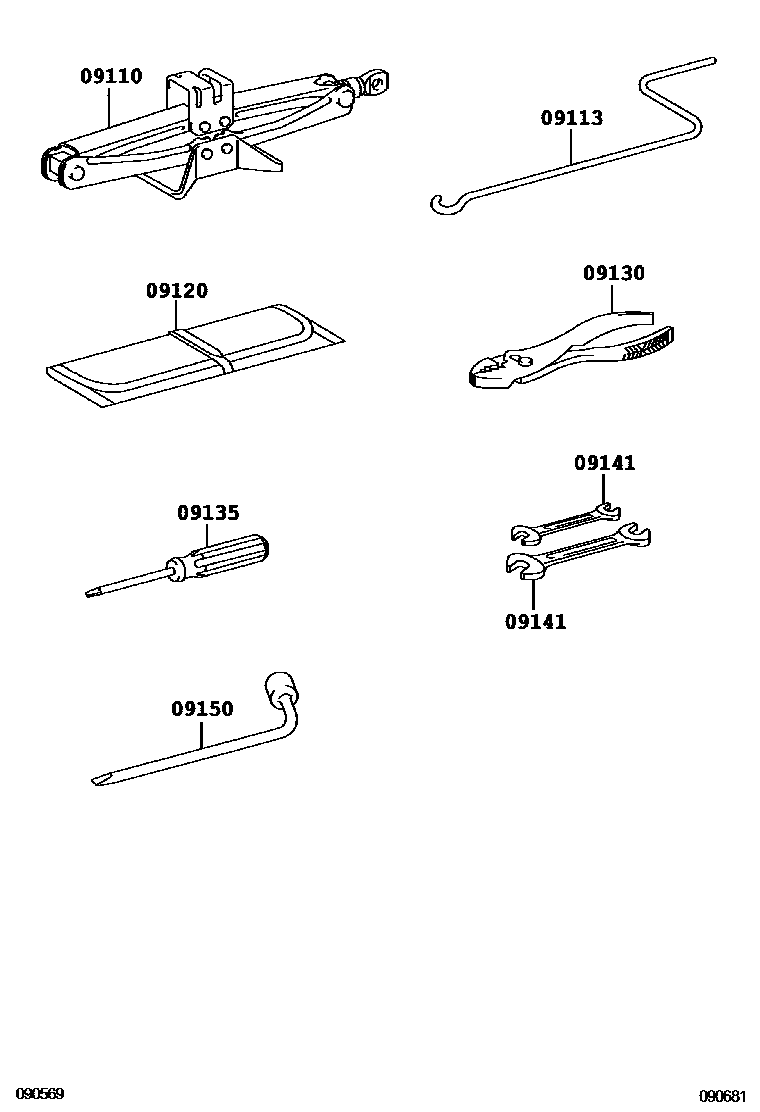

Parts diagram

09110JACK ASSY

main09111-06151i201210-201605

main09111-0W160i201606

09113HANDLE, JACK

main09113-AE011i201210-201510

09120BAG, TOOL

main09120-16030i201210-201510

09130PLIERS

main99913-11500i201210-201510

09135DRIVER, SCREW

main99915-10700i201210-201510

09141SPANNER

main99914-10810i201210-201510

8 X 10

main99914-11214i201210-201510

12 X 14

09150WRENCH, HUB NUT BOX

main09150-02020i201210-201510

7 parts on this diagram · 1 diagram in section
