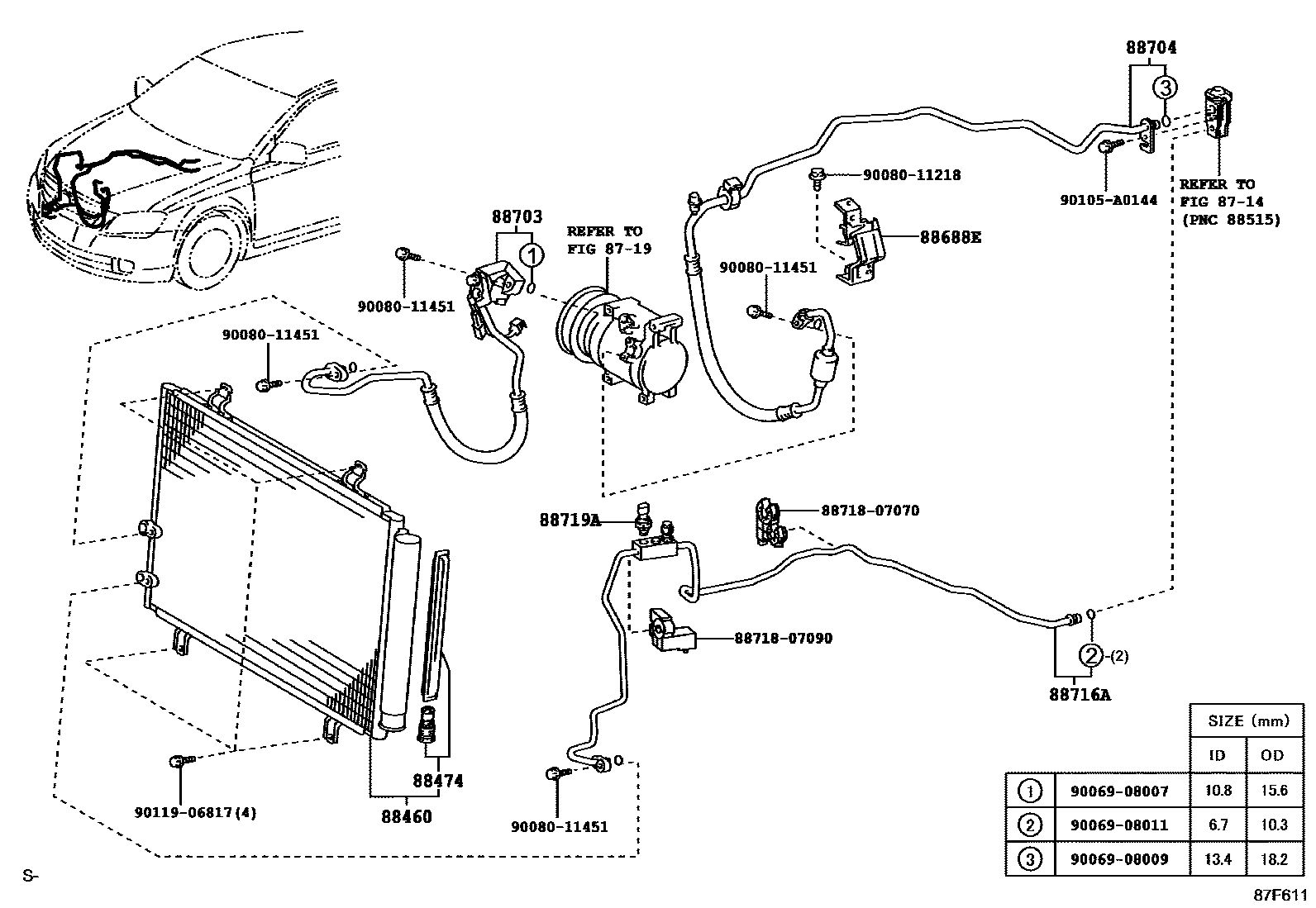

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88460CONDENSER ASSY, COOLER

main88460-06210iGSX30200707-201003

main88460-07060iGSX30200501-200512

88474DRYER, COOLER

main88474-17010iGSX30200501-200512

88688EBRACKET, COOLER REFRIGERANT HOSE, NO.1

main88688-07060iGSX30200707-201003

88703HOSE SUB-ASSY, DISCHARGE

main88703-07030iGSX30200501-200602

main88703-07040iGSX30200602-200707

main88703-07050iGSX30200707-201003

88704HOSE SUB-ASSY, SUCTION

main88704-07070iGSX30200501-200707

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-07140iGSX30200501-200707

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iGSX30201005

main88719-40020iGSX30200501-200611

8871807070PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-07070

8871807090PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-07090

9006908007

main90069-08007

9006908009

main90069-08009

9006908011

main90069-08011

9008011218

main90080-11218

9008011451

main90080-11451

90105A0144

main90105-A0144

9011906817

main90119-06817

18 parts on this diagram · 2 diagrams in section
