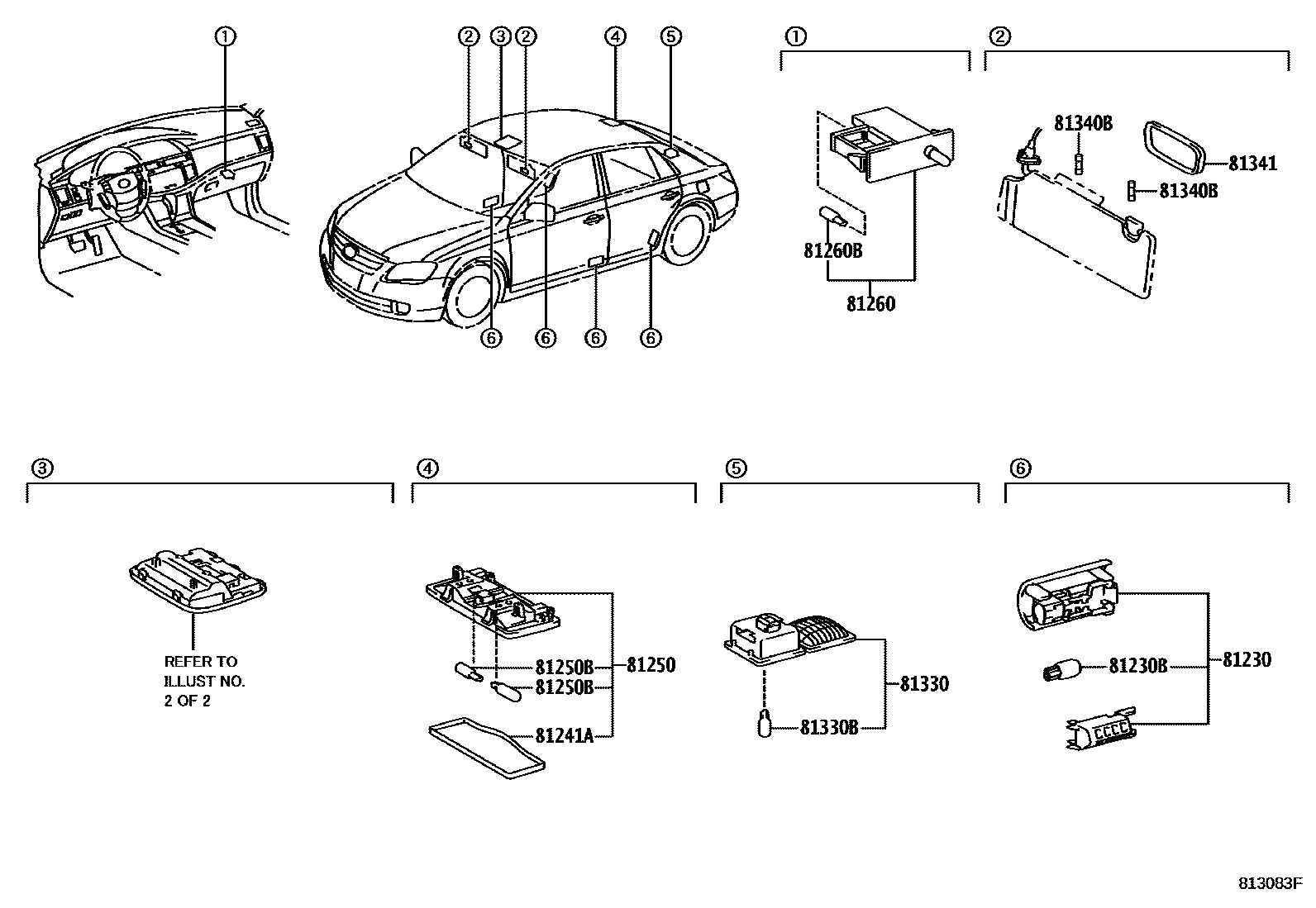

INTERIOR LAMP

0001 1 0002 1 0003 1

81230LAMP ASSY, COURTESY

main81230-47010×4iGSX30200501-200707

81230BBULB(FOR COURTESY LAMP)

main90981-12010×4iGSX30201005

12V 5W

81241ALENS, ROOM LAMP, NO.2

main81363-AC010iGSX30201005

81250LAMP ASSY, ROOM, NO.2

main81250-AC030-A0iGSX30200501-200707

IVORY,TRIM0#

main81250-AC030-B0iGSX30..LIMD; GSX30..XL200501-200707

LT.GRAY,TRIM1#; LT.GRAY,TRIM16,17

main81250-AC030-B1iGSX30..LIMD201005-201210

GRAY,TRIM2#

81250BBULB, ROOM LAMP, NO.2

main90084-81002×2iGSX30200501-200707

12V 5W

81260LAMP ASSY, GLOVE BOX

main81260-33030iGSX30200501-200707

81260BBULB(FOR GLOVE BOX)

main90981-11018iGSX30200501-200707

12V 1.2W W/O SOCKET

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-AA010iGSX30200501-200707

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90084-98043iGSX30200501-200707

12V 5W

81340BBULB (FOR VANITY LAMP)

main90084-98013×4iGSX30200501-200707

81341LENS, VANITY LAMP

main81351-AA010×2iGSX30200501-200707

11 parts on this diagram · 3 diagrams in section
