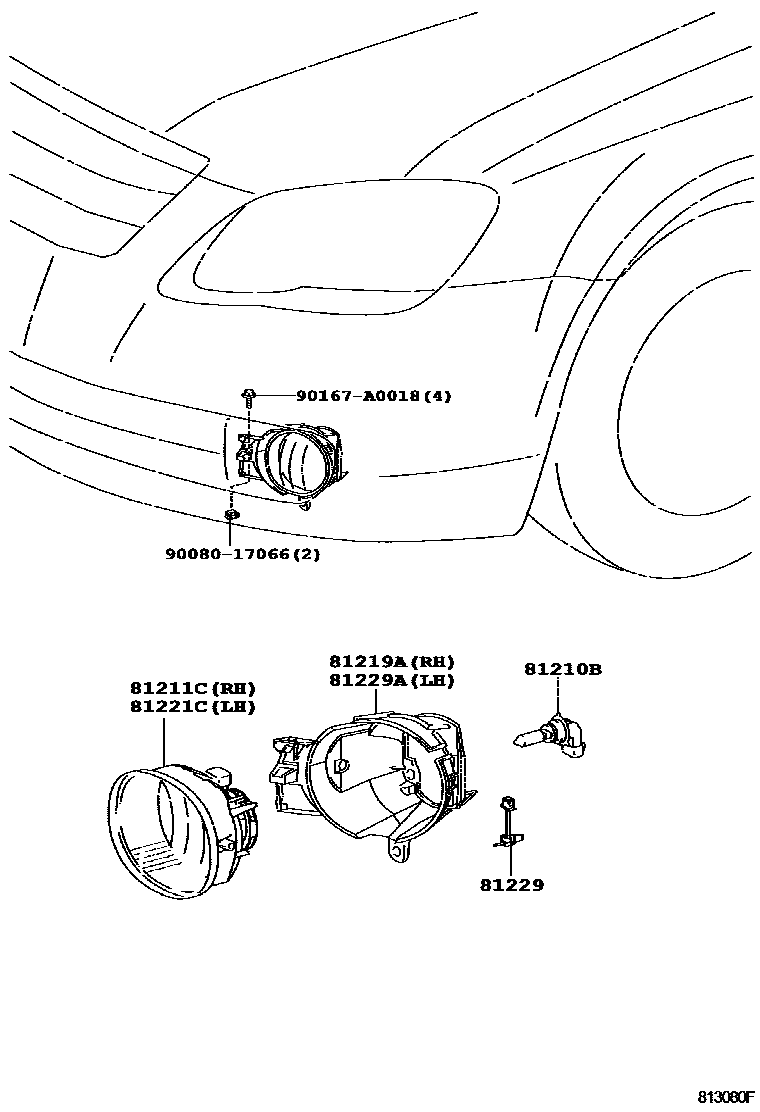

FOG LAMP

0001 1 0002 1 0003 1

81210BBULB, FOG LAMP

main90981-13047iGSX30..LIMD200501-200707

12V 51W,HALOGEN

main90981-AD006iGSX30..LIMD200707-201003

12V 55W

81211CLAMP UNIT, FOG LAMP, RH

main81211-42061iGSX30..LIMD200506-200707

main81211-AC040iGSX30..LIMD200501-200506

81219ABRACKET, FOG LAMP, RH

main81219-AC010iGSX30..LIMD200501-200707

81221CLAMP UNIT, FOG LAMP, LH

main81221-42061iGSX30..LIMD200506-200707

main81221-AC040iGSX30..LIMD200501-200506

81229BRACKET, FOG LAMP

main81218-42050iGSX30..LIMD200501-200707

RH

main81228-42050iGSX30..LIMD200501-200707

LH

81229ABRACKET, FOG LAMP, LH

main81229-AC010iGSX30..LIMD200501-200707

9008017066

main90080-17066

90167A0018

main90167-A0018

8 parts on this diagram · 3 diagrams in section
