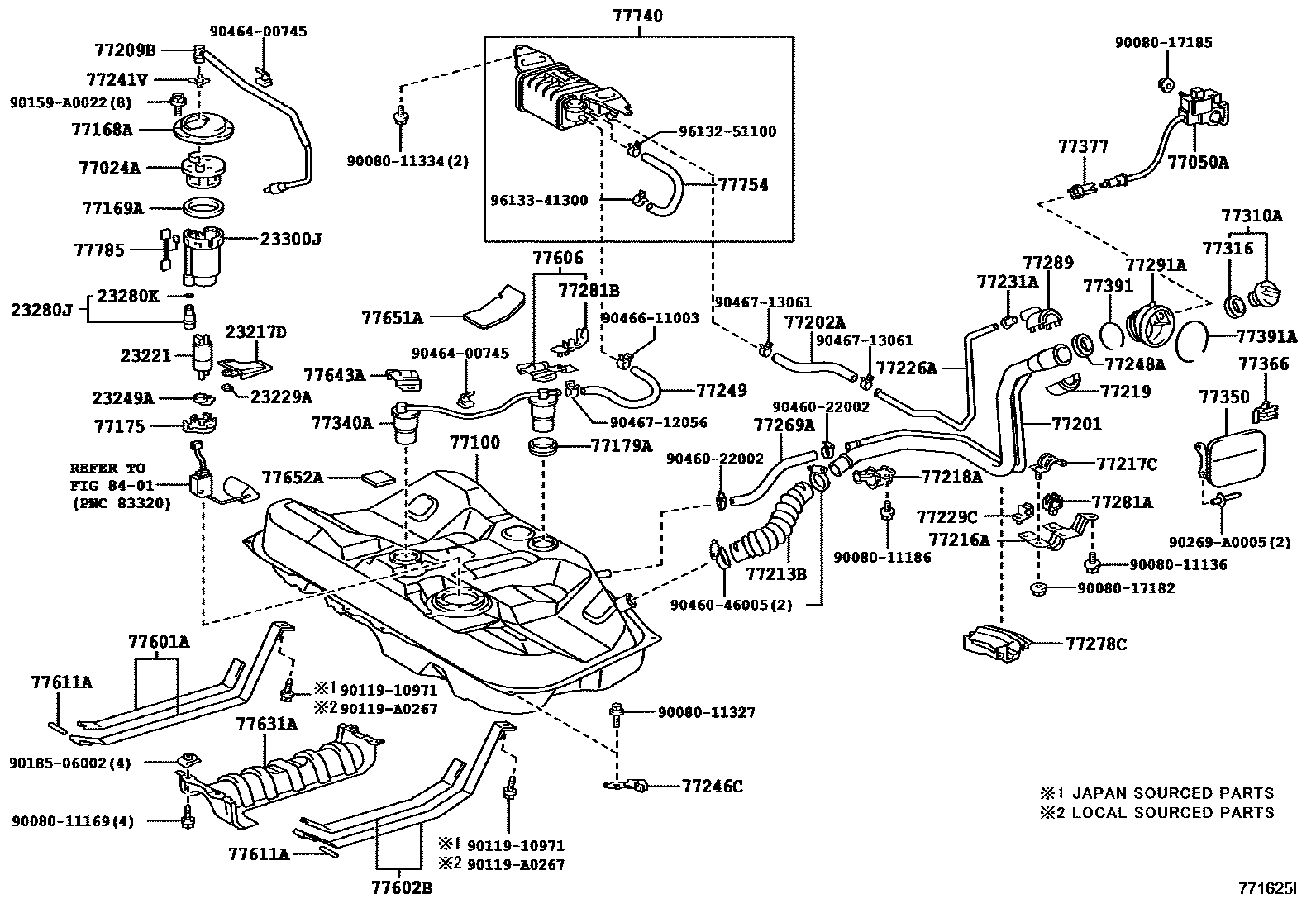

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TUBE

23217DFILTER, FUEL PUMP

main23217-0C010i2GRFE..GSX30200501-200707

23221PUMP, FUEL

main23221-0A040i2GRFE..GSX30200501-200707

23229ACLIP(FOR FUEL PUMP FILTER)

main23219-03010i2GRFE..GSX30200501-200707

23249ARUBBER, CUSHION(FOR FUEL PUMP)

main23249-0A020i2GRFE..GSX30200501-200707

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-20060i2GRFE..GSX30200501-200707

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-07020i2GRFE..GSX30200501-200707

23300JFILTER ASSY, FUEL

main23300-0A020i2GRFE..GSX30200501-200707

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-06020iGSX30200501-200707

77050ACONTROL OPENER ASSY, FUEL LID LOCK

main77050-AC020iGSX30200501-200707

77100TANK ASSY, FUEL

main77001-07050iGSX30200501-200707

main77001-07051iGSX30200808-201003

77168APLATE, FUEL TANK VENT TUBE SET

main77168-33050iGSX30200501-200707

77169AGASKET, FUEL SUCTION TUBE SET

main77169-02020iGSX30200501-200707

77175SUPPORT, FUEL SUCTION, NO.2

main77175-06020iGSX30200501-200707

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-33010×2iGSX30200501-200707

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-07060iGSX30200501-200602

77202AHOSE, FUEL, NO.1 (FOR BREATHER TUBE)

main95333-08030iGSX30200501-200602

*H,L=240

77209BTUBE SUB-ASSY, FUEL PUMP

main77209-06030iGSX30200501-200707

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-06010iGSX30200501-200602

L=240

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-07030iGSX30200501-200508

main77216-07031iGSX30200508-200602

77217CSUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-07010iGSX30200501-200602

77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3

main77218-06010iGSX30200501-200602

77219COVER, FUEL TANK FILLER PIPE

main77219-06040iGSX30200501-200602

77226ATUBE, FUEL TANK BREATHER, NO.6

main77226-07020iGSX30200501-200603

main77226-07021iGSX30200603-200707

77229CCLAMP, BREATHER TUBE

main77229-06040iGSX30200501-200508

sub77229-33060

main77229-07020iGSX30200508-200602

77231ACONNECTOR, FUEL TANK BREATHER TUBE

main77232-07010iGSX30200501-200603

main77232-07020iGSX30200603-200707

77241VCLIP, TUBE JOINT

main77241-02010iGSX30200501-200707

77246CSUPPORT, FUEL MAIN TUBE

main77246-06010iGSX30200808-201003

(L)

main77246-33020iGSX30201005

(J)

77248AHOLDER, FUEL TANK FILLER PIPE COVER

main77248-06020iGSX30200501-200602

77249HOSE, FUEL EMISSION

main90080-44094iGSX30200501-200707

main95337-06030iGSX30201001-201003

77269AHOSE, FUEL TANK BREATHER

main90080-44079iGSX30200603-200707

77278CPROTECTOR, FUEL TANK FILLER PIPE, NO.2

main77278-07040iGSX30200508-200602

77281ACLAMP, FUEL FILLER PIPE

main77281-48030iGSX30200501-200602

77281BCLAMP, FUEL HOSE(FOR REAR FUEL MAIN)

main77281-33010iGSX30200501-200707

77289HOLDER, FUEL TANK PIPE SETTING

main77289-06050iGSX30200501-200602

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-AC030iGSX30200501-200707

77310ACAP ASSY, FUEL TANK

main77310-05030iGSX30200501-200707

main77310-48010iGSX30200707-201003

(J)

77316GASKET, FUEL TANK CAP

main77316-06010iGSX30200501-200707

STANT

main77316-16010iGSX30201005

TOYOTA GOUSEI

77340AVALVE ASSY, FUEL CUT OFF W/TUBE

main77340-33020iGSX30200707-201003

77350LID ASSY, FUEL FILLER OPENING

main77350-AC021iGSX30200501-200707

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-53010iGSX30200501-200707

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-AA020iGSX30200501-200707

77391RING, FUEL INLET BOX

main77391-02040iGSX30200501-200707

main77391-02041iGSX30200802-201003

77391ARING, FUEL INLET BOX

main77391-20030iGSX30200501-200707

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-07010iGSX30200501-200707

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-07010iGSX30200501-200707

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-33010iGSX30200501-200707

77611APIN (FOR FUEL TANK BAND)

main90250-08019×2iGSX30200501-200707

77631APROTECTOR, FUEL TANK, LOWER CENTER

main77631-06011iGSX30200501-200707

main77631-06030iGSX30200707-200804

main77631-06031iGSX30200805-201003

main77631-06060iGSX30201009

77643APROTECTOR, FUEL TANK, NO.3

main77643-33010iGSX30200501-200707

main77643-33030iGSX30200902-201003

77651ACUSHION, FUEL TANK, NO.1

main77651-06010iGSX30200501-200707

main77651-33020iGSX30200707-201003

77652ACUSHION, FUEL TANK, NO.2

main77652-06010×7iGSX30200501-200707

main77652-33020×7iGSX30200707-201003

77740CANISTER ASSY, CHARCOAL

main77740-33160iGSX30200501-200707

77754HOSE, CHARCOAL CANISTER OUTLET, NO.1

main77754-33030iGSX30200501-200707

77785HARNESS, FUEL PUMP

main77785-06020iGSX30200501-200707

8401

9008011136

main90080-11136

9008011169

main90080-11169

9008011186

main90080-11186

9008011327

main90080-11327

9008011334

main90080-11334

9008017182

main90080-17182

9008017185

main90080-17185

9011910971

main90119-10971

90119A0267

main90119-A0267

90159A0022

main90159-A0022

9018506002

main90185-06002

90269A0005

main90269-A0005

9046022002

main90460-22002

9046046005

main90460-46005

9046400745

main90464-00745

9046611003

main90466-11003

9046712056

main90467-12056

9046713061

main90467-13061

9613251100

main96132-51100

9613341300

main96133-41300

75 parts on this diagram · 2 diagrams in section
