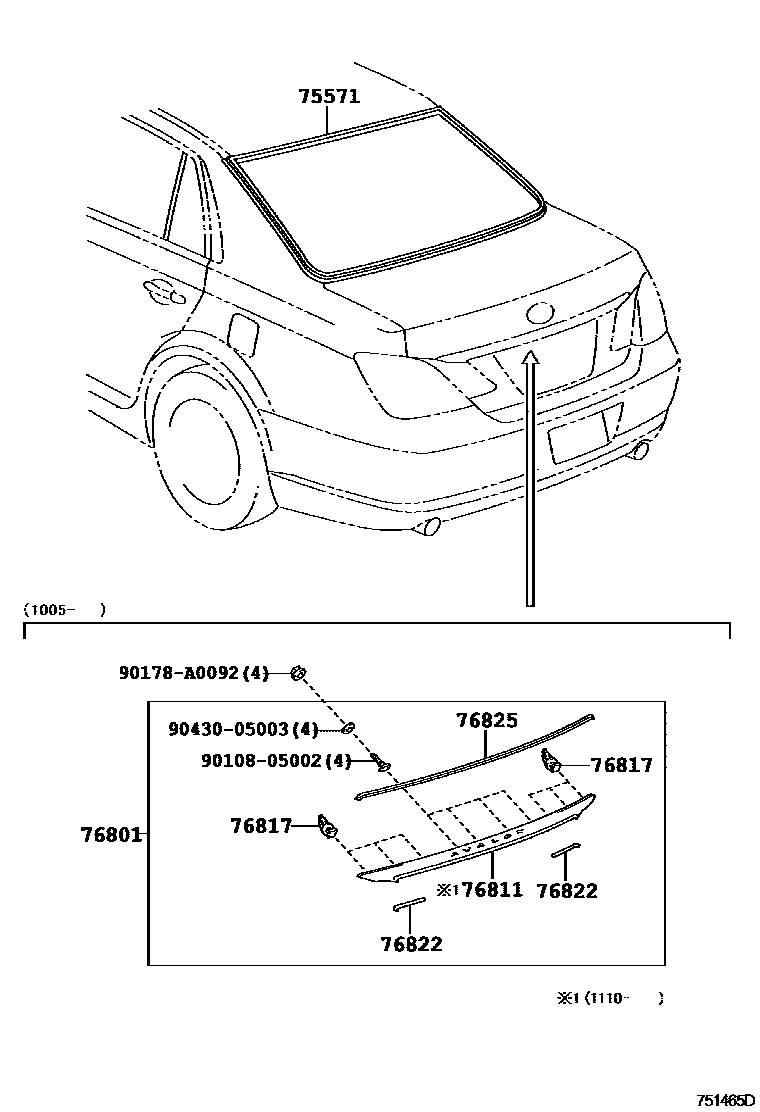

REAR MOULDING

75571MOULDING, BACK WINDOW, OUTSIDE UPPER

main75571-AC020iGSX30200501-200707

76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE

main76801-07030iGSX30..LIMD201005-201109

PLATED

main76801-07031iGSX30..LIMD201110

PLATED

main76801-07040iGSX30..XL201005-201109

PLATED

main76801-07041iGSX30..XL201110

PLATED

76811GARNISH, BACK DOOR, OUTSIDE

main76811-07030iGSX30..LIMD201110

main76811-07040iGSX30..XL201110

76817CLIP, BACK DOOR OUTSIDE GARNISH

main76817-07010×6iGSX30201005

76822PROTECTOR, BACK DOOR GARNISH MOULDING, LOWER

main76822-07010×2iGSX30201005

76825PROTECTOR, BACK DOOR OUTSIDE GARNISH

main76825-07010iGSX30201005

9010805002

main90108-05002

90178A0092

main90178-A0092

9043005003

main90430-05003

9 parts on this diagram · 1 diagram in section
