SIDE MOULDING

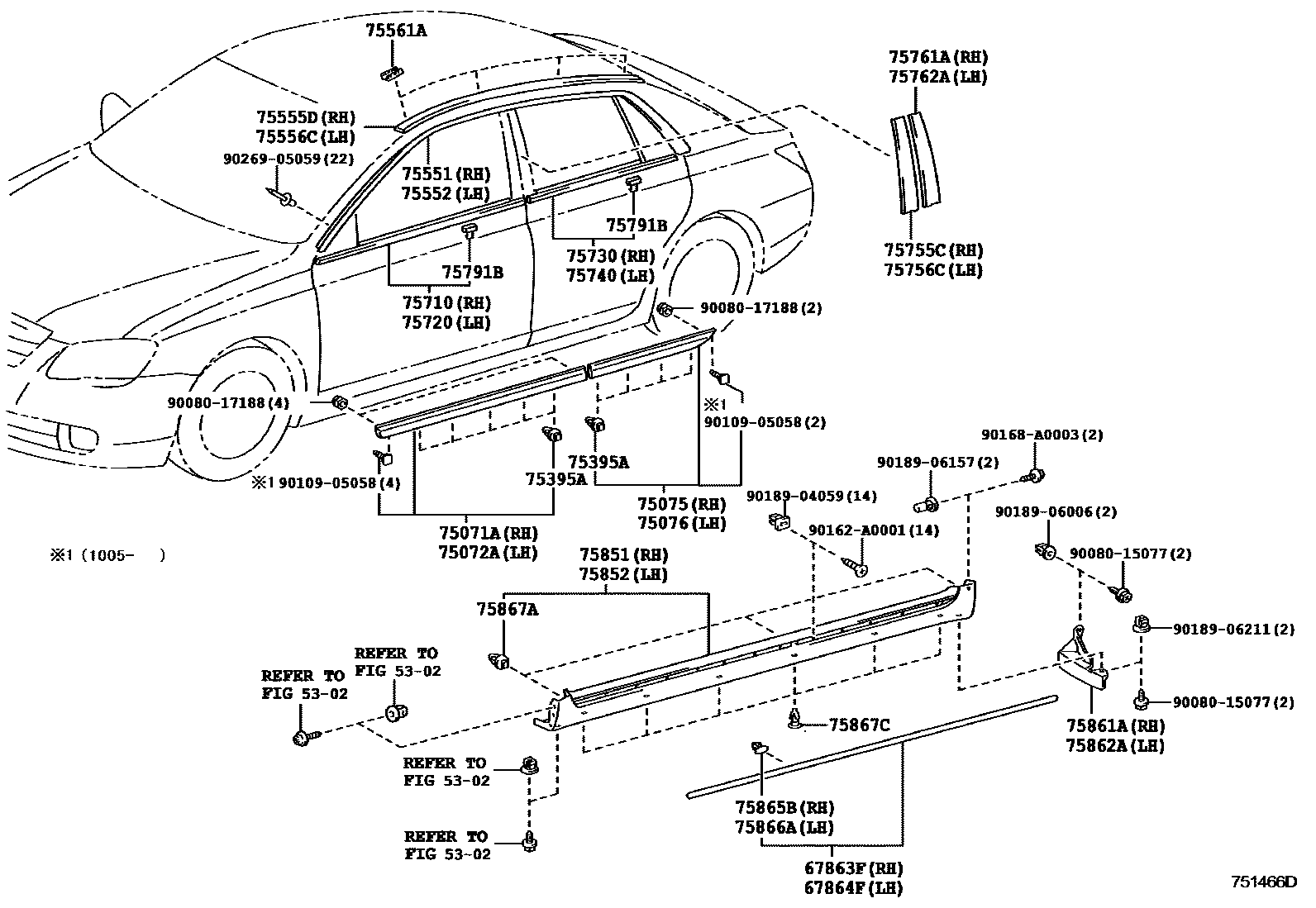

Parts diagram
5302HOOD & FRONT FENDER
→ Go to FIG 53-02
67863FWEATHERSTRIP, FRONT DOOR, NO.2 RH
main67863-AC010i200501-200707
67864FWEATHERSTRIP, FRONT DOOR, NO.2 LH
main67864-AC010i200501-200707
75071AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE RH
main75071-07020-A0i201005-201210
WHITE PEARL CS.,070
main75071-07020-B0i201005-201210
SILVER ME.,1F7
main75071-07020-B1i201005-201210
GRAY ME.,1G3
main75071-07020-C0i201005-201210
BLACK,202
main75071-07020-D0i201005-201210
BLACKISH RED MC.,3R0
main75071-07020-E0i201005-201210
BEIGE ME.,4T8
main75071-07020-E1i201005-201210
DK.BROWN ME.,4U5
main75071-07020-G0i201005-201210
OLIVE M.M.,6T7
main75071-07020-J0i201005-201210
BLUE ME.,8N0
main75071-AC010-A0i200707-201003
WHITE PEARL CS.,070
main75071-AC010-B0i200501-200707
SILVER ME.,1D4
main75071-AC010-B1i200501-200707
GRAY M.M.,1E3
main75071-AC010-B2i200707-201003
SILVER ME.,1F7
main75071-AC010-B3i200707-201003
GRAY ME.,1G3
main75071-AC010-C0i200501-200707
BLACK,202
main75071-AC010-D0i200501-200707
DK RED MC,3Q7
main75071-AC010-E0i200501-200707
BEIGE M. M.,4Q2
main75071-AC010-E1i200808-201003
DK.BROWN ME.,4U5
main75071-AC010-E2i200902-201003
BEIGE ME.,4T8
main75071-AC010-G0i200501-200707
LT.GREEN ME.,6U0
main75071-AC010-J0i200707-200808
DK.BLUE M.M.,8P4
main75071-AC010-J1i200501-200707
BLUE ME.,8R5
75072AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LH
main75072-07020-A0i201005-201210
WHITE PEARL CS.,070
main75072-07020-B0i201005-201210
SILVER ME.,1F7
main75072-07020-B1i201005-201210
GRAY ME.,1G3
main75072-07020-C0i201005-201210
BLACK,202
main75072-07020-D0i201005-201210
BLACKISH RED MC.,3R0
main75072-07020-E0i201005-201210
BEIGE ME.,4T8
main75072-07020-E1i201005-201210
DK.BROWN ME.,4U5
main75072-07020-G0i201005-201210
OLIVE M.M.,6T7
main75072-07020-J0i201005-201210
BLUE ME.,8N0
main75072-AC010-A0i200501-200707
WHITE PEARL CS.,070
main75072-AC010-B0i200501-200707
SILVER ME.,1D4
main75072-AC010-B1i200501-200707
GRAY M.M.,1E3
main75072-AC010-B2i200707-201003
SILVER ME.,1F7
main75072-AC010-B3i200707-201003
GRAY ME.,1G3
main75072-AC010-C0i200501-200707
BLACK,202
main75072-AC010-D0i200707-201003
DK RED MC,3Q7
main75072-AC010-E0i200501-200707
BEIGE M. M.,4Q2
main75072-AC010-E1i200808-201003
DK.BROWN ME.,4U5
main75072-AC010-E2i200902-201003
BEIGE ME.,4T8
main75072-AC010-G0i200707-201003
LT.GREEN ME.,6U0
main75072-AC010-J0i200707-200808
DK.BLUE M.M.,8P4
main75072-AC010-J1i200707-201003
BLUE ME.,8R5
75075MOULDING SUB-ASSY, REAR DOOR, OUTSIDE RH
main75075-07020-A0i201005-201210
WHITE PEARL CS.,070
main75075-07020-B0i201005-201210
SILVER ME.,1F7
main75075-07020-B1i201005-201210
GRAY ME.,1G3
main75075-07020-C0i201005-201210
BLACK,202
main75075-07020-D0i201005-201210
BLACKISH RED MC.,3R0
main75075-07020-E0i201005-201210
BEIGE ME.,4T8
main75075-07020-E1i201005-201210
DK.BROWN ME.,4U5
main75075-07020-G0i201005-201210
OLIVE M.M.,6T7
main75075-07020-J0i201005-201210
BLUE ME.,8N0
main75075-AC010-A0i200501-200707
WHITE PEARL CS.,070
main75075-AC010-B0i200501-200707
SILVER ME.,1D4
main75075-AC010-B1i200501-200707
GRAY M.M.,1E3
main75075-AC010-B2i200707-201003
SILVER ME.,1F7
main75075-AC010-B3i200707-201003
GRAY ME.,1G3
main75075-AC010-C0i200501-200707
BLACK,202
main75075-AC010-D0i200707-201003
DK RED MC,3Q7
main75075-AC010-E0i200707-200902
BEIGE M. M.,4Q2
main75075-AC010-E1i200808-201003
DK.BROWN ME.,4U5
main75075-AC010-E2i200902-201003
BEIGE ME.,4T8
main75075-AC010-G0i200501-200707
LT.GREEN ME.,6U0
main75075-AC010-J0i200707-200808
DK.BLUE M.M.,8P4
main75075-AC010-J1i200501-200707
BLUE ME.,8R5
75076MOULDING SUB-ASSY, REAR DOOR, OUTSIDE LH
main75076-07020-A0i201005-201210
WHITE PEARL CS.,070
main75076-07020-B0i201005-201210
SILVER ME.,1F7
main75076-07020-B1i201005-201210
GRAY ME.,1G3
main75076-07020-C0i201005-201210
BLACK,202
main75076-07020-D0i201005-201210
BLACKISH RED MC.,3R0
main75076-07020-E0i201005-201210
BEIGE ME.,4T8
main75076-07020-E1i201005-201210
DK.BROWN ME.,4U5
main75076-07020-G0i201005-201210
OLIVE M.M.,6T7
main75076-07020-J0i201005-201210
BLUE ME.,8N0
main75076-AC010-A0i200501-200707
WHITE PEARL CS.,070
main75076-AC010-B0i200501-200707
SILVER ME.,1D4
main75076-AC010-B1i200501-200707
GRAY M.M.,1E3
main75076-AC010-B2i200707-201003
SILVER ME.,1F7
main75076-AC010-B3i200707-201003
GRAY ME.,1G3
main75076-AC010-C0i200501-200707
BLACK,202
main75076-AC010-D0i200501-200707
DK RED MC,3Q7
main75076-AC010-E0i200707-200902
BEIGE M. M.,4Q2
main75076-AC010-E1i200808-201003
DK.BROWN ME.,4U5
main75076-AC010-E2i200902-201003
BEIGE ME.,4T8
main75076-AC010-G0i200707-201003
LT.GREEN ME.,6U0
main75076-AC010-J0i200707-200808
DK.BLUE M.M.,8P4
main75076-AC010-J1i200707-201003
BLUE ME.,8R5
75395ACLIP, OUTSIDE MOULDING, NO.1
main75867-AC020×18i200707-201003
75551MOULDING, ROOF DRIP SIDE FINISH, RH
main75505-07010i201005
NO PAINT REQ.
main75505-AC010i200501-200707
NO PAINT REQ.
75552MOULDING, ROOF DRIP SIDE FINISH, LH
main75506-07010i201005
NO PAINT REQ.
main75506-AC010i200501-200707
NO PAINT REQ.
75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH
main75555-AC020-A0i201005-201011
WHITE PEARL CS.,070
main75555-AC020-B0i200501-200707
SILVER ME.,1D4
main75555-AC020-B1i200501-200707
GRAY M.M.,1E3
main75555-AC020-B2i200707-201003
SILVER ME.,1F7
main75555-AC020-B3i200707-201003
GRAY ME.,1G3
main75555-AC020-C0i200501-200707
BLACK,202
main75555-AC020-D0i200501-200707
DK RED MC,3Q7
main75555-AC020-D1i201005-201011
BLACKISH RED MC.,3R0
main75555-AC020-E0i200501-200707
BEIGE M. M.,4Q2
main75555-AC020-E1i201005-201011
DK.BROWN ME.,4U5
main75555-AC020-E2i200902-201003
BEIGE ME.,4T8
main75555-AC020-G0i200707-201003
LT.GREEN ME.,6U0
main75555-AC020-G1i201005-201011
OLIVE M.M.,6T7
main75555-AC020-J0i200707-200808
DK.BLUE M.M.,8P4
main75555-AC020-J1i200707-201003
BLUE ME.,8R5
main75555-AC020-J2i201005-201011
BLUE ME.,8N0
main75555-AC021-A0i201012-201210
WHITE PEARL CS.,070
main75555-AC021-B2i201012-201210
SILVER ME.,1F7
main75555-AC021-B3i201012-201210
GRAY ME.,1G3
main75555-AC021-C0i201012-201210
BLACK,202
main75555-AC021-D1i201012-201210
BLACKISH RED MC.,3R0
main75555-AC021-E1i201012-201210
DK.BROWN ME.,4U5
main75555-AC021-E2i201012-201210
BEIGE ME.,4T8
main75555-AC021-G1i201012-201210
OLIVE M.M.,6T7
main75555-AC021-J2i201012-201210
BLUE ME.,8N0
75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH
main75556-AC020-A0i200501-200707
WHITE PEARL CS.,070
main75556-AC020-B0i200501-200707
SILVER ME.,1D4
main75556-AC020-B1i200501-200707
GRAY M.M.,1E3
main75556-AC020-B2i201005-201011
SILVER ME.,1F7
main75556-AC020-B3i200707-201003
GRAY ME.,1G3
main75556-AC020-C0i200707-201003
BLACK,202
main75556-AC020-D0i200501-200707
DK RED MC,3Q7
main75556-AC020-D1i201005-201011
BLACKISH RED MC.,3R0
main75556-AC020-E0i200707-200902
BEIGE M. M.,4Q2
main75556-AC020-E1i201005-201011
DK.BROWN ME.,4U5
main75556-AC020-E2i201005-201011
BEIGE ME.,4T8
main75556-AC020-G0i200707-201003
LT.GREEN ME.,6U0
main75556-AC020-G1i201005-201011
OLIVE M.M.,6T7
main75556-AC020-J0i200707-200808
DK.BLUE M.M.,8P4
main75556-AC020-J1i200707-201003
BLUE ME.,8R5
main75556-AC020-J2i201005-201011
BLUE ME.,8N0
main75556-AC021-A0i201012-201210
WHITE PEARL CS.,070
main75556-AC021-B2i201012-201210
SILVER ME.,1F7
main75556-AC021-B3i201012-201210
GRAY ME.,1G3
main75556-AC021-C0i201012-201210
BLACK,202
main75556-AC021-D1i201012-201210
BLACKISH RED MC.,3R0
main75556-AC021-E1i201012-201210
DK.BROWN ME.,4U5
main75556-AC021-E2i201012-201210
BEIGE ME.,4T8
main75556-AC021-G1i201012-201210
OLIVE M.M.,6T7
main75556-AC021-J2i201012-201210
BLUE ME.,8N0
75561ACLIP, ROOF DRIP SIDE FINISH MOULDING
main75561-33030×4i200501-200707
75710MOULDING ASSY, FRONT DOOR BELT, RH
main75710-AC020i200501-200707
75720MOULDING ASSY, FRONT DOOR BELT, LH
main75720-AC020i200501-200707
75730MOULDING ASSY, REAR DOOR BELT, RH
main75730-AC020i200501-200707
75740MOULDING ASSY, REAR DOOR BELT, LH
main75740-AC020i200501-200707
75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH
main75755-AC010i200501-200707
75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH
main75756-AC010i200501-200707
75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH
main75761-AC010i200501-200707
NO PAINT REQ.
75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH
main75762-AC010i200501-200707
NO PAINT REQ.
75791BCLIP, BELT MOULDING SIDE
main68212-AC010×24i200501-200707
75851MOULDING, ROCKER PANEL, RH
main75851-07020-A0i201005-201104
WHITE PEARL CS.,070
main75851-07020-B0i201005-201104
SILVER ME.,1F7
main75851-07020-B1i201005-201104
GRAY ME.,1G3
main75851-07020-C0i201005-201104
BLACK,202
main75851-07020-D0i201005-201104
BLACKISH RED MC.,3R0
main75851-07020-E0i201005-201104
BEIGE ME.,4T8
main75851-07020-E1i201005-201104
DK.BROWN ME.,4U5
main75851-07020-G0i201005-201104
OLIVE M.M.,6T7
main75851-07020-J0i201005-201104
BLUE ME.,8N0
main75851-07050i201104
main75851-AC030-A0i200501-200707
WHITE PEARL CS.,070
main75851-AC030-B0i200501-200707
SILVER ME.,1D4
main75851-AC030-B1i200501-200707
GRAY M.M.,1E3
main75851-AC030-B2i200707-201003
SILVER ME.,1F7
main75851-AC030-B3i200707-201003
GRAY ME.,1G3
main75851-AC030-C0i200501-200707
BLACK,202
main75851-AC030-D0i200707-201003
DK RED MC,3Q7
main75851-AC030-E0i200501-200707
BEIGE M. M.,4Q2
main75851-AC030-E1i200808-201003
DK.BROWN ME.,4U5
main75851-AC030-E2i200902-201003
BEIGE ME.,4T8
main75851-AC030-G0i200707-201003
LT.GREEN ME.,6U0
main75851-AC030-J0i200501-200707
DK.BLUE M.M.,8P4
main75851-AC030-J1i200707-201003
BLUE ME.,8R5
75852MOULDING, ROCKER PANEL, LH
main75852-07020-A0i201005-201104
WHITE PEARL CS.,070
main75852-07020-B0i201005-201104
SILVER ME.,1F7
main75852-07020-B1i201005-201104
GRAY ME.,1G3
main75852-07020-C0i201005-201104
BLACK,202
main75852-07020-D0i201005-201104
BLACKISH RED MC.,3R0
main75852-07020-E0i201005-201104
BEIGE ME.,4T8
main75852-07020-E1i201005-201104
DK.BROWN ME.,4U5
main75852-07020-G0i201005-201104
OLIVE M.M.,6T7
main75852-07020-J0i201005-201104
BLUE ME.,8N0
main75852-07050i201104
main75852-AC020-A0i200707-201003
WHITE PEARL CS.,070
main75852-AC020-B0i200501-200707
SILVER ME.,1D4
main75852-AC020-B1i200501-200707
GRAY M.M.,1E3
main75852-AC020-B2i200707-201003
SILVER ME.,1F7
main75852-AC020-B3i200707-201003
GRAY ME.,1G3
main75852-AC020-C0i200501-200707
BLACK,202
main75852-AC020-D0i200501-200707
DK RED MC,3Q7
main75852-AC020-E0i200707-200902
BEIGE M. M.,4Q2
main75852-AC020-E1i200808-201003
DK.BROWN ME.,4U5
main75852-AC020-E2i200902-201003
BEIGE ME.,4T8
main75852-AC020-G0i200707-201003
LT.GREEN ME.,6U0
main75852-AC020-J0i200501-200707
DK.BLUE M.M.,8P4
main75852-AC020-J1i200501-200707
BLUE ME.,8R5
75861APROTECTOR, ROCKER PANEL MOULDING, NO.1
main75861-AC020i200707-201003
75862APROTECTOR, ROCKER PANEL MOULDING, NO.2
main75862-AC010i200501-200707
75865BRETAINER, ROCKER PANEL MOULDING, NO.2
main75865-AC010×13i200501-200707
75866ARETAINER, ROCKER PANEL MOULDING
main75866-AC020×13i200501-200707
75867ACLIP, ROCKER PANEL MOULDING
main75867-AC020×6i200501-200707
75867CCLIP, ROCKER PANEL MOULDING
main75867-06030×12i201111
main75867-30110×12i200501-200601
main75867-30120×12i200602-200707
9008015077
main90080-15077
9008017188
main90080-17188
9010905058
main90109-05058
90162A0001
main90162-A0001
90168A0003
main90168-A0003
9018904059
main90189-04059
9018906006
main90189-06006
9018906157
main90189-06157
9018906211
main90189-06211
9026905059
main90269-05059

40 parts on this diagram · 1 diagram in section

SIDE MOULDING — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
