REAR SEAT & SEAT TRACK

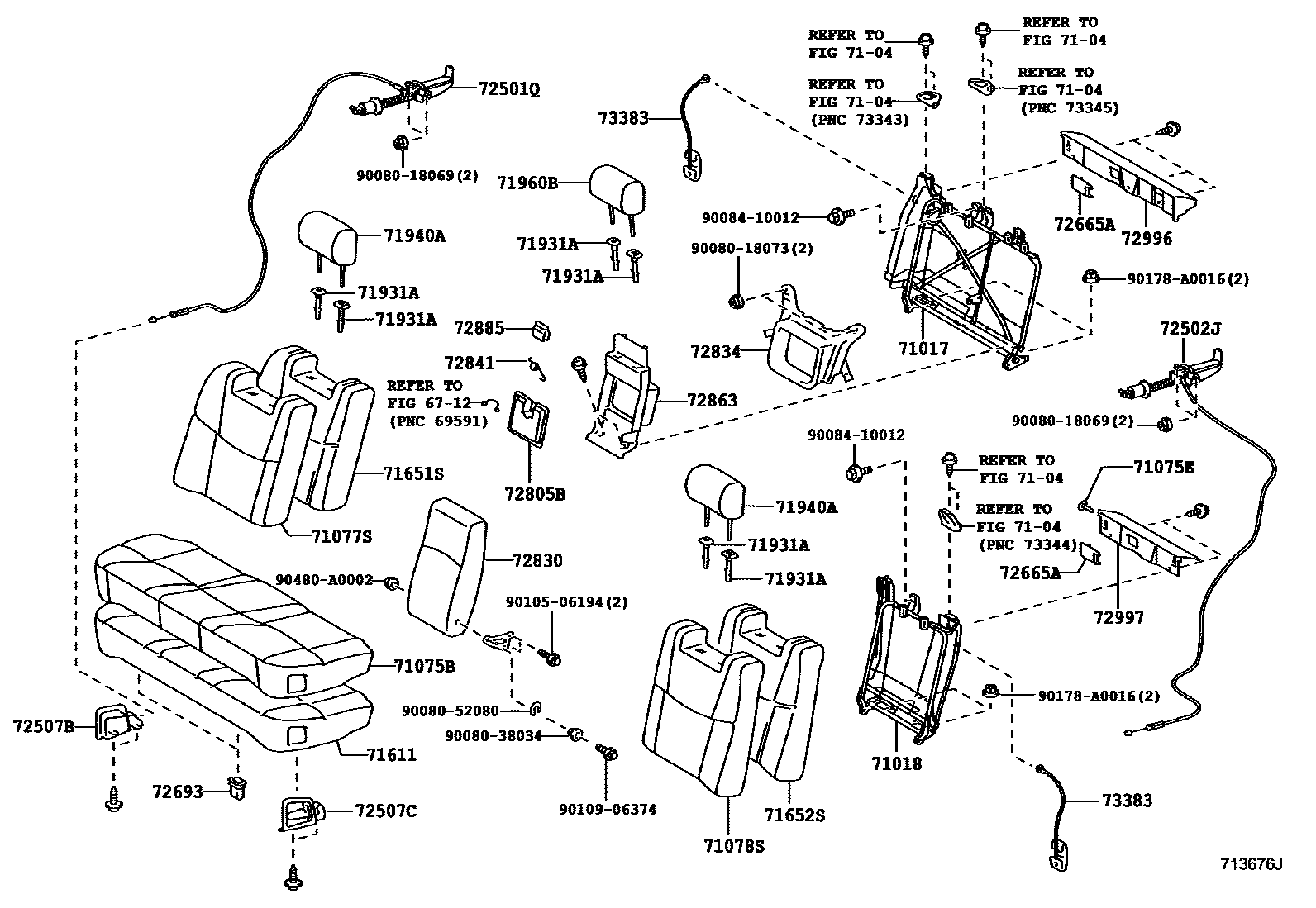

Parts diagram
6712
71017FRAME SUB-ASSY, REAR SEATBACK, RH
main71017-AC040i200501-201210
71018FRAME SUB-ASSY, REAR SEATBACK, LH
main71018-AC010i200501-201210
7104
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
main71075-07080-A0i201005-201210
IVORY,TRIM0#
main71075-07080-B0i201005-201210
LT. GRAY,TRIM1#
main71075-07080-D0i201005-201210
CHAMBORD,TRIM2#
main71075-07090-A0i201005-201210
IVORY,TRIM0#
main71075-07090-B0i201005-201210
LT. GRAY,TRIM1#
main71075-AC090-A1i200501-201003
IVORY,TRIM0#
main71075-AC090-B2i200501-201003
LT. GRAY,TRIM1#
main71075-AC110-A1i200501-201003
IVORY,TRIM0#
main71075-AC110-B3i200501-200808
GRAY,TRIM1#
main71075-AC110-B3i200808-201003
GRAY,TRIM17
main71075-AC110-B4i200808-201003
DK GRAY,TRIM18
71075ECLIP(FOR REAR SEAT)
main90467-07076-A0i200506-201210
IVORY,TRIM0#
sub90467-07041
sub90467-07076
sub90467-A0016
main90467-07076-B7i200808-201003
DK.GRAY,TRIM18
sub90467-07041
sub90467-07076
sub90467-A0016
main90467-07076-C0i201005-201210
BLACK,TRIM2#
sub90467-07041
sub90467-07076
sub90467-A0016
main90467-07076-P1i200808-201003
LT.GRAY,TRIM17
sub90467-07041
sub90467-07076
sub90467-A0016
main90467-07076-P1i200506-201210
LT.GRAY,TRIM1#
sub90467-07041
sub90467-07076
sub90467-A0016
main90467-07076-P6i200506-201003
GRAY,TRIM1#
sub90467-07041
sub90467-07076
sub90467-A0016
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
main71077-07070-A0i201005-201210
IVORY,TRIM0#
main71077-07070-B0i201005-201210
LT. GRAY,TRIM1#
main71077-07070-D0i201005-201210
CHAMBORD,TRIM2#
main71077-07080-A0i201005-201210
IVORY,TRIM0#
main71077-07080-B1i201005-201210
LT. GRAY,TRIM1#
main71077-AC150-A2i200501-201003
IVORY,TRIM0#
main71077-AC150-B5i200501-201003
GRAY,TRIM1#
main71077-AC170-A1i200501-201003
IVORY,TRIM0#
main71077-AC170-B3i200501-200808
GRAY,TRIM1#
main71077-AC170-B3i200808-201003
GRAY,TRIM17
main71077-AC170-B4i200808-201003
DK GRAY,TRIM18
71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71078-07030-A0i201005-201210
IVORY,TRIM0#
main71078-07030-B0i201005-201210
LT. GRAY,TRIM1#
main71078-07030-D0i201005-201210
CHAMBORD,TRIM2#
main71078-07040-A0i201005-201210
IVORY,TRIM0#
main71078-07040-B1i201005-201210
LT. GRAY,TRIM1#
main71078-AC010-A2i200501-201003
IVORY,TRIM0#
main71078-AC010-B5i200501-201003
GRAY,TRIM1#
main71078-AC030-A1i200501-201003
IVORY,TRIM0#
main71078-AC030-B3i200808-201003
GRAY,TRIM17
main71078-AC030-B3i200501-200808
GRAY,TRIM1#
main71078-AC030-B4i200808-201003
DK GRAY,TRIM18
71611PAD, REAR SEAT CUSHION
main71503-AC040i200501-201210
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
main71651-AC010i200501-201210
71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71652-AC010i200501-201210
71931ASUPPORT, REAR SEAT HEADREST
main71930-44020-A0i200808-201210
W(LOCK),IVORY,TRIM0#
sub71930-44020
sub71930-02370
main71930-44020-B0i200808-201003
W(LOCK),DK.GRAY,TRIM18
sub71930-44020
sub71930-02370
main71930-44020-B7i200808-201003
W(LOCK),GRAY,TRIM1#
sub71930-44020
sub71930-02370
main71930-44020-B8i201005-201210
W(LOCK),LT.GRAY,TRIM1#
sub71930-44020
sub71930-02370
main71930-44020-B8i200808-201003
W(LOCK),LT.GRAY,TRIM17
sub71930-44020
sub71930-02370
main71930-44020-C0i201005-201210
W(LOCK),BLACK,TRIM2#
sub71930-44020
sub71930-02370
main71930-47010-A0i200501-200808
W(LOCK),IVORY,TRIM0#
sub71930-47010
sub71930-44020
main71930-47010-B9i200501-200707
W(LOCK),GRAY,TRIM16
sub71930-47010
sub71930-44020
main71930-47010-B9i200707-200808
W(LOCK),GRAY,TRIM1#
sub71930-47010
sub71930-44020
main71930-47010-P0i200501-200808
W(LOCK),LT.GRAY,TRIM1#
sub71930-47010
sub71930-44020
main71930-47010-P0i200501-200707
W(LOCK),LT.GRAY,TRIM17
sub71930-47010
sub71930-44020
main71931-47010-A0i200501-201210
W/O(LOCK),IVORY,TRIM0#
sub71931-47010
sub71931-42020
main71931-47010-B2i200808-201003
W/O(LOCK),DK.GRAY,TRIM18
sub71931-47010
sub71931-42020
main71931-47010-C0i201005-201210
W/O(LOCK),BLACK,TRIM2#
sub71931-47010
sub71931-42020
main71931-47010-P2i200707-201003
W/O(LOCK),GRAY,TRIM1#
sub71931-47010
sub71931-42020
main71931-47010-P2i200501-200707
W/O(LOCK),GRAY,TRIM16
sub71931-47010
sub71931-42020
main71931-47010-P3i200501-201003
W/O(LOCK),LT.GRAY,TRIM17
sub71931-47010
sub71931-42020
main71931-47010-P3i200501-201210
W/O(LOCK),LT.GRAY,TRIM1#
sub71931-47010
sub71931-42020
71940AHEADREST ASSY, REAR SEAT
main71940-07050-A1i201005-201008
IVORY,TRIM0#
sub71940-07051
main71940-07050-B1i201005-201008
LT. GRAY,TRIM1#
sub71940-07051
main71940-07051-A1i201009-201210
IVORY,TRIM0#
main71940-07051-B1i201009-201210
LT. GRAY,TRIM1#
main71940-07070-A0i201005-201008
IVORY,TRIM0#
sub71940-07071
main71940-07070-B0i201005-201008
LT.GRAY,TRIM1#
sub71940-07071
main71940-07070-C0i201005-201008
BLACK,TRIM2#
sub71940-07071
main71940-07071-A0i201009-201210
IVORY,TRIM0#
main71940-07071-B0i201009-201210
LT.GRAY,TRIM1#
main71940-07071-C0i201009-201210
BLACK,TRIM2#
main71940-AC090-A0i200501-201003
IVORY,TRIM0#
main71940-AC090-B0i200501-201003
GRAY,TRIM1#
main71940-AC100-A0i200501-201003
IVORY,TRIM0#
main71940-AC100-B0i200808-201003
LT.GRAY,TRIM17
main71940-AC100-B0i200501-200808
LT.GRAY,TRIM1#
main71940-AC100-B1i200808-201003
DK.GRAY,TRIM18
71960BHEADREST ASSY, REAR SEAT, CENTER
main71940-07081-A0i201005-201210
IVORY,TRIM0#
main71940-07081-B0i201005-201210
LT.GRAY,TRIM1#
main71940-07081-C0i201005-201210
BLACK,TRIM2#
main71940-07110-A0i201005-201210
IVORY,TRIM0#
main71940-07110-B0i201005-201210
LT. GRAY,TRIM1#
main71940-AC110-A0i200501-201003
IVORY,TRIM0#
main71940-AC110-B0i200501-201003
GRAY,TRIM1#
main71940-AC120-A0i200501-201003
IVORY,TRIM0#
main71940-AC120-B0i200501-200808
LT.GRAY,TRIM1#
main71940-AC120-B0i200808-201003
LT.GRAY,TRIM17
main71940-AC120-B1i200808-201003
DK.GRAY,TRIM18
72501QARM SUB-ASSY, NO.1 SEAT RECLINING ADJUSTER, UPPER NO.2 RH
main72505-AC010i200501-201003
72502JARM SUB-ASSY NO.1 SEAT RECLINING ADJUSTER, UPPER NO.2 LH
main72506-AC010i200501-201003
72507BHANDLE SUB-ASSY, RECLINING RELEASE, RH
main72507-AC010-A0i200501-201210
IVORY,TRIM0#
main72507-AC010-B0i200501-201003
LT.GRAY,TRIM17
main72507-AC010-B0i200501-201210
LT.GRAY,TRIM1#
main72507-AC010-B1i200501-200707
GRAY,TRIM16
main72507-AC010-B1i200707-201003
GRAY,TRIM1#
main72507-AC010-B2i200808-201003
DK.GRAY,TRIM18
main72507-AC010-C0i201005-201210
BLACK,TRIM2#
72507CHANDLE SUB-ASSY, RECLINING RELEASE, LH
main72507-AC020-A0i200501-201210
IVORY,TRIM0#
main72507-AC020-B0i200501-201003
LT.GRAY,TRIM17
main72507-AC020-B0i200501-201210
LT.GRAY,TRIM1#
main72507-AC020-B1i200501-200707
GRAY,TRIM16
main72507-AC020-B1i200707-201003
GRAY,TRIM1#
main72507-AC020-B2i200808-201003
DK.GRAY,TRIM18
main72507-AC020-C0i201005-201210
BLACK,TRIM2#
72665ACAP(FOR REAR SEATBACK LOCK COVER)
main73949-AC010-A0i200501-201210
IVORY,TRIM0#
main73949-AC010-B0i200501-201210
LT.GRAY,TRIM1#
main73949-AC010-B0i200501-201003
LT.GRAY,TRIM17
main73949-AC010-B1i200501-200707
GRAY,TRIM16
main73949-AC010-B1i200707-201003
GRAY,TRIM1#
main73949-AC010-B2i200808-201003
DK.GRAY,TRIM18
main73949-AC010-C0i201005-201210
BLACK,TRIM2#
72693HOOK, REAR SEAT CUSHION LOCK
main72693-12080i200501-201003
72805BDOOR SUB-ASSY, REAR SEAT CENTER ARMREST
main72833-AC010-A0i201005-201210
IVORY,TRIM0#
main72833-AC010-B1i201005-201210
LT.GRAY,TRIM1#
main72833-AC010-C0i201005-201210
BLACK,TRIM2#
main72833-AC050-A0i200501-201003
IVORY,TRIM0#
main72833-AC050-B0i200808-201003
LT.GRAY,TRIM17
main72833-AC050-B0i200501-200808
LT.GRAY,TRIM1#
main72833-AC050-B1i200808-201003
DK.GRAY,TRIM18
main72833-AC050-B2i200501-201003
GRAY,TRIM1#
72830ARMREST ASSY, REAR SEAT, CENTER
main72830-07040-A0i200702-200707
IVORY,TRIM0#
main72830-07040-A2i200707-201003
IVORY,TRIM0#
main72830-07040-B0i200702-200707
LT.GRAY,TRIM1#
main72830-07040-B4i200707-200808
LT.GRAY,TRIM1#
main72830-07040-B4i200808-201003
LT.GRAY,TRIM17
main72830-07040-B6i200808-201003
DK GRAY,TRIM18
main72830-07050-A0i201005-201210
IVORY,TRIM0#
main72830-07050-B0i201005-201210
LT GRAY,TRIM1#
main72830-07050-C0i201005-201210
BLACK,TRIM2#
main72830-07060-A0i201005-201210
IVORY,TRIM0#
main72830-07060-B0i201005-201210
LT. GRAY,TRIM1#
main72830-AC100-A1i200501-201003
IVORY,TRIM0#
main72830-AC100-B2i200501-201003
LT. GRAY,TRIM1#
main72830-AC120-A1i200501-200702
IVORY,TRIM0#
main72830-AC120-B2i200501-200702
LT. GRAY,TRIM1#
72834PANEL, REAR SEAT CENTER ARMREST, NO.2
main72834-AC010i200501-201003
72841SPRING, REAR SEAT CENTER ARMREST, NO.1
main72841-07010i201005-201210
main72841-AC010i200501-201003
72863BOX, REAR SEAT CENTER ARMREST
main72863-AC020-A0i200501-201210
IVORY,TRIM0#
main72863-AC020-B0i200501-201210
LT.GRAY,TRIM1#
main72863-AC020-B0i200808-201003
LT.GRAY,TRIM17
main72863-AC020-B1i200501-201003
GRAY,TRIM1#
main72863-AC020-B2i200808-201003
DK.GRAY,TRIM18
main72863-AC020-C0i201005-201210
BLACK,TRIM2#
72885HANDLE, REAR SEAT ARMREST
main72885-33010-A1i201005-201210
IVORY,TRIM0#
main72885-33010-B1i201005-201210
LT.GRAY,TRIM1#
main72885-33010-C0i201005-201210
BLACK,TRIM2#
main72885-AC030-A0i200501-201003
IVORY,TRIM0#
main72885-AC030-B0i200501-200808
LT.GRAY,TRIM1#
main72885-AC030-B0i200808-201003
LT.GRAY,TRIM17
main72885-AC030-B1i200808-201003
DK.GRAY,TRIM18
main72885-AC030-B2i200501-201003
GRAY,TRIM1#
72996COVER, REAR SEATBACK, RH
main72996-AC040-A0i200501-201210
IVORY,TRIM0#
main72996-AC040-B0i200501-201003
LT.GRAY,TRIM17
main72996-AC040-B0i200501-201210
LT.GRAY,TRIM1#
main72996-AC040-B1i200707-201003
GRAY,TRIM1#
main72996-AC040-B1i200501-200707
GRAY,TRIM16
main72996-AC040-B2i200808-201003
DK.GRAY,TRIM18
main72996-AC040-C0i201005-201210
BLACK,TRIM2#
72997COVER, REAR SEATBACK, LH
main72997-AC020-A0i200501-201210
IVORY,TRIM0#
main72997-AC020-B0i200501-201003
LT.GRAY,TRIM17
main72997-AC020-B0i200501-201210
LT.GRAY,TRIM1#
main72997-AC020-B1i200707-201003
GRAY,TRIM1#
main72997-AC020-B1i200501-200707
GRAY,TRIM16
main72997-AC020-B2i200808-201003
DK.GRAY,TRIM18
main72997-AC020-C0i201005-201210
BLACK,TRIM2#
73383HOOK, RR SEAT BELT
main73383-AA020i200501-201210
9008018069
main90080-18069
9008018073
main90080-18073
9008038034
main90080-38034
9008052080
main90080-52080
9008410012
main90084-10012
9010506194
main90105-06194
9010906374
main90109-06374
90178A0016
main90178-A0016
90480A0002
main90480-A0002

38 parts on this diagram · 1 diagram in section
