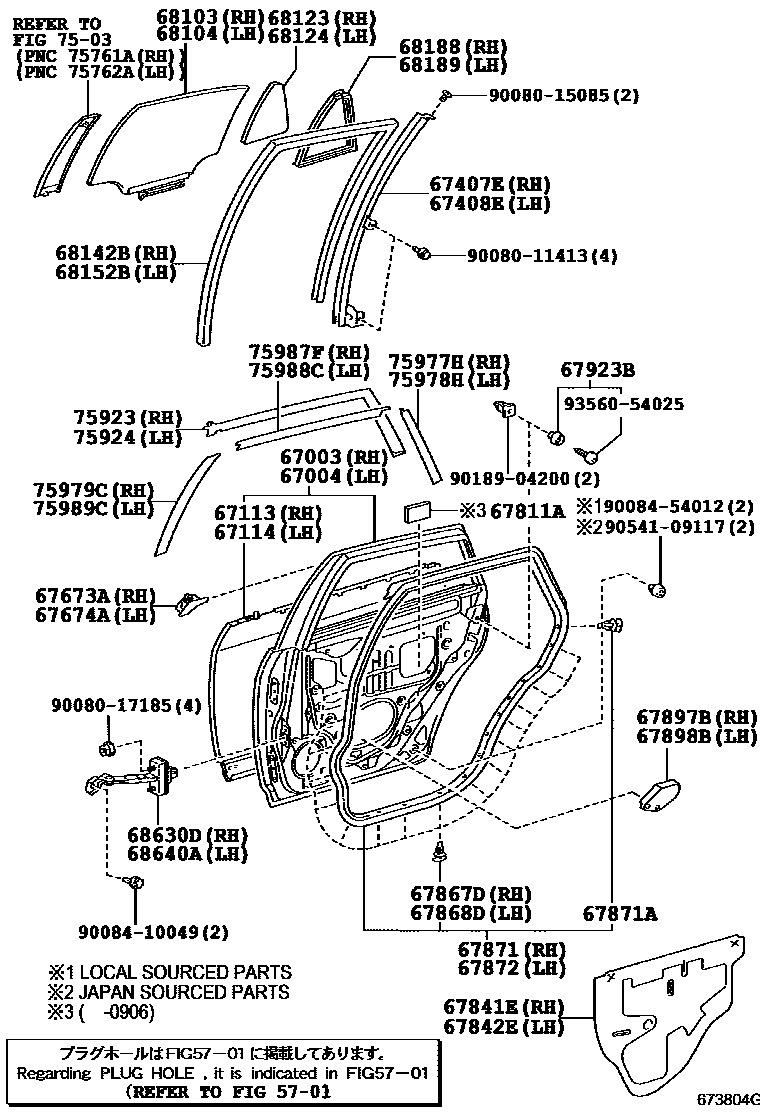

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

5701HOLE PLUG

→ Go to FIG 57-01

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-AC030iGSX30200707-201003

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-AC040iGSX30200501-200707

67113PANEL, REAR DOOR, OUTER RH

main67113-AC020iGSX30200501-200707

67114PANEL, REAR DOOR, OUTER LH

main67114-AC020iGSX30200501-200707

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-AC030iGSX30200501-200607

main67407-AC031iGSX30200608-200707

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-AC030iGSX30200501-200607

main67408-AC031iGSX30200608-200707

67673AGARNISH, REAR DOOR FRAME, RH

main67673-AC020iGSX30200501-200707

67674AGARNISH, REAR DOOR FRAME, LH

main67674-AC020iGSX30200501-200707

67811APAD, REAR DOOR SILENCER

main67811-AA040×2iGSX30200501-200707

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-07020iGSX30200805-201003

main67841-07021iGSX30201108

main67841-AC020iGSX30200501-200707

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-07020iGSX30200805-201003

main67842-07021iGSX30201108

main67842-AC020iGSX30200707-200805

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150×17iGSX30201005

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67868-12050×17iGSX30200501-200707

67871WEATHERSTRIP, REAR DOOR, RH

main67871-AC030iGSX30200501-200707

67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)

main67867-12150×2iGSX30201005

67872WEATHERSTRIP, REAR DOOR, LH

main67872-AC030iGSX30200501-200707

67897BCUSHION, REAR DOOR, RH

main67897-AC010iGSX30200501-200707

67898BCUSHION, REAR DOOR, LH

main67898-AC010iGSX30200501-200707

67923BCUSHION, REAR DOOR STIFFENER, NO.1

main67923-24030×2iGSX30200501-200707

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-AC050iGSX30200501-200707

*HSEA,T=4.0,GREEN

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-AC050iGSX30200501-200707

*HSEA,T=4.0,GREEN

68123GLASS, REAR DOOR WINDOW, RH

main68011-AC010iGSX30200501-200607

*HSEA,T=4.0,GREEN

main68123-07010iGSX30200608-200707

*HSEA,T=4.0,GREEN

68124GLASS, REAR DOOR WINDOW, LH

main68012-AC010iGSX30200501-200607

*HSEA,T=4.0,GREEN

main68124-07010iGSX30200608-200707

*HSEA,T=4.0,GREEN

68142BRUN, REAR DOOR WINDOW, RH

main68142-AC030iGSX30200501-200707

68152BRUN, REAR DOOR WINDOW, LH

main68152-AC030iGSX30200501-200707

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-07010iGSX30200608-200707

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-07010iGSX30200608-200707

68630DCHECK ASSY, REAR DOOR, RH

main68630-AC020iGSX30200501-200702

main68630-AC021iGSX30200703-200707

main68630-AC022iGSX30200801-201003

68640ACHECK ASSY, REAR DOOR, LH

main68640-AC020iGSX30200501-200702

main68640-AC021iGSX30200703-200707

main68640-AC022iGSX30200801-201003

7503SIDE MOULDING

→ Go to FIG 75-03

75923TAPE, BLACK OUT, NO.2 RH

main75923-AC010iGSX30200501-200707

75924TAPE, BLACK OUT, NO.2 LH

main75924-AC010iGSX30200501-200707

75977HSTRIPE, REAR DOOR OUTSIDE, LOWER RH

main75977-AC010iGSX30200501-200707

75978HSTRIPE, REAR DOOR OUTSIDE, LOWER LH

main75978-AC010iGSX30200501-200707

75979CSTRIPE, REAR DOOR, OUTSIDE UPPER RH

main75979-AC010iGSX30200501-200707

75987FSTRIPE, REAR DOOR, OUTSIDE, RH

main75987-AC010iGSX30200501-200707

75988CSTRIPE, REAR DOOR, OUTSIDE LH

main75988-AC010iGSX30200501-200707

75989CSTRIPE, REAR DOOR, OUTSIDE UPPER LH

main75989-AC010iGSX30200501-200707

9008011413

main90080-11413

9008015085

main90080-15085

9008017185

main90080-17185

9008410049

main90084-10049

9008454012

main90084-54012

9018904200

main90189-04200

9054109117

main90541-09117

9356054025

main93560-54025
