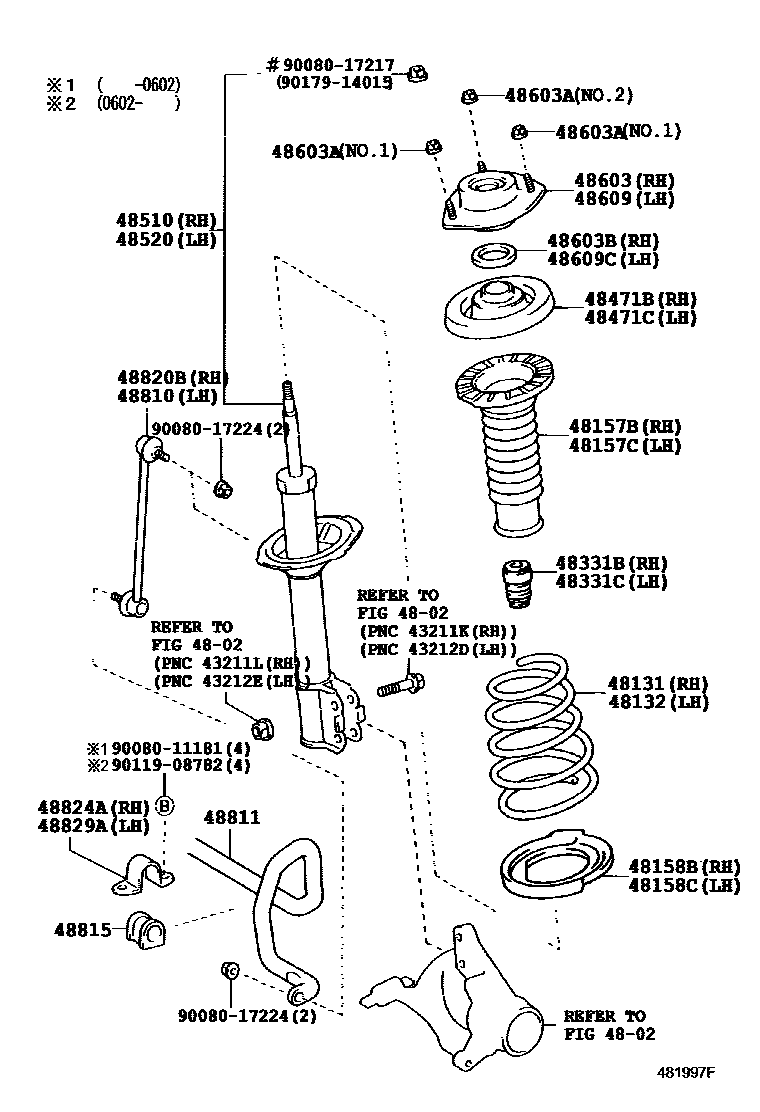

FRONT SPRING & SHOCK ABSORBER
4802FRONT AXLE ARM & STEERING KNUCKLE
48131SPRING, FRONT COIL, RH
48132SPRING, FRONT COIL, LH
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
(J)
(L)
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
(J)
(L)
48331BBUMPER, FRONT SPRING, RH
48331CBUMPER, FRONT SPRING, LH
48471BSEAT, FRONT COIL SPRING, UPPER RH
48471CSEAT, FRONT COIL SPRING, UPPER LH
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-07090
MARK 48510-07091
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48520-07090
MARK 48520-07091
MARK 48520-07093
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
NO.2
(J),NO.1
NO.1
(L),NO.1
48603BBEARING(FOR FRONT SUSPENSION SUPPORT RH)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609CBEARING(FOR FRONT SUSPENSION SUPPORT LH)
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
48815BUSH, FRONT STABILIZER BAR, NO.1
48820BLINK ASSY, FRONT STABILIZER, RH
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48829ABRACKET, FRONT STABILIZER, NO.1 LH
9008011181
main90080-11181
9008017217
main90080-17217
9008017224
main90080-17224
9011908782
main90119-08782
9017914015
main90179-14015
29 parts on this diagram · 1 diagram in section
