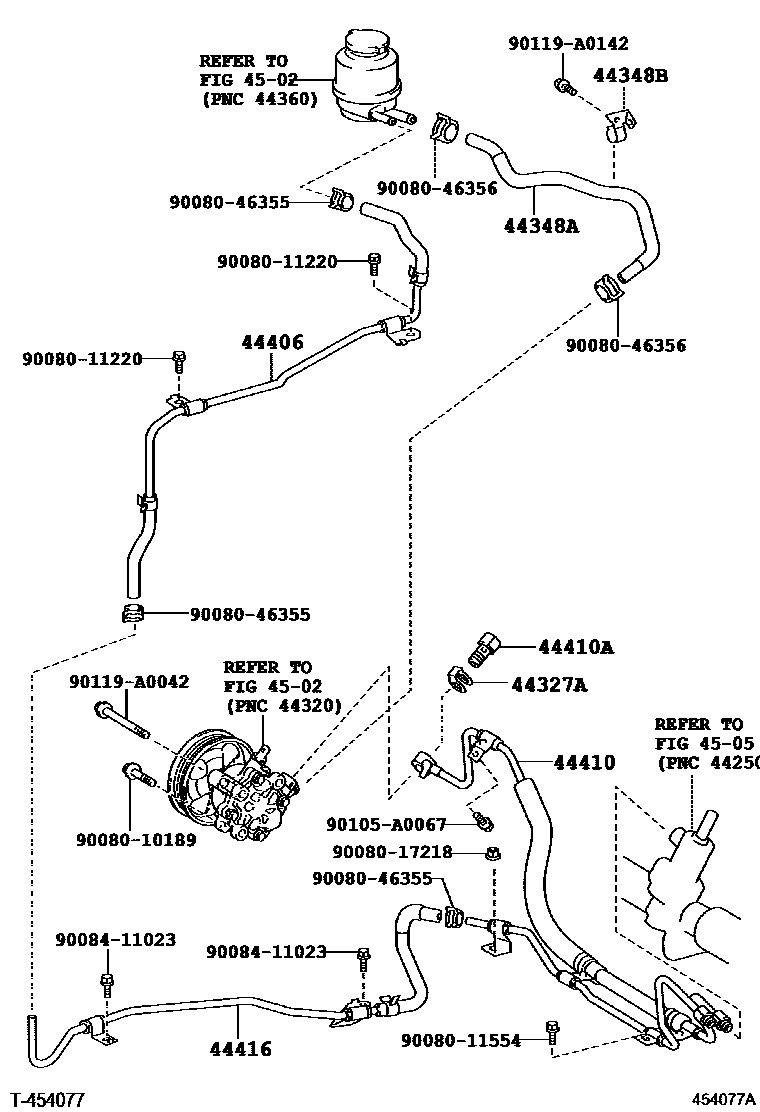

POWER STEERING TUBE

0001 1W/O(POWER STEERING COOLER) 0002 1W(POWER STEERING COOLER) 0003 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-30030iGSX30200501-201210

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-06260iGSX30200905-201210

main44348-07050iGSX30200501-200707

main44348-07060iGSX30200707-200904

44348BCLAMP(FOR OIL RESERVOIR TO PUMP HOSE)

main44349-41010iGSX30200501-201003

44406TUBE SUB-ASSY, RETURN

main44406-07080iGSX30200501-200707

main44406-33110iGSX30200707-201003

44410TUBE ASSY, PRESSURE FEED

main44410-07090iGSX30200501-200707

main44410-07100iGSX30200707-201003

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main96341-41603iGSX30200501-201003

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-07080iGSX30200501-200707

main44416-07092iGSX30200707-201003

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

9008010189

main90080-10189

9008011220

main90080-11220

9008011554

main90080-11554

9008017218

main90080-17218

9008046355

main90080-46355

9008046356

main90080-46356

9008411023

main90084-11023

90105A0067

main90105-A0067

90119A0042

main90119-A0042

90119A0142

main90119-A0142

19 parts on this diagram · 3 diagrams in section
