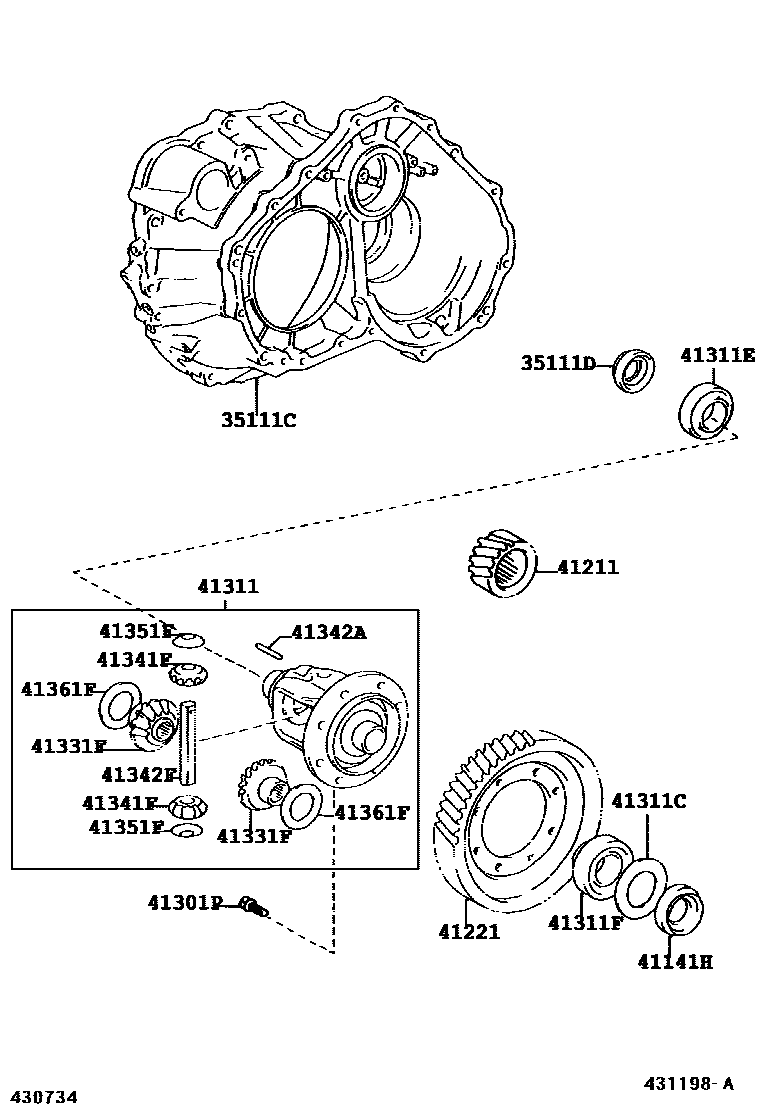

FRONT AXLE HOUSING & DIFFERENTIAL
35111CHOUSING, TRANSAXLE
sub35105-07011
35111DSEAL, OIL (FOR TRANSAXLE HOUSING)
sub90311-40038
41141HSEAL, OIL(FOR DIFFERENTIAL SIDE BEARING RETAINER)
sub90311-50053
41211PINION, DIFFERENTIAL DRIVE
sub41211-42H02
41301PSCREW(FOR FRONT DIFFERENTIAL CASE)
(L)
(J)
41311CSHIM (FOR FRONT DIFFERENTIAL CASE REAR)
T=2.00,MARK 0
T=2.05,MARK 1
T=2.10,MARK 2
T=2.15,MARK 3
T=2.20,MARK 4
T=2.25,MARK 5
T=2.30,MARK 6
T=2.35,MARK 7
T=2.40,MARK 8
T=2.45,MARK 9
T=2.50,MARK A
T=2.55,MARK B
T=2.60,MARK C
T=2.65,MARK D
T=2.70,MARK E
T=2.75,MARK F
T=2.80,MARK G
T=2.85,MARK H
41331FGEAR, FRONT DIFFERENTIAL SIDE
sub41039-45H00
41341FPINION, FRONT DIFFERENTIAL
sub41039-45H00
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.625
T=1.50
T=1.55
T=1.60
T=1.65
T=1.70
T=1.75
T=1.80
T=1.85
T=1.90
T=1.725
T=1.825
16 parts on this diagram · 2 diagrams in section
