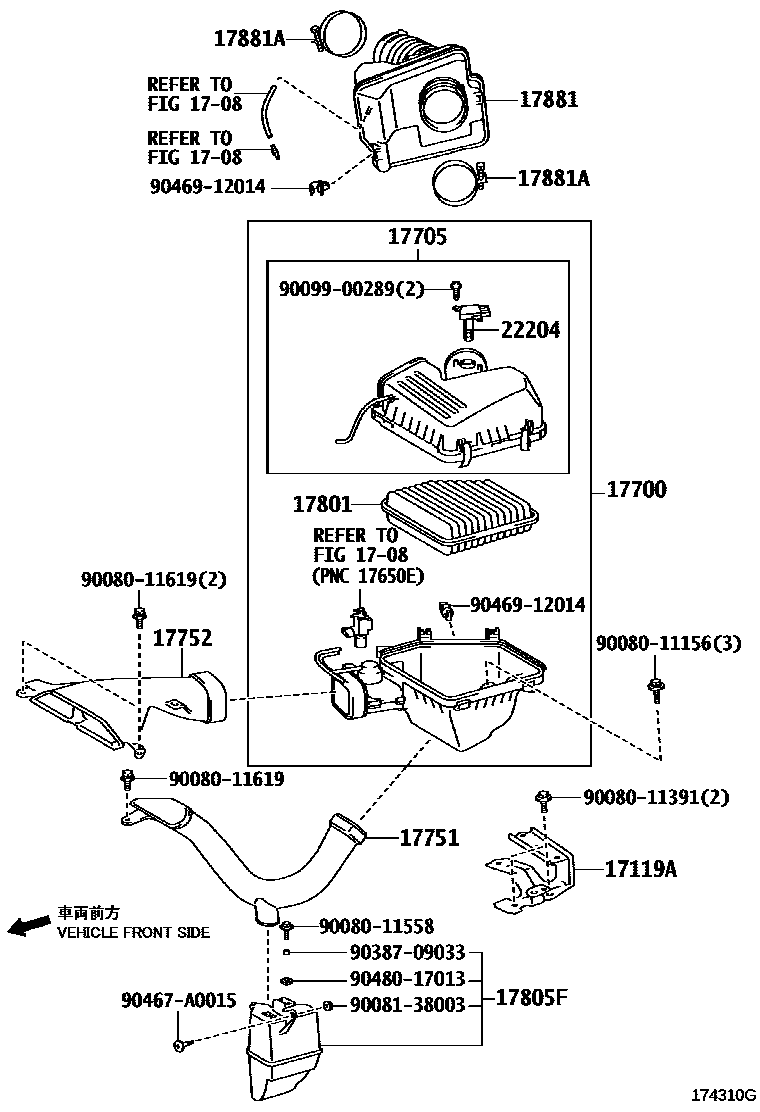

AIR CLEANER

0001 1 0002 1

1708VACUUM PIPING

→ Go to FIG 17-08

17119ABRACKET, AIR CLEANER

main17119-0P050i2GRFE..GSX30200608-201003

(L)

main17119-31050i2GRFE..GSX30200608-201003

(J)

main17119-AD010i2GRFE..GSX30200501-200608

17700CLEANER ASSY, AIR

main17700-AD010i2GRFE..GSX30200501-200601

main17700-AD013i2GRFE..GSX30200601-200701

main17700-AD014i2GRFE..GSX30200702-200802

main17700-AD015i2GRFE..GSX30200803-201002

main17700-AD016i2GRFE..GSX30201005

17705CAP SUB-ASSY, AIR CLEANER

main17705-AD010i2GRFE..GSX30200501-200601

main17705-AD013i2GRFE..GSX30200601-200701

main17705-AD014i2GRFE..GSX30200702-200802

main17705-AD015i2GRFE..GSX30200803-201002

main17705-AD016i2GRFE..GSX30201005

17751INLET, AIR CLEANER, NO.1

main17751-AD010i2GRFE..GSX30200501-201003

17752INLET, AIR CLEANER, NO.2

main17752-AD010i2GRFE..GSX30200501-201003

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-AD010i2GRFE..GSX30200501-201003

17805FRESONATOR SUB-ASSY, INTAKE AIR

main17805-AD010i2GRFE..GSX30200501-201003

17881HOSE, AIR CLEANER, NO.1

main17881-AD010i2GRFE..GSX30200501-201003

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10900i2GRFE..GSX30200501-201003

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0H010i2GRFE..GSX30200803-201003

(L)

main22204-31010i2GRFE..GSX30200501-200701

main22204-31020i2GRFE..GSX30200702-200803

main22204-31020i2GRFE..GSX30200803-201003

(J)

9008011156

main90080-11156

9008011391

main90080-11391

9008011558

main90080-11558

9008011619

main90080-11619

9008138003

main90081-38003

9009900289

main90099-00289

9038709033

main90387-09033

90467A0015

main90467-A0015

9046912014

main90469-12014

9048017013

main90480-17013

21 parts on this diagram · 2 diagrams in section
