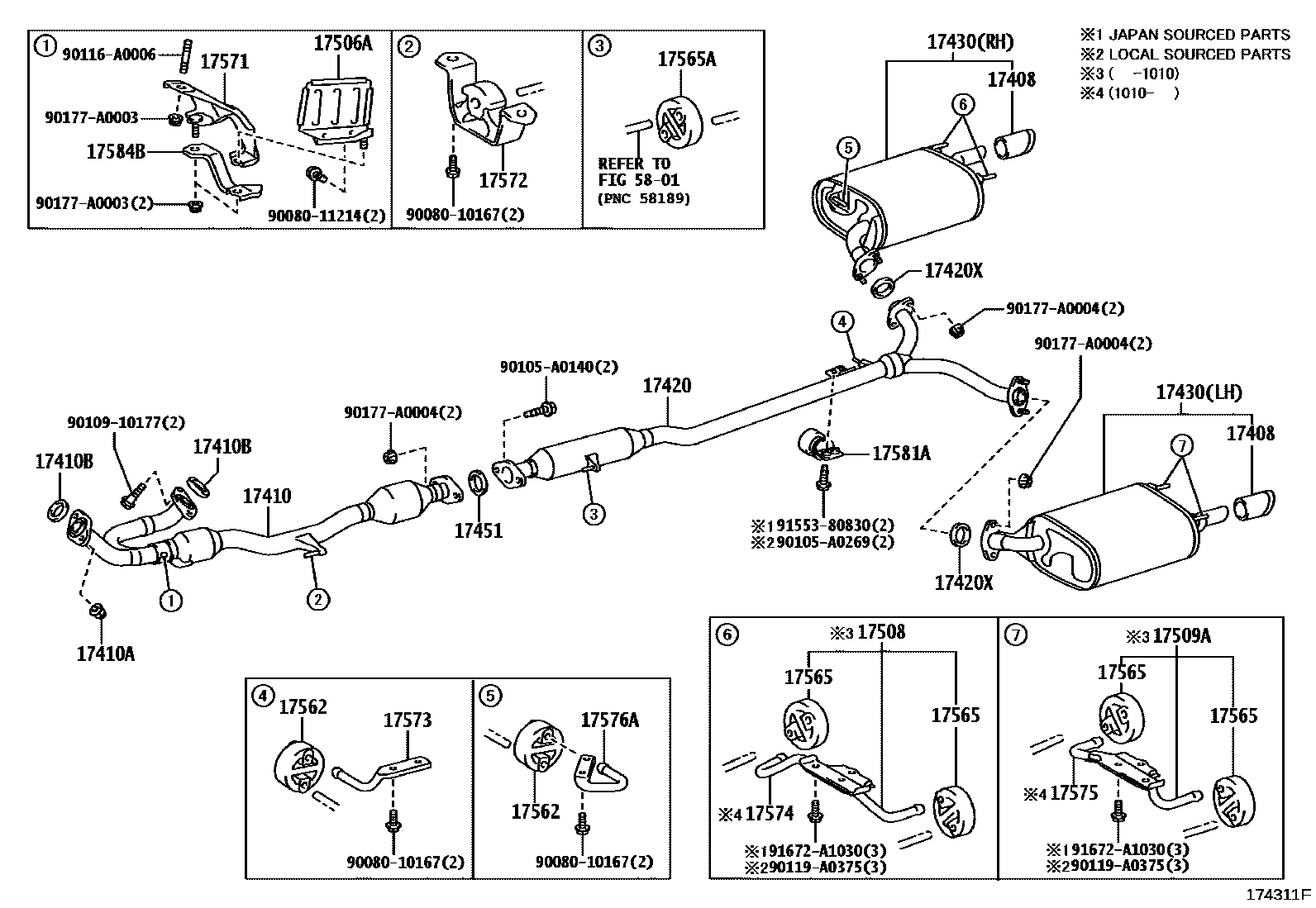

EXHAUST PIPE
17408BAFFLE SUB ASSY, EXHAUST TAILPIPE
17410PIPE ASSY, EXHAUST, FRONT
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
(L)
(J)
17420PIPE ASSY, EXHAUST, CENTER
17420XGASKET, EXHAUST PIPE, CENTER
(L)
(J)
17430PIPE ASSY, EXHAUST, TAIL
RH
RH
RH
LH
LH
LH
17451GASKET, EXHAUST PIPE
(L)
(J)
17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17508SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3
17509ABRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT
17562SUPPORT, EXHAUST PIPE, NO.2
17565SUPPORT, EXHAUST PIPE, NO.5
17565ASUPPORT, EXHAUST PIPE, NO.4
17571BRACKET, EXHAUST PIPE SUPPORT, NO.1
17572BRACKET, EXHAUST PIPE NO.1 SUPPORT
17573BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER
17574BRACKET, EXHAUST PIPE SUPPORT, NO.4
17575BRACKET, EXHAUST PIPE SUPPORT, NO.5
17576ABRACKET, EXHAUST PIPE SUPPORT, NO.6
17581ADAMPER, EXHAUST PIPE
17584BBRACKET, EXHAUST PIPE NO.1 SUPPORT
5801FLOOR PAN & LOWER BACK PANEL
9008010167
main90080-10167
9008011214
main90080-11214
90105A0140
main90105-A0140
90105A0269
main90105-A0269
9010910177
main90109-10177
90116A0006
main90116-A0006
90119A0375
main90119-A0375
90177A0003
main90177-A0003
90177A0004
main90177-A0004
9155380830
main91553-80830
91672A1030
main91672-A1030
34 parts on this diagram · 1 diagram in section
