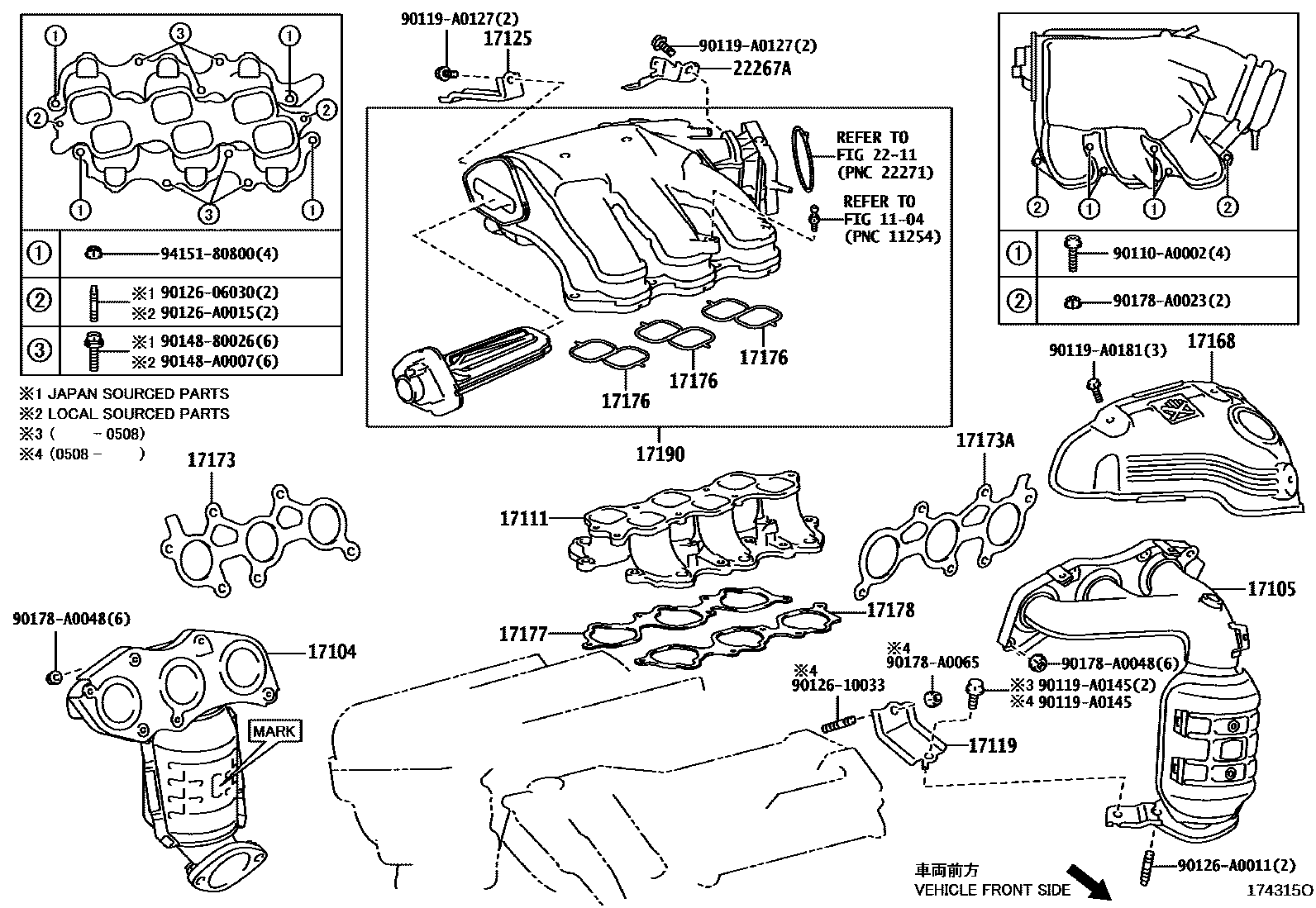

MANIFOLD
1104
17105MANIFOLD SUB-ASSY, EXHAUST, LH
MARK L0P040
17111MANIFOLD, INTAKE
*133
(J)
(L)
*132
17119STAY, MANIFOLD, NO.2
(L)
(J)
17125STAY, SURGE TANK, NO.1
(L)
(J)
17173GASKET, EXHAUST MANIFOLD TO HEAD
(L)
(J)
17173AGASKET, EXHAUST MANIFOLD TO HEAD, LH
(L)
(J)
2211
22267ABRACKET, THROTTLE BODY
(L)
(J)
90110A0002
main90110-A0002
90119A0127
main90119-A0127
90119A0145
main90119-A0145
90119A0181
main90119-A0181
9012606030
main90126-06030
9012610033
main90126-10033
90126A0011
main90126-A0011
90126A0015
main90126-A0015
9014880026
main90148-80026
90148A0007
main90148-A0007
90178A0023
main90178-A0023
90178A0048
main90178-A0048
90178A0065
main90178-A0065
9415180800
main94151-80800
29 parts on this diagram · 2 diagrams in section
