WATER PUMP

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16100PUMP ASSY, ENGINE WATER

main16100-09440i2GRFE..GSX30200707-200901

main16100-09441i2GRFE..GSX30200901-201003

main16100-39455i2GRFE..GSX30200501-200707

16173PULLEY, WATER PUMP

main16173-31010i2GRFE..GSX30200707-201003

16193ABOLT(FOR WATER PUMP COVER)

main16193-31080×2i2GRFE..GSX30200501-200707

16271GASKET, WATER PUMP

main16271-0P010i2GRFE..GSX30201005

main16271-31030i2GRFE..GSX30200501-200707

(J)

16604PULLEY SUB-ASSY, IDLER, NO.2

main16604-31010×2i2GRFE..GSX30200501-200707

main16604-31020×2i2GRFE..GSX30200709-201003

16620TENSIONER ASSY, V-RIBBED BELT

main16620-31040i2GRFE..GSX30200501-200707

16649BPLATE, IDLER PULLEY COVER

main16649-31020×2i2GRFE..GSX30200709-201003

16659PLATE, IDLER PULLEY COVER, NO.2

main16659-31011×2i2GRFE..GSX30200501-200707

(J)

main16659-AD010×2i2GRFE..GSX30200601-200707

(L)

90105A0126

main90105-A0126

90105A0129

main90105-A0129

90119A0183

main90119-A0183

9155180622

main91551-80622

9155281035

main91552-81035

9155281070

main91552-81070

9167180816

main91671-80816

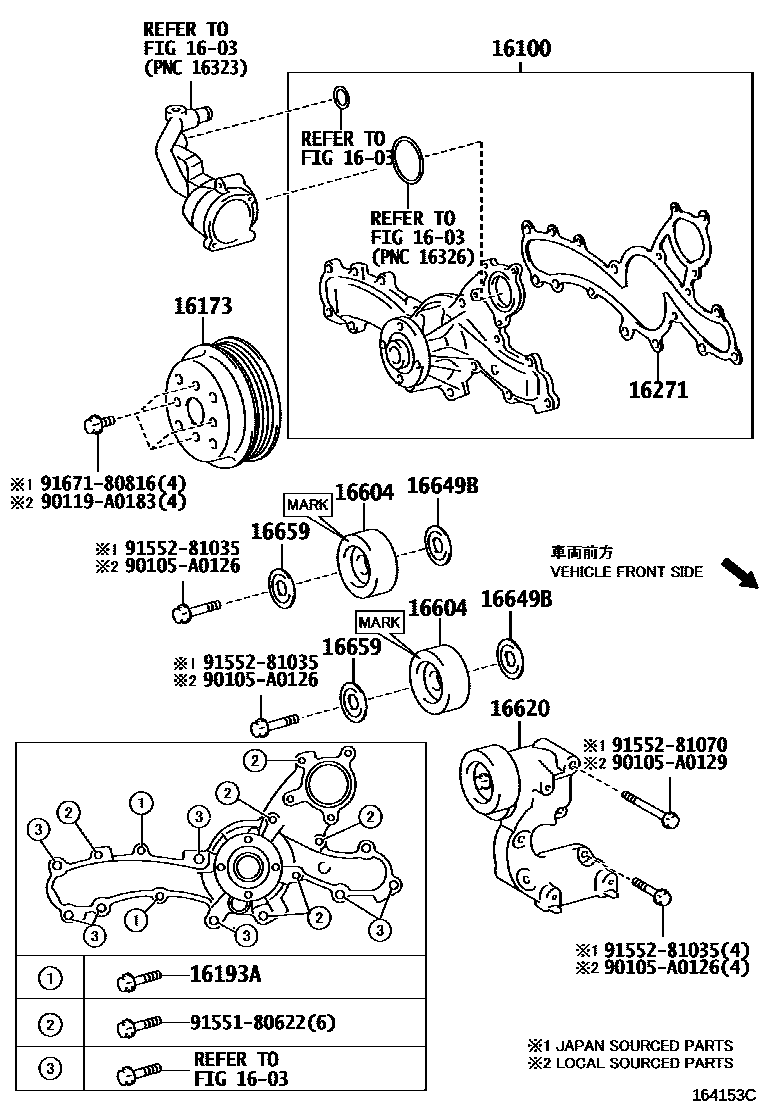

16 parts on this diagram · 1 diagram in section
