STANDARD TOOL

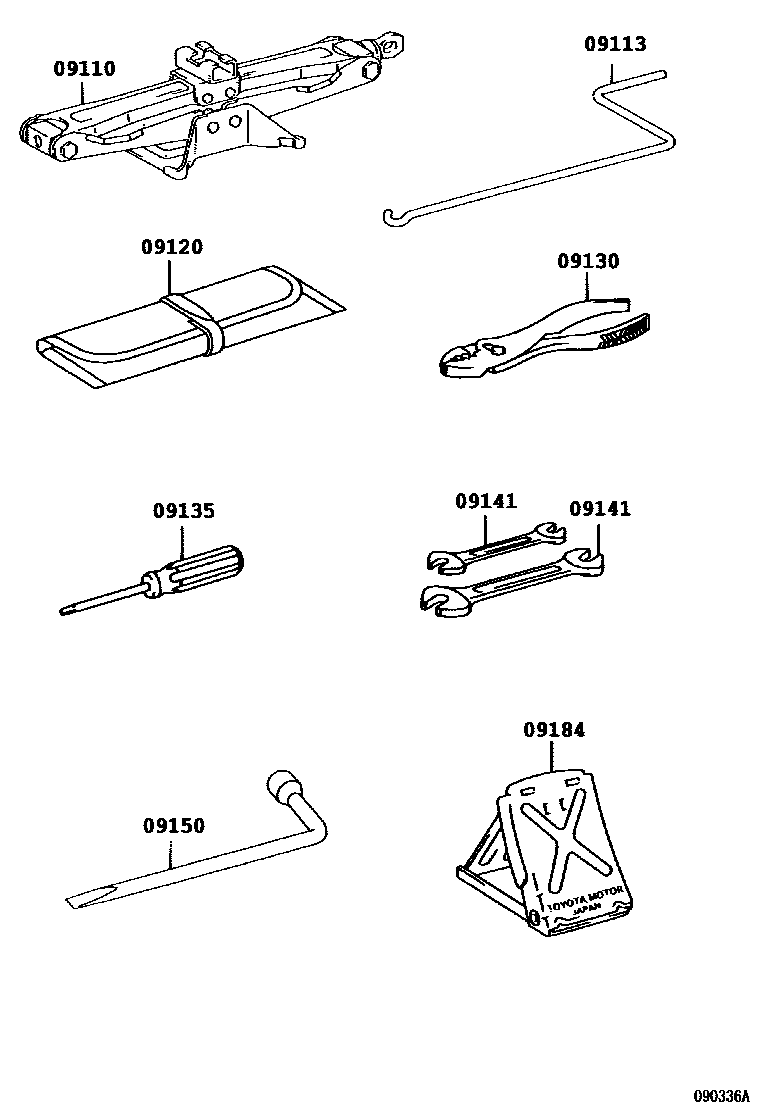

Parts diagram

09110JACK ASSY

main09111-06151i201108-201210

main09111-AA010i200501-201107

09113HANDLE, JACK

main09113-06020i200501-201003

09120BAG, TOOL

main09120-16030i200501-201003

09130PLIERS

main99913-11500i200501-201003

09135DRIVER, SCREW

main99915-10700i200501-201003

09141SPANNER

main99914-10810i200501-201003

8 X 10

main99914-11214i200501-201003

12 X 14

09150WRENCH, HUB NUT BOX

main09150-02020i200501-201003

09184STOPPER, WHEEL

main09184-00010i200501-201111

8 parts on this diagram · 1 diagram in section
