WIRELESS DOOR LOCK

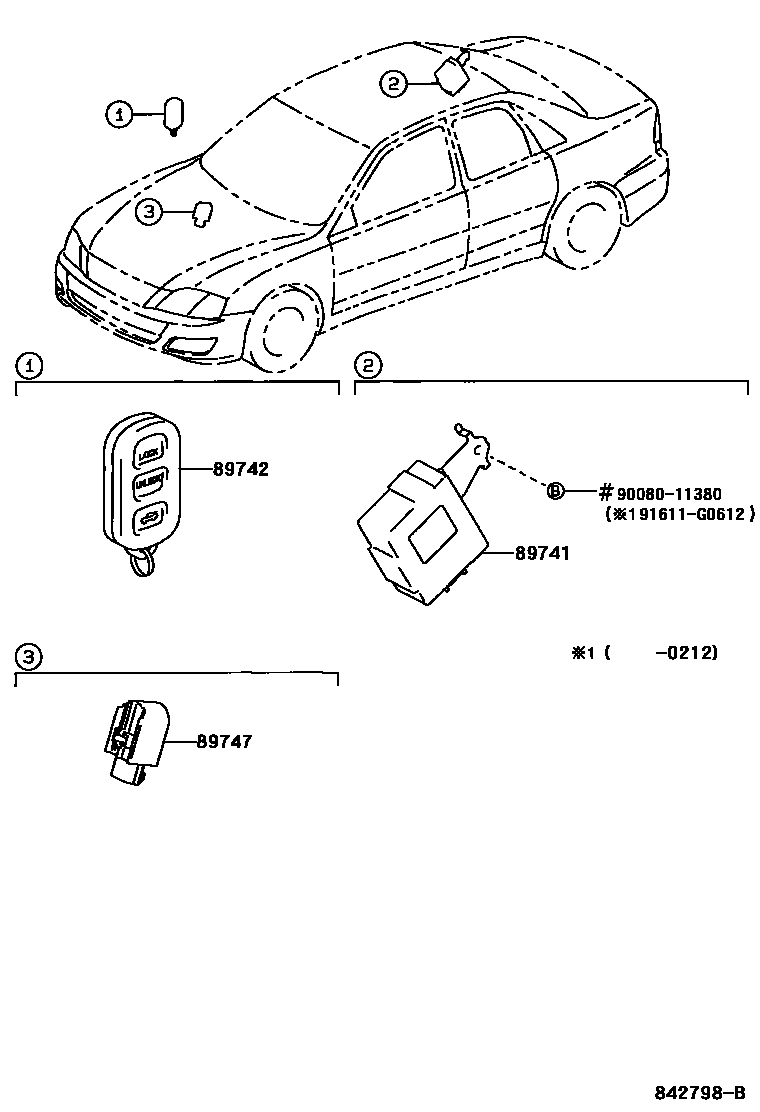

Parts diagram

89741RECEIVER, DOOR CONTROL

main89741-AC050i199908-200206

main89741-AC051i200308

89742TRANSMITTER, DOOR CONTROL

main89742-AC060×2i199908-200206

main89742-AC061×2i200308

89747BUZZER, WIRELESS DOOR LOCK

main89747-51010i199908-200206

9008011380

main90080-11380

91611G0612

main91611-G0612

5 parts on this diagram · 1 diagram in section
