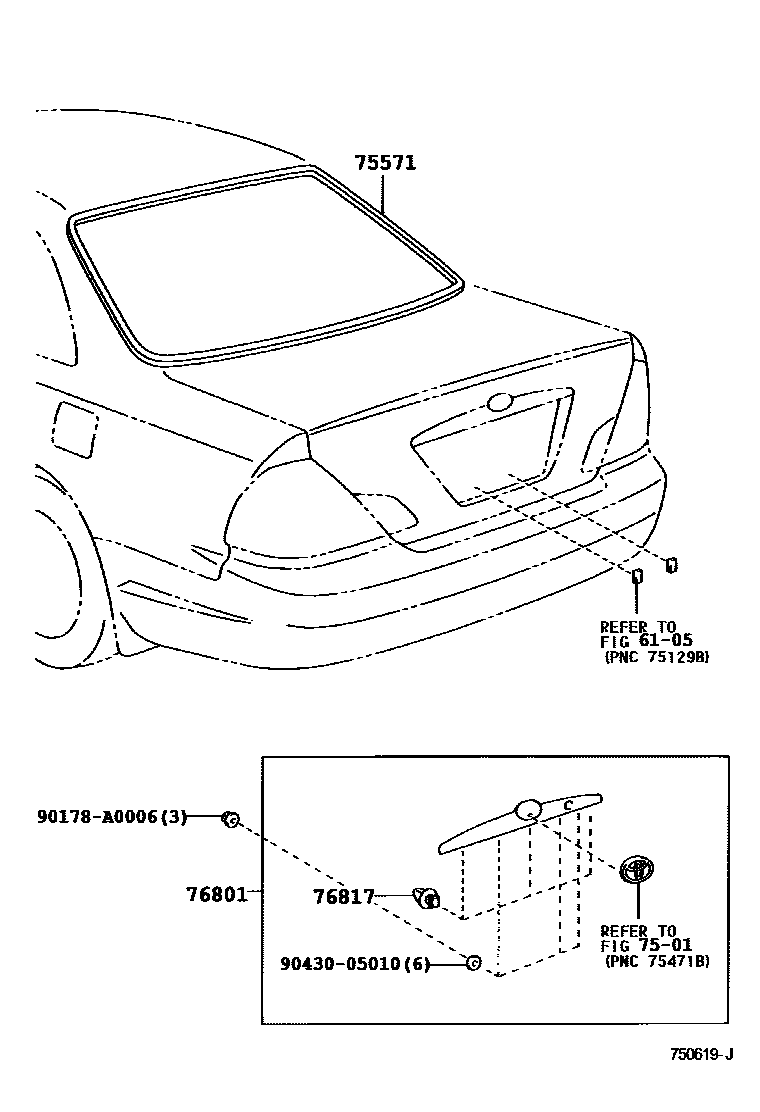

REAR MOULDING

6105LUGGAGE COMPARTMENT DOOR & LOCK

→ Go to FIG 61-05

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

75571MOULDING, BACK WINDOW, OUTSIDE UPPER

main75571-AC010iMCX20199908-200206

76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE

main76801-07010iMCX20200206-200501

main76801-AC030iMCX20199908-200206

76817CLIP, BACK DOOR OUTSIDE GARNISH

main76817-12050×3iMCX20199908-200206

90178A0006

main90178-A0006

9043005010

main90430-05010

7 parts on this diagram · 1 diagram in section
