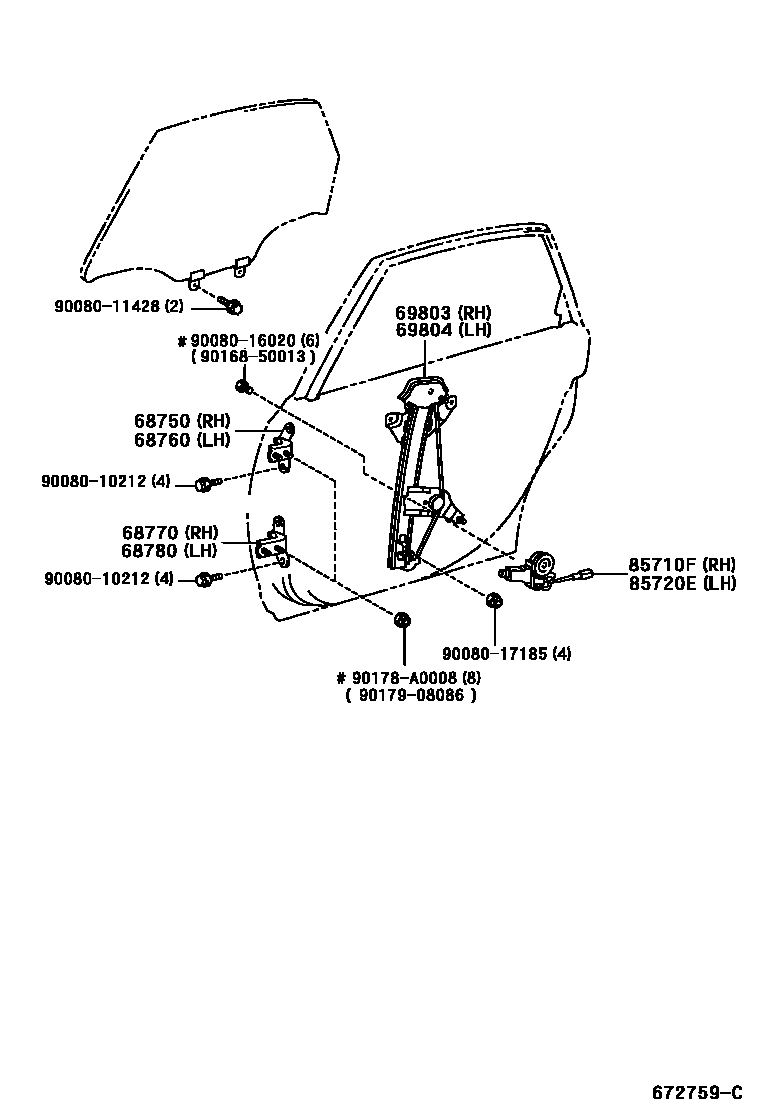

REAR DOOR WINDOW REGULATOR & HINGE

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-AC010iMCX20199908-200206

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-AC010iMCX20199908-200206

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-AC010iMCX20199908-200206

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-AC010iMCX20199908-200206

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-AC010iMCX20199908-200206

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-AC010iMCX20199908-200206

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-AC030iMCX20199908-200206

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-AC030iMCX20199908-200206

9008010212

main90080-10212

9008011428

main90080-11428

9008016020

main90080-16020

9008017185

main90080-17185

9016850013

main90168-50013

90178A0008

main90178-A0008

9017908086

main90179-08086

15 parts on this diagram · 1 diagram in section
