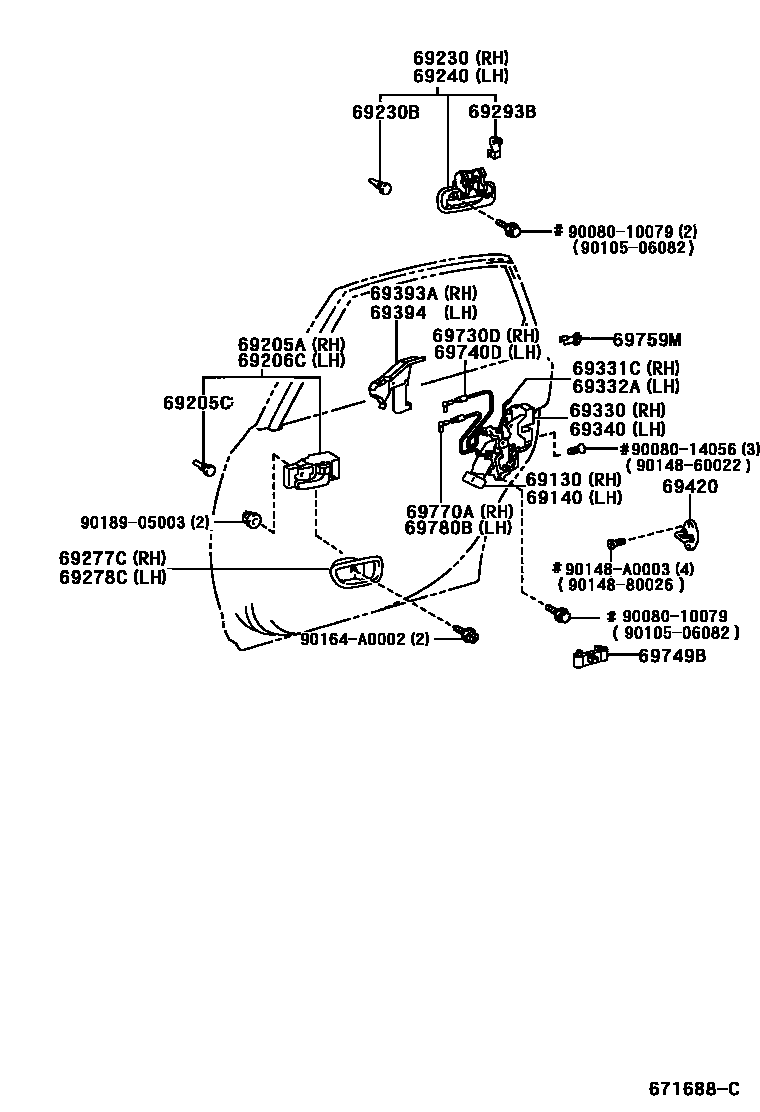

REAR DOOR LOCK & HANDLE
69130ACTUATOR ASSY, REAR DOOR LOCK, RH
69140ACTUATOR ASSY, REAR DOOR LOCK, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
IVORY,TRIM0#
STONE,TRIM1#
FAWN,TRIM4#
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
IVORY,TRIM0#
STONE,TRIM1#
FAWN,TRIM4#
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
SU.WHITE PM,051
SLVER ME.,1C8
BLACK,202
DK RED MC,3Q7
BEIGE M.M.,4Q2
GR.GREEN ME.,6M3
GREEN MC.,6R1
DK. GREEN MC.,6S7
69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
SU.WHITE PM,051
SLVER ME.,1C8
BLACK,202
DK RED MC,3Q7
BEIGE M.M.,4Q2
GR.GREEN ME.,6M3
GREEN MC.,6R1
DK. GREEN MC.,6S7
69277CBEZEL, REAR DOOR INSIDE HANDLE, RH
IVORY,TRIM0#
STONE,TRIM1#
FAWN,TRIM4#
69278CBEZEL, REAR DOOR INSIDE HANDLE, LH
IVORY,TRIM0#
STONE,TRIM1#
FAWN,TRIM4#
69293BSNAP, REAR DOOR OUTSIDE HANDLE
RH
LH
69330LOCK ASSY, REAR DOOR, RH
69331CROD, REAR DOOR LOCK OPEN, RH
69332AROD, REAR DOOR LOCK OPEN, LH
69340LOCK ASSY, REAR DOOR, LH
69393ACOVER, REAR DOOR LOCK, OUTER RH
69394COVER, REAR DOOR LOCK, OUTER LH
69420PLATE ASSY, REAR DOOR LOCK STRIKER
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69749BCLAMP, REAR DOOR LOCK LINK
69759MSNAP, DOOR LOCK CONTROL LINK
RH
LH
69770ALINK ASSY, REAR DOOR INSIDE LOCKING, RH
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
9008010079
main90080-10079
9008014056
main90080-14056
9010506082
main90105-06082
9014860022
main90148-60022
9014880026
main90148-80026
90148A0003
main90148-A0003
90164A0002
main90164-A0002
9018905003
main90189-05003
32 parts on this diagram · 1 diagram in section
