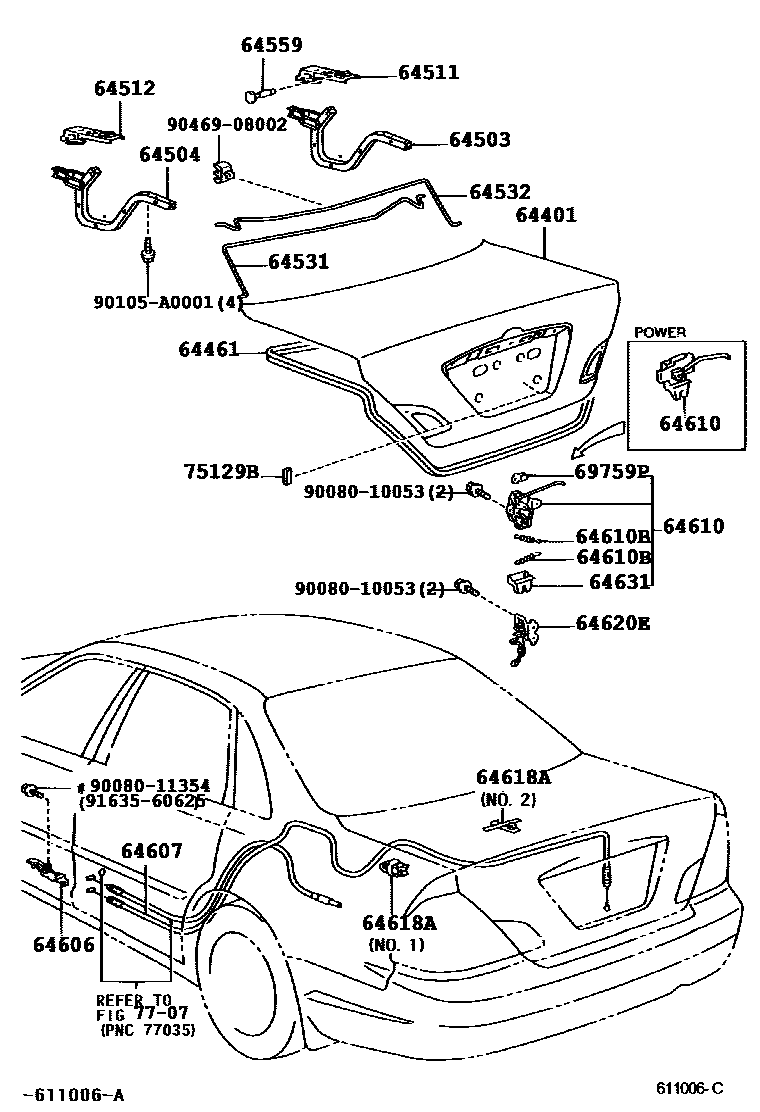

LUGGAGE COMPARTMENT DOOR & LOCK
64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH
64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH
64511SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH
64512SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH
64531BAR, LUGGAGE DOOR HINGE TORSION, RH
64532BAR, LUGGAGE DOOR HINGE TORSION, LH
64559PIN, LUGGAGE DOOR HINGE
64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN
64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR
W(POWER DOOR LOCK)
64610BSPRING, TENSION(FOR LOCK)
WD=0.55,CW=17.5,LOWER
WD=0.55,CW=17.25,UPPER
64618ACLAMP, LUGGAGE LOCK CONTROL CABLE
NO.1:REFER TO ILLUSTRATION
NO.2:REFER TO ILLUSTRATION
64620ESTRIKER ASSY, LUGGAGE COMPARTMENT DOOR
64631PROTECTOR, LUGGAGE DOOR LOCK
69759PSNAP, DOOR LOCK CONTROL LINK
75129BCUSHION, REAR LICENCE PLATE
7707
9008010053
main90080-10053
9008011354
main90080-11354
90105A0001
main90105-A0001
9046908002
main90469-08002
9163560625
main91635-60625
24 parts on this diagram · 1 diagram in section
