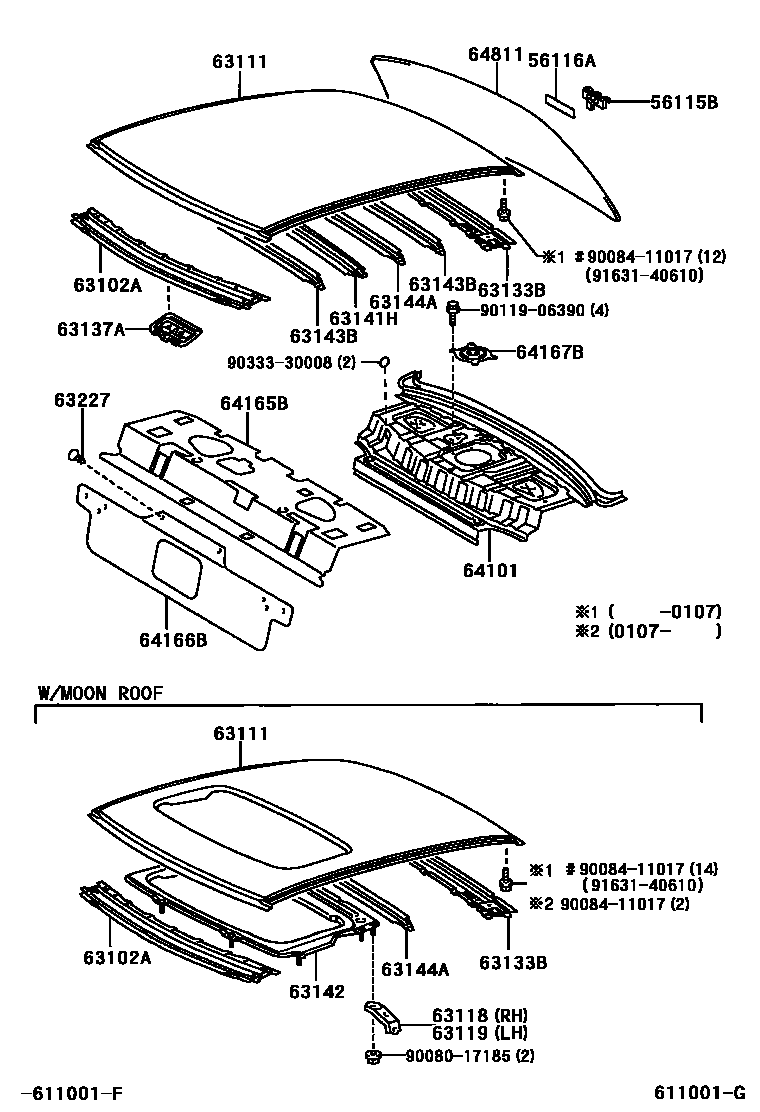

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-22010iMCX20200108-200206

56116ASPACER, WINDSHIELD GLASS

main56116-22050×2iMCX20199908-200108

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-AC900iMCX20199908-200007

main63102-AC901iMCX20200007-200107

main63102-AC903iMCX20200206

main63102-AC905iMCX20200107-200206

63111PANEL, ROOF

main63111-AC010iMCX20199908-200206

main63111-AC020iMCX20199908-200206

W(MOON ROOF)

63118SUPPORT, ROOF PANEL, RH

main63118-AC010iMCX20199908-200206

63119SUPPORT, ROOF PANEL, LH

main63118-AC010iMCX20199908-200206

63133BFRAME, BACK WINDOW

main63133-AC010iMCX20199908-200007

main63133-AC011iMCX20200007-200107

main63133-AC012iMCX20200107-200206

main63133-AC013iMCX20200206-200501

63137ABRACKET, DOME LAMP, NO.1

main63137-AC010iMCX20199908-200206

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-AC010iMCX20199908-200206

main63141-AC011iMCX20200206

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-AC010iMCX20199908-200206

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-AC010×2iMCX20199908-200206

main63143-AC011×2iMCX20200206

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-AC010iMCX20199908-200206

main63144-AC011iMCX20200206

main63144-AC020iMCX20199908-200206

W(MOON ROOF)

63227CLIP, ROOF WIND DEFLECTOR PANEL

main90467-07042-C0×2iMCX20199908-200206

BLACK,TRIM0#,1#,4#

64101PANEL SUB-ASSY, UPPER BACK

main64101-AC020iMCX20199908-200206

main64101-AC021iMCX20200206-200501

64165BCOVER, UPPER BACK PANEL HOLE, NO.1

main64165-AC010iMCX20199908-200206

64166BCOVER, UPPER BACK PANEL HOLE, NO.2

main64166-AC010iMCX20199908-200206

64167BCOVER, UPPER BACK PANEL HOLE, NO.3

main64167-AC010iMCX20199908-200206

64811GLASS, BACK WINDOW

main64811-AC140iMCX20199908-200206

*UVCEHTT,T=3.5,GREEN

9008017185

main90080-17185

9008411017

main90084-11017

9011906390

main90119-06390

9033330008

main90333-30008

9163140610

main91631-40610

23 parts on this diagram · 2 diagrams in section
