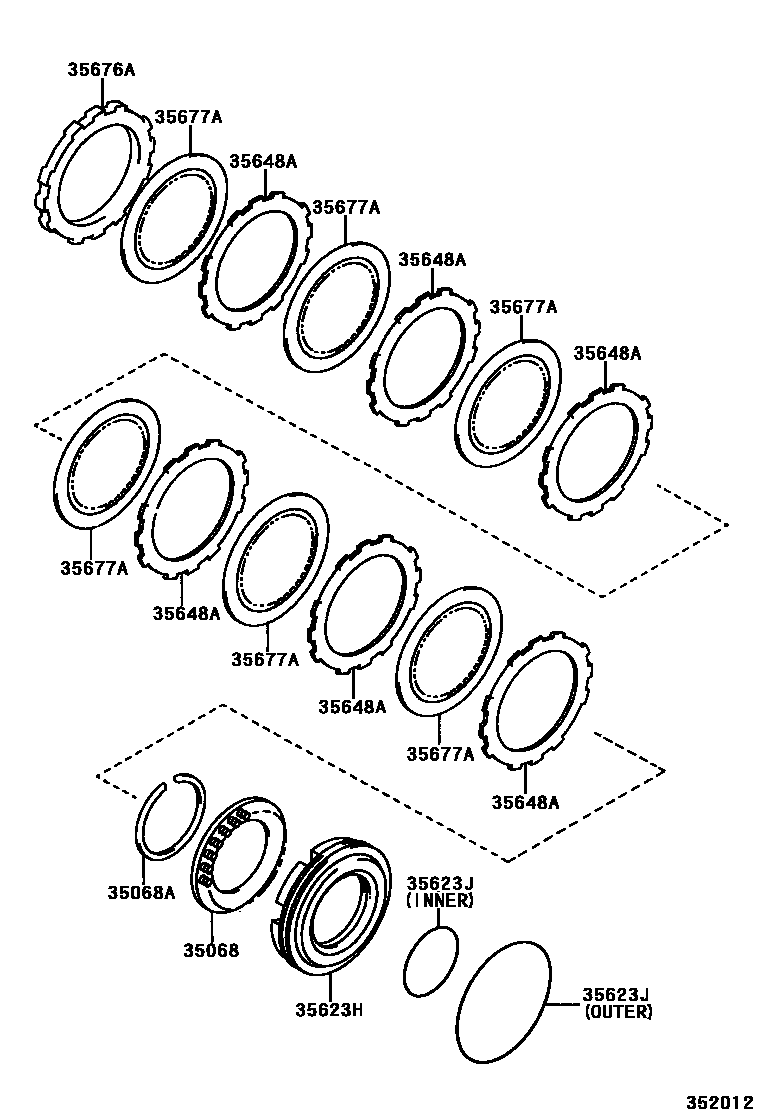

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-33010iMCX20200206-200501

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-86004iMCX20199908-200206

35623HPISTON, 1ST & REVERSE BRAKE

main35623-33010iMCX20199908-200206

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-90001iMCX20200206-200501

INNER

main90301-99078iMCX20199908-200206

OUTER

35648APLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35648-33020×6iMCX20199908-200206

35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)

main35676-33010iMCX20199908-200206

T=3.6

35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35677-33040×6iMCX20199908-200206

7 parts on this diagram · 1 diagram in section
