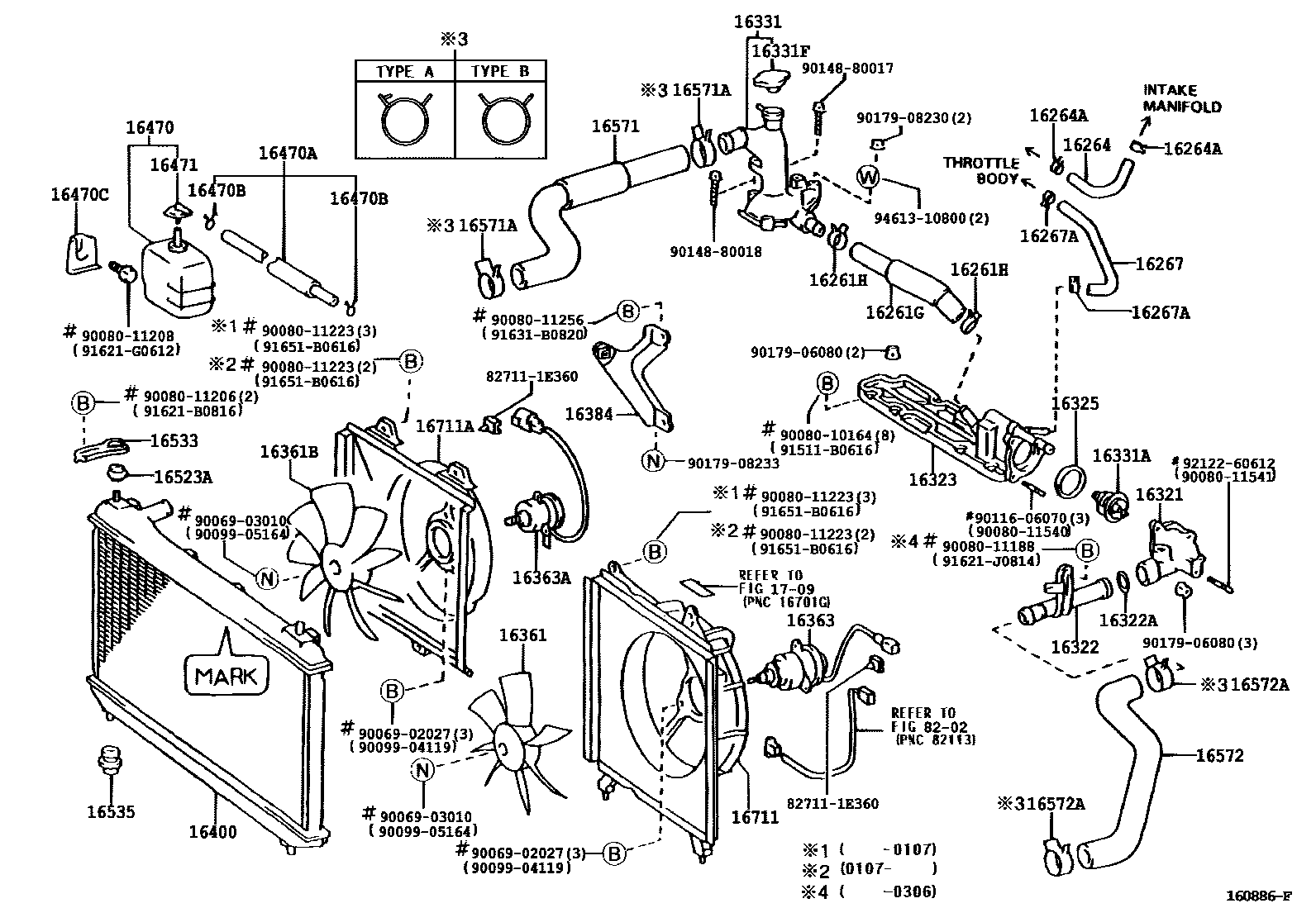

RADIATOR & WATER OUTLET
16261GHOSE, WATER BY-PASS, NO.1
(L)
(J)
16261HCLIP(FOR WATER BY-PASS HOSE NO.1)
16264HOSE, WATER BY-PASS, NO.2
(L)
16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
16267HOSE, WATER BY-PASS, NO.3
(L)
16267ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
16321INLET, WATER
(L)
(J)
16322PIPE, WATER INLET
(L)
(J)
16322ARING, O(FOR WATER INLET)
16323HOUSING, WATER INLET
(L)
(J)
16325GASKET, WATER INLET HOUSING, NO.1
16331OUTLET, WATER
(L)
16331ATHERMOSTAT
*WAX 82-95
*WAX 82-95
16331FCAP SUB-ASSY(FOR WATER OUTLET)
16363MOTOR, COOLING FAN
16363AMOTOR, COOLING FAN, NO.2
16384BRACKET, FAN BELT ADJUSTING BAR
16400RADIATOR ASSY
16470TANK ASSY, RADIATOR RESERVE
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470CBRACKET(FOR RADIATOR RESERVE TANK)
16471CAP SUB-ASSY, RESERVE TANK
16523ACUSHION, RADIATOR SUPPORT
16533SUPPORT, RADIATOR, UPPER
16535SUPPORT, RADIATOR, LOWER
(L)
(J)
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
16711SHROUD, FAN
16711ASHROUD, FAN, NO.2
1709CAUTION PLATE & NAME PLATE (ENGINE)
8202WIRING & CLAMP
827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E360
9006902027
main90069-02027
9006903010
main90069-03010
9008010164
main90080-10164
9008011188
main90080-11188
9008011206
main90080-11206
9008011208
main90080-11208
9008011223
main90080-11223
9008011256
main90080-11256
9008011540
main90080-11540
9008011541
main90080-11541
9009904119
main90099-04119
9009905164
main90099-05164
9011606070
main90116-06070
9014880017
main90148-80017
9014880018
main90148-80018
9017906080
main90179-06080
9017908230
main90179-08230
9017908233
main90179-08233
91511B0616
main91511-B0616
91621B0816
main91621-B0816
91621G0612
main91621-G0612
91621J0814
main91621-J0814
91631B0820
main91631-B0820
91651B0616
main91651-B0616
9212260612
main92122-60612
9461310800
main94613-10800
63 parts on this diagram · 2 diagrams in section
