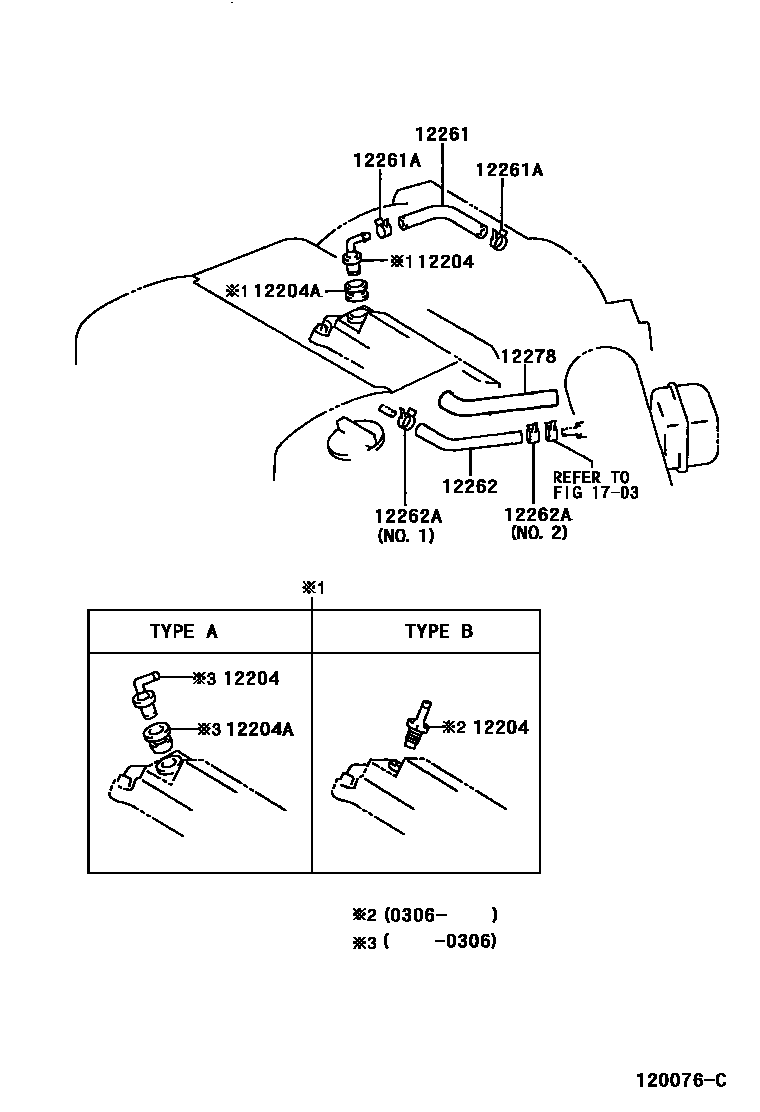

VENTILATION HOSE
12204VALVE SUB-ASSY, VENTILATION
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
12204AGROMMET(FOR VENTILATION SYSTEM)
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
12262HOSE, VENTILATION, NO.2
sub12262-20020
12262ACLIP(FOR VENTILATION HOSE NO.2)
NO.2
NO.1
12278INSULATOR, VENTILATION HOSE HEAT
1703
8 parts on this diagram · 1 diagram in section
