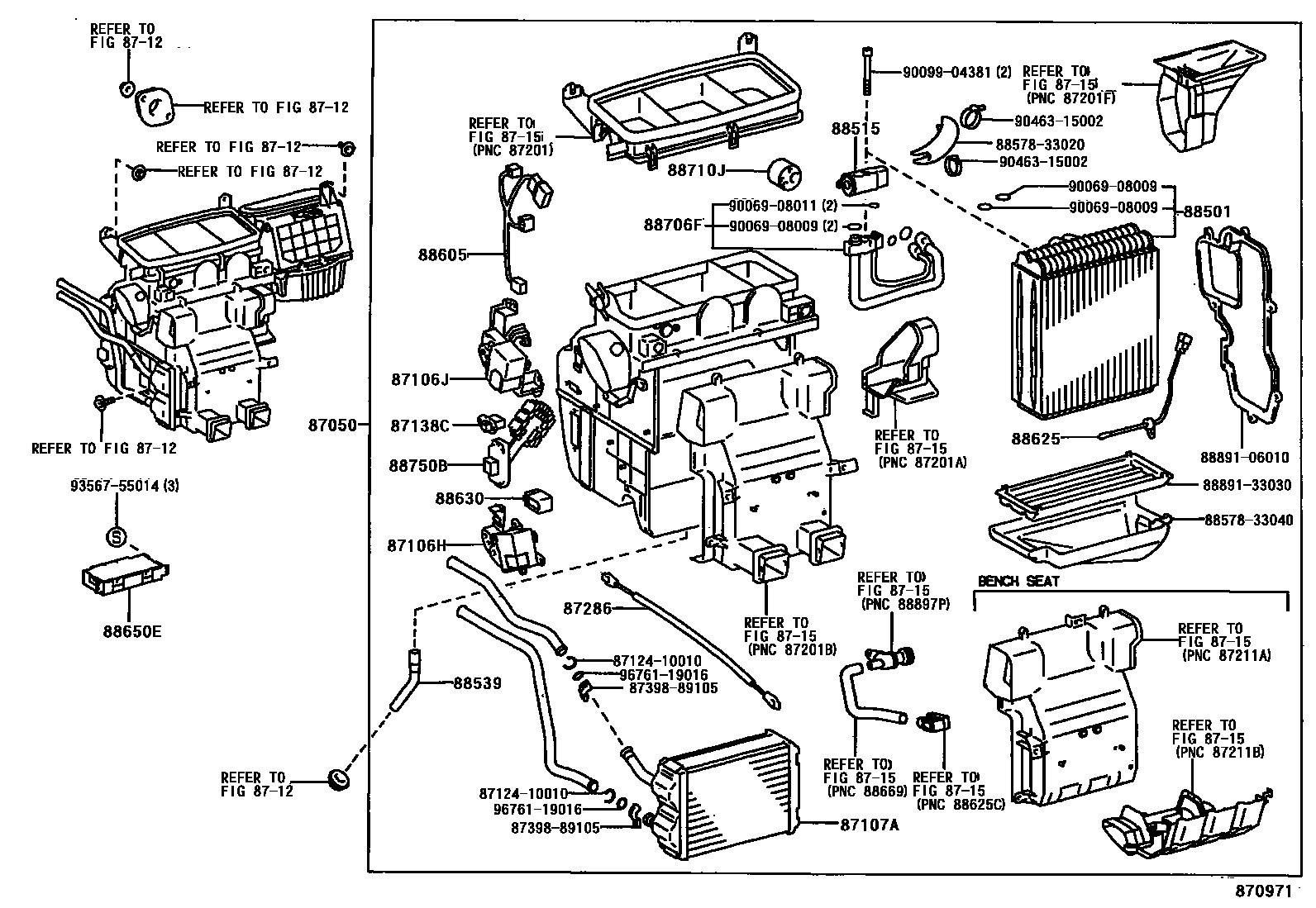

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1 0004 1

87050RADIATOR ASSY, AIR CONDITIONER

main87050-07050iMCX10..4FC199508-199709

main87050-07051iMCX10..XLS199709-199908

main87050-07060iMCX10..4HC199508-199709

main87050-07070iMCX10..4FC..XL199709-199908

main87050-07080iMCX10..4HC199709-199908

87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)

main87106-07020iMCX10..XLS199508

87106JSERVO SUB-ASSY, DAMPER(FOR MODE)

main87106-07010iMCX10199508

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-06010iMCX10199508-199709

main87107-07010iMCX10199709

8712HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

→ Go to FIG 87-12

87138CRESISTOR, BLOWER

main87138-06010iMCX10..XL199709

main87138-50010iMCX10199508-199709

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

87286CABLE, CONTROL

main87286-07010iMCX10..XLS199508

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-07010iMCX10199508

88515VALVE, COOLER EXPANSION

main88515-06020iMCX10199508

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-06010iMCX10199508

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-07010iMCX10199508-199709

main88605-07020iMCX10..XL199709

main88605-07030iMCX10..XLS199709

88625THERMISTOR, COOLER, NO.1

main88625-06010iMCX10199508

88630RELAY ASSY, COOLER

main88630-41010iMCX10199508-199709

88650EAMPLIFIER ASSY, AIR CONDITIONER, NO.1

main88650-07010iMCX10..XL199709

main88650-41010iMCX10199508-199709

main88650-41040iMCX10..XLS199709

88706FTUBE SUB-ASSY, LIQUID, F

main88716-33140iMCX10199508-199709

88710JTUBE, AIR CONDITIONER CONNECTOR

main88710-33090iMCX10199508-199709

main88710-33170iMCX10199709

88750BTRANSISTOR ASSY, BLOWER RESISTOR

main88750-06010iMCX10199508-199709

8712410010CLAMP, HEATER

main87124-10010

8739889105BAND ASSY (FOR COMBUSTION HEATER)

main87398-89105

8857833020PAKING, COOLER AIR DUCT

main88578-33020

8857833040PAKING, COOLER AIR DUCT

main88578-33040

8889106010PACKING (FOR COOLER)

main88891-06010

8889133030PACKING (FOR COOLER)

main88891-33030

9006908009

main90069-08009

9006908011

main90069-08011

9009904381

main90099-04381

9046315002

main90463-15002

9356755014

main93567-55014

9676119016

main96761-19016

30 parts on this diagram · 4 diagrams in section
