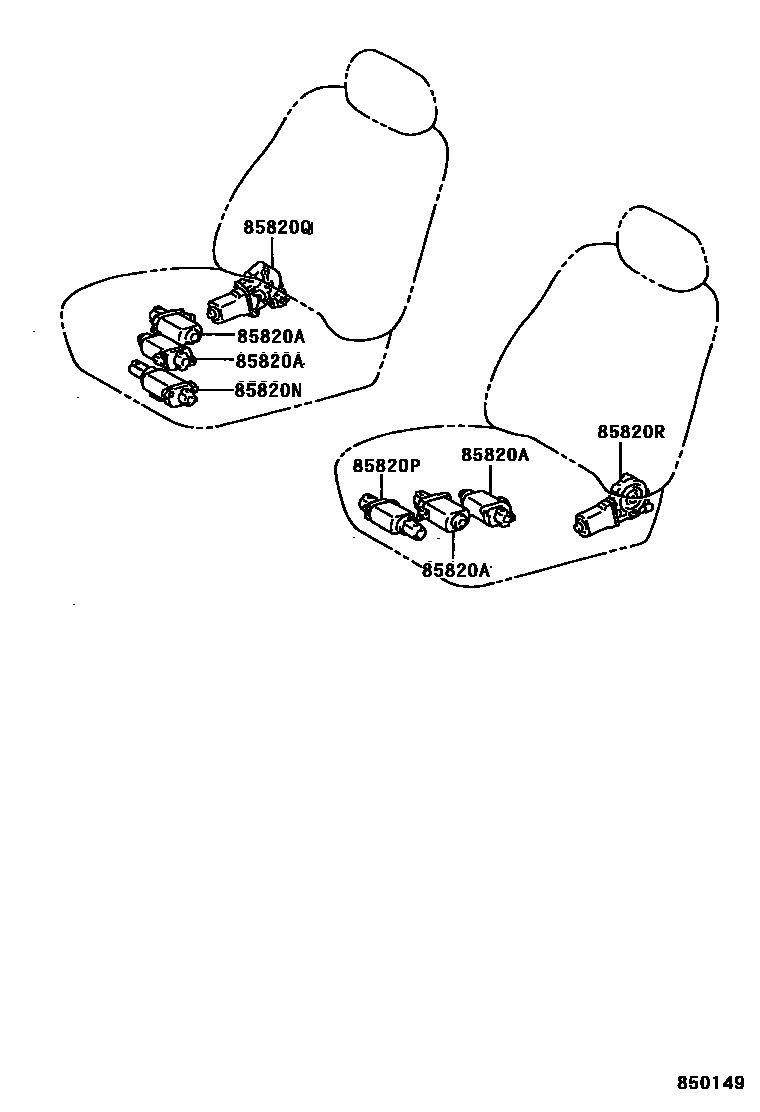

SEAT MOTOR & SEAT HEATER

85820AMOTOR ASSY, POWER SEAT (FOR FRONT UP, DOWN)

main85801-41020×2iMCX10..4HC199508

LH

main85801-41040×2iMCX10..4HC199508

RH

main85820-41030×2iMCX10..4FC..XLS199508

RH

main85820-41040×2iMCX10..4FC..XLS199508

LH

85820NMOTOR ASSY, POWER SEAT (FOR FRONT SLIDE RH)

main85801-41010iMCX10..4HC199508

main85820-41010iMCX10..4FC..XLS199508

85820PMOTOR ASSY, POWER SEAT (FOR FRONT SLIDE LH)

main85801-41030iMCX10..4HC199508

main85820-41020iMCX10..4FC..XLS199508

85820QMOTOR ASSY, POWER SEAT (FOR FRONT RECLINING RH)

main85820-32020iMCX10..4HC;MCX10..4FC..XLS199508

85820RMOTOR ASSY, POWER SEAT (FOR FRONT RECLINING LH)

main85820-33010iMCX10..4HC;MCX10..4FC..XLS199508

5 parts on this diagram · 1 diagram in section
