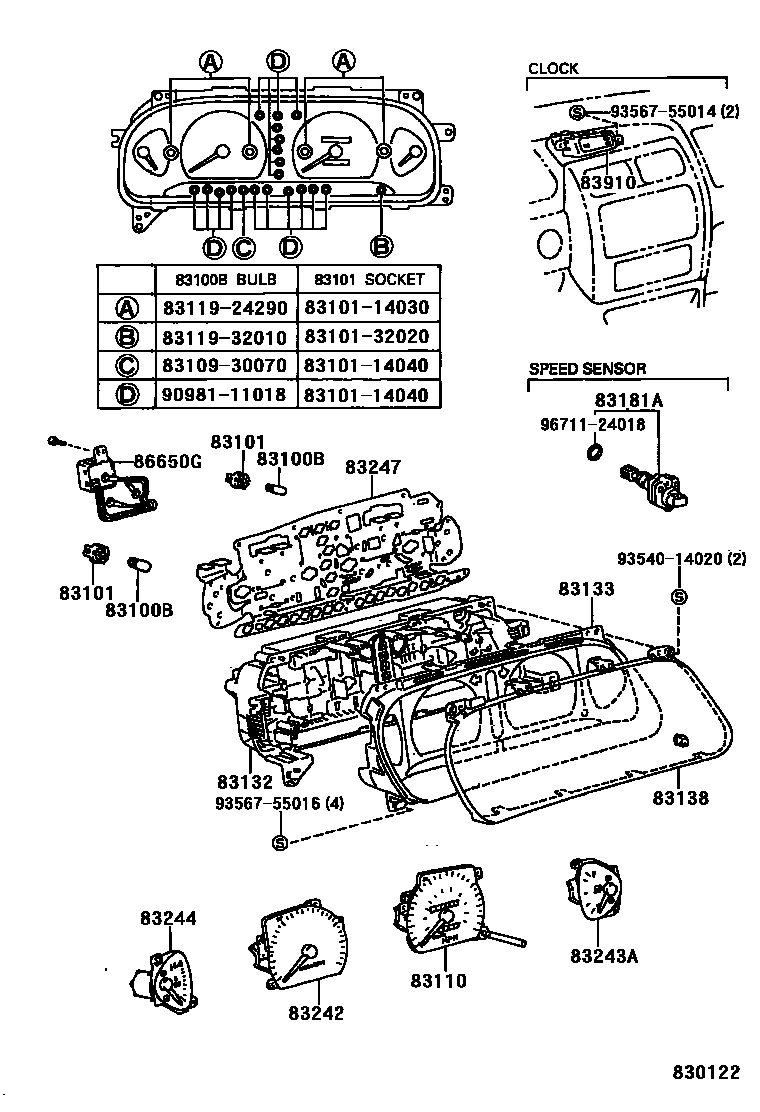

METER

0001 1 0002 1

83100BBULB, COMBINATION METER, NO.1

main83109-30070iMCX10199508-199709

14V 2.0W,W/O SOCKET

main83119-07010×4iMCX10199709

14V 3.78W

main83119-24290×4iMCX10199508-199709

14V 3.78W

main83119-32010iMCX10199508-199709

14V 3.0W

main83120-02010iMCX10199709

14V 3.0W

main83120-02020iMCX10199709

14V 2.0W

main83120-02030×19iMCX10199709

14V 1.4W,W(SOCKET)

main90981-11018×19iMCX10199508-199709

12V 1.2W W/O SOCKET

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030×4iMCX10199508-199709

BULB;14V 3.78W

main83101-14040×20iMCX10199508-199709

BULB;14V 1.4W,2.0W

main83101-32020iMCX10199508-199709

BULB;14V 3.0W

83110SPEEDOMETER ASSY

main83220-07010iMCX10199508-199709

main83220-07011iMCX10199709

83132CASE, COMBINATION METER

main83841-07010iMCX10199508-199709

main83841-07011iMCX10199709

83133PLATE, COMBINATION METER, NO.1

main83133-07010iMCX10199508

83138GLASS, SPEEDOMETER

main83138-07010iMCX10199508

83181ASENSOR, SPEEDOMETER

main83181-12040iMCX10199508

83242TACHOMETER ASSY, ENGINE

main83242-07020iMCX10199508

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83243-07010iMCX10199508

83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER

main83873-07010iMCX10199508

83247PLATE, METER CIRCUIT

main83861-07011iMCX10199709

main83864-07010iMCX10199508-199709

83910CLOCK ASSY

main83910-AC010iMCX10..XL199709

main83910-AC050iMCX10..XLS199508

86650GBUZZER ASSY

main86650-30110iMCX10199508

9354014020

main93540-14020

9356755014

main93567-55014

9356755016

main93567-55016

9671124018

main96711-24018

17 parts on this diagram · 2 diagrams in section
