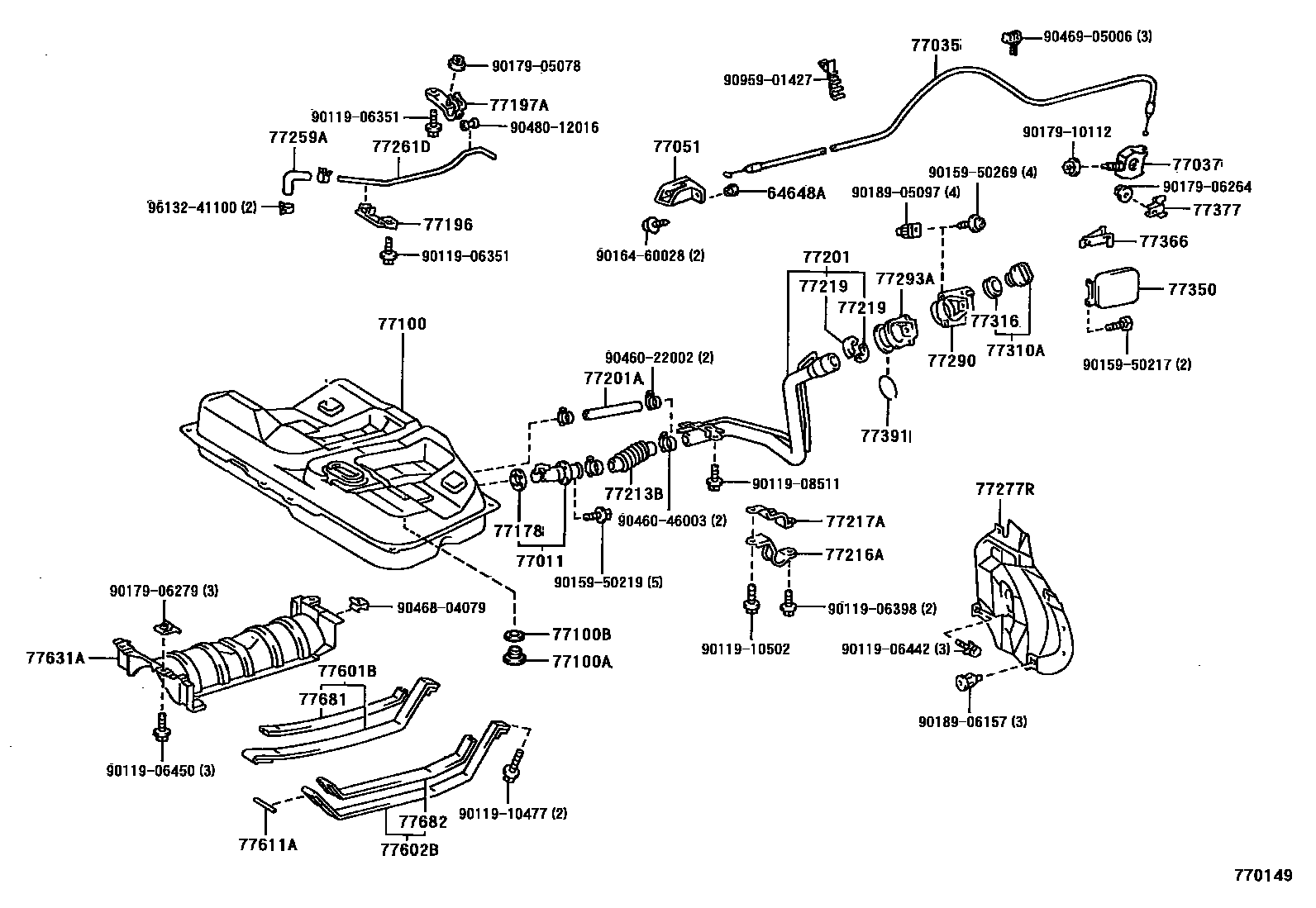

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1

64648AGROMMET, LUGGAGE DOOR LOCK OPENER

main64648-AC010iMCX10199508-199709

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-41010iMCX10199508-199709

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-AC010iMCX10199508

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-06010iMCX10199508

77051LEVER SUB-ASSY, FUEL LID OPEN

main77050-06010-A0iMCX10..XLS199709

IVORY,TRIM44

sub77050-06010

main77050-06010-B2iMCX10..XLS199508

BLUISH GRAY/BLACK,TRIM2#

sub77050-06010

main77050-06010-E3iMCX10..XLS199608

QUARTZ/BLACK,TRIM43

sub77050-06010

main77050-06010-E3iMCX10199508-199608

QUARTZ/BLACK,TRIM41

sub77050-06010

main77050-06010-E4iMCX10199508-199709

LT.ADOBE/BLACK,TRIM42

sub77050-06010

77100TANK ASSY, FUEL

main77001-06901iMCX10199508-199709

main77001-07010iMCX10199709

sub77001-39405

77100APLUG(FOR FUEL TANK)

main90341-20004iMCX10199508

77100BGASKET(FOR FUEL TANK)

main90430-20007iMCX10199508

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-20030iMCX10199508-199709

77196CLAMP, EVAPORATION VENT TUBE, NO.1

main77196-33020iMCX10199508-199709

77197ACLAMP, EVAPORATION VENT TUBE, NO.2

main77197-33020iMCX10199508-199709

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-41020iMCX10199508-199709

main77201-41040iMCX10199709

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main90445-22024iMCX10199508-199709

L=220

main95313-13024iMCX10199709

L=240

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-33020iMCX10199508-199709

main77213-33060iMCX10199709

L=224

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-33010iMCX10199508-199709

main77216-41020iMCX10199709

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-33010iMCX10199508-199709

main77217-41010iMCX10199709

77219COVER, FUEL TANK FILLER PIPE

main77219-32030iMCX10199508

77259AHOSE, FUEL(FOR BREATHER TUBE)

main77259-33010iMCX10199508-199709

77261TUBE SUB-ASSY, FUEL EMISSION

main77261-07010iMCX10199508-199709

main77261-07040iMCX10199709

77261DTUBE, FUEL TANK TO CANISTER

main77262-33010iMCX10199508-199709

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-AC010iMCX10199508

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-AC010iMCX10199508

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-AC010iMCX10199508

77310ACAP ASSY, FUEL TANK

main77310-06011iMCX10199508

sub77310-48010

77316GASKET, FUEL TANK CAP

main77316-06010iMCX10199508-199608

main77316-06010iMCX10199608-199711

(L)

main77316-16010iMCX10199608-199711

(J)

77350LID ASSY, FUEL FILLER OPENING

main77350-41010iMCX10199508

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-22020iMCX10199508-199808

main77360-33020iMCX10199808

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-20050iMCX10199508

77391RING, FUEL INLET BOX

main77391-16011iMCX10199508

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-33010iMCX10199508

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-33010iMCX10199508

77611APIN (FOR FUEL TANK BAND)

main90250-08019iMCX10199508

77631APROTECTOR, FUEL TANK, LOWER CENTER

main77631-06010iMCX10199508

sub77631-06011

77681SEAT, FUEL TANK BAND, RH

main77681-32060iMCX10199508

77682SEAT, FUEL TANK BAND, LH

main77681-32060iMCX10199508

9011906351

main90119-06351

9011906398

main90119-06398

9011906442

main90119-06442

9011906450

main90119-06450

9011908511

main90119-08511

9011910477

main90119-10477

9011910502

main90119-10502

9015950217

main90159-50217

9015950219

main90159-50219

9015950269

main90159-50269

9016460028

main90164-60028

9017905078

main90179-05078

9017906264

main90179-06264

9017906279

main90179-06279

9017910112

main90179-10112

9018905097

main90189-05097

9018906157

main90189-06157

9046022002

main90460-22002

9046046003

main90460-46003

9046804079

main90468-04079

9046905006

main90469-05006

9048012016

main90480-12016

9095901427

main90959-01427

9613241100

main96132-41100

59 parts on this diagram · 4 diagrams in section
