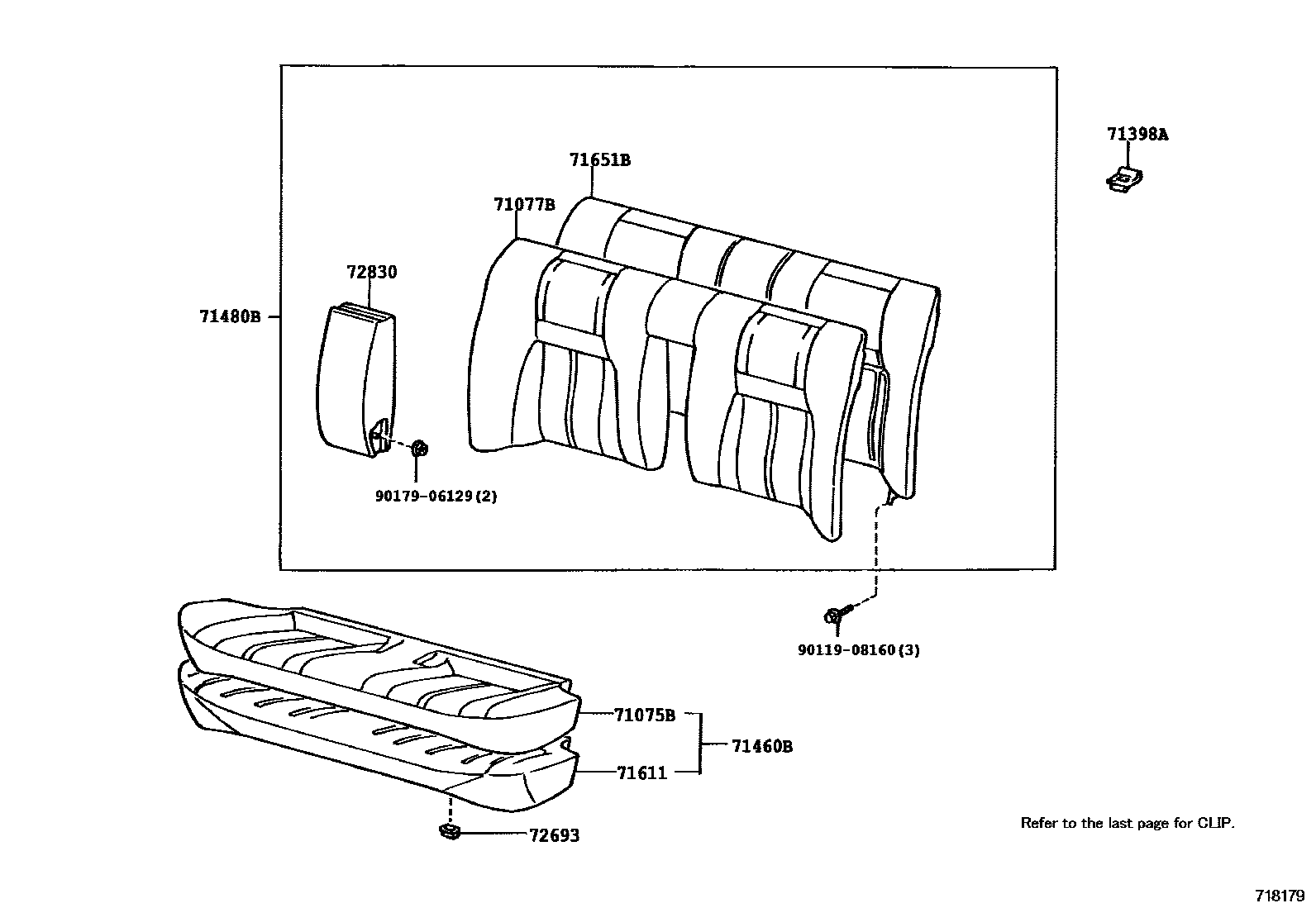

REAR SEAT & SEAT TRACK

0001 1 0002 1CLIP

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-07010-A0iMCX10..XL199709

IVORY,TRIM44

main71075-07010-B0iMCX10..XL199709

BLUE GRAY,TRIM2#

main71075-07010-E0iMCX10..XL199709

QUARTZ,TRIM43

main71075-07020-A0iMCX10..XLS199709

IVORY,TRIM44

main71075-07020-B0iMCX10..XLS199709

BLUISH GRAY,TRIM2#

main71075-07020-E0iMCX10..XLS199709

QUARTZ,TRIM43

main71075-07030-A0iMCX10..XLS199709

LEATHER PACKAGE,IVORY,TRIM44

main71075-07030-C0iMCX10..XLS199709

BLACK,TRIM2#

main71075-07030-E0iMCX10..XLS199709

LEATHER PACKAGE,QUARTZ,TRIM43

main71075-AC020-B0iMCX10199508-199608

GRAY,TRIM2#

main71075-AC020-E2iMCX10199508-199608

QUARTZ,TRIM41

main71075-AC020-E3iMCX10199508-199608

ADOBE,TRIM42

main71075-AC021-B1iMCX10199608-199709

BLUISH GRAY,TRIM2#

main71075-AC021-E4iMCX10199608-199709

QUARTZ,TRIM43

main71075-AC021-E5iMCX10199608-199709

ADOBE,TRIM42

main71075-AC030-C1iMCX10199508-199709

W(LEATHER SEAT),BLACK,TRIM2#

main71075-AC030-E2iMCX10199508-199709

W(LEATHER SEAT),QUARTZ,TRIM4#

main71075-AC030-E3iMCX10199508-199709

W(LEATHER SEAT),ADOBE,TRIM4#

71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)

main71077-07010-A0iMCX10..XL199709

IVORY,TRIM44

main71077-07010-B0iMCX10..XL199709

BLUE GRAY,TRIM2#

main71077-07010-E0iMCX10..XL199709

QUARTZ,TRIM43

main71077-AC040-B0iMCX10199508-199608

GRAY,TRIM2#

main71077-AC040-E2iMCX10199508-199608

QUARTZ,TRIM41

main71077-AC040-E3iMCX10199508-199608

ADOBE,TRIM42

main71077-AC041-A0iMCX10..XLS199709

IVORY,TRIM44

main71077-AC041-B1iMCX10..XLS199608

BLUISH GRAY,TRIM2#

main71077-AC041-E4iMCX10..XLS199608

QUARTZ,TRIM43

main71077-AC041-E5iMCX10199608-199709

ADOBE,TRIM42

main71077-AC050-A0iMCX10..XLS199709

W(LEATHER SEAT),IVORY,TRIM44

main71077-AC050-C1iMCX10..XLS199508

W(LEATHER SEAT),BLACK,TRIM2#

main71077-AC050-E2iMCX10199508-199709

W(LEATHER SEAT),QUARTZ,TRIM4#

main71077-AC050-E3iMCX10199508-199709

W(LEATHER SEAT),ADOBE,TRIM4#

71398AHOLDER, REAR SEATBACK

main71398-AC010×3iMCX10199508

71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

main71460-07010-C1iMCX10..XL199709

***,BLACK,TRIM2#

main71460-07010-E1iMCX10..XL199709

***,ROSE STONE,TRIM43

main71460-07010-E3iMCX10..XL199709

***,IVORY,TRIM44

main71460-07020-C0iMCX10..XLS199709

***,BLACK,TRIM2#

main71460-07020-E0iMCX10..XLS199709

***,ROSE STONE,TRIM43

main71460-07020-E2iMCX10..XLS199709

***,IVORY,TRIM44

main71460-07030-C0iMCX10..XLS199709

***,LEATHER PACKAGE,BLACK,TRIM2#

main71460-07030-E0iMCX10..XLS199709

***,LEATHER PACKAGE,ROSE STONE,TRIM43

main71460-07030-E2iMCX10..XLS199709

***,LEATHER PACKAGE,IVORY,TRIM44

main71460-AC020-C0iMCX10199508-199608

***,BLACK,TRIM2#

main71460-AC020-E1iMCX10199508-199608

***,DK. ROSE,TRIM41

main71460-AC020-E3iMCX10199508-199608

***,DK. ADOBE,TRIM42

main71460-AC021-C1iMCX10199608-199709

***,BLUISH GRAY,TRIM2#

main71460-AC021-E4iMCX10199608-199709

***,DK. ADOBE,TRIM42

main71460-AC021-E6iMCX10199608-199709

***,ROSE STONE,TRIM43

main71460-AC030-C0iMCX10199508-199709

***,W(LEATHER SEAT),BLACK,TRIM2#

main71460-AC030-E1iMCX10199508-199608

***,W(LEATHER SEAT),DK. ROSE,TRIM4#

main71460-AC030-E3iMCX10199508-199709

***,W(LEATHER SEAT),DK. ADOBE,TRIM4#

main71460-AC030-E4iMCX10199608-199709

***,W(LEATHER SEAT),ROSE STONE,TRIM4#

71480BBACK ASSY, REAR SEAT (FOR BENCH TYPE)

main71480-07010-C1iMCX10..XL199709

***,BLACK,TRIM2#

main71480-07010-E1iMCX10..XL199709

***,ROSE STONE,TRIM43

main71480-07010-E3iMCX10..XL199709

***,IVORY,TRIM44

main71480-AC040-C0iMCX10199508-199608

***,BLACK,TRIM2#

main71480-AC040-E0iMCX10199508-199608

***,DK. ROSE,TRIM41

main71480-AC040-E1iMCX10199508-199608

***,DK. ADOBE,TRIM42

main71480-AC041-C1iMCX10199608-199709

***,BLUISH GRAY,TRIM2#

main71480-AC041-C2iMCX10..XLS199709

***,BLACK,TRIM2#

main71480-AC041-E2iMCX10199608-199709

***,DK. ADOBE,TRIM4#

main71480-AC041-E3iMCX10199608-199709

***,ROSE STONE,TRIM4#

main71480-AC041-E4iMCX10..XLS199709

***,ROSE STONE,TRIM43

main71480-AC041-E5iMCX10..XLS199709

***,IVORY,TRIM44

main71480-AC050-C0iMCX10199508-199709

***,W(LEATHER SEAT),BLACK,TRIM2#

main71480-AC050-C1iMCX10..XLS199709

***,W(LEATHER SEAT),BLACK,TRIM2#

main71480-AC050-E0iMCX10199508-199608

***,W(LEATHER SEAT),DK. ROSE,TRIM4#

main71480-AC050-E1iMCX10199508-199709

***,W(LEATHER SEAT),DK. ADOBE,TRIM4#

main71480-AC050-E2iMCX10199608-199709

***,W(LEATHER SEAT),ROSE ADOBE,TRIM4#

main71480-AC050-E3iMCX10..XLS199709

***,W(LEATHER SEAT),ROSE STONE,TRIM43

main71480-AC050-E4iMCX10..XLS199709

***,W(LEATHER SEAT),IVORY,TRIM44

71611PAD, REAR SEAT CUSHION

main71503-07010iMCX10199709

main71503-AC010iMCX10199508-199709

71651BPAD, REAR SEATBACK(FOR BENCH TYPE)

main71507-AC010iMCX10199508

72693HOOK, REAR SEAT CUSHION LOCK

main72693-32020×3iMCX10199508

72830ARMREST ASSY, REAR SEAT, CENTER

main72830-07020-A0iMCX10..XL199709

IVORY,TRIM44

main72830-07020-B0iMCX10..XL199709

BLUE GRAY,TRIM2#

main72830-07020-E0iMCX10..XL199709

QUARTZ,TRIM43

main72830-AC020-B0iMCX10199508-199608

GRAY,TRIM2#

main72830-AC020-E0iMCX10199508-199608

QUARTZ,TRIM41

main72830-AC020-E1iMCX10199508-199608

ADOBE,TRIM42

main72830-AC021-A0iMCX10..XLS199709

IVORY,TRIM44

main72830-AC021-B1iMCX10..XLS199608

BLUISH GRAY,TRIM2#

main72830-AC021-E4iMCX10..XLS199608

QUARTZ,TRIM43

main72830-AC021-E5iMCX10199608-199709

ADOBE,TRIM42

main72830-AC030-A0iMCX10..XLS199709

W(LEATHER SEAT),IVORY,TRIM44

main72830-AC030-C1iMCX10..XLS199508

W(LEATHER SEAT),BLACK,TRIM2#

main72830-AC030-E0iMCX10..XLS199709

W(LEATHER SEAT),DK. ROSE,TRIM43

main72830-AC030-E1iMCX10199508-199709

W(LEATHER SEAT),ADOBE,TRIM4#

9011908160

main90119-08160

9017906129

main90179-06129

11 parts on this diagram · 2 diagrams in section
