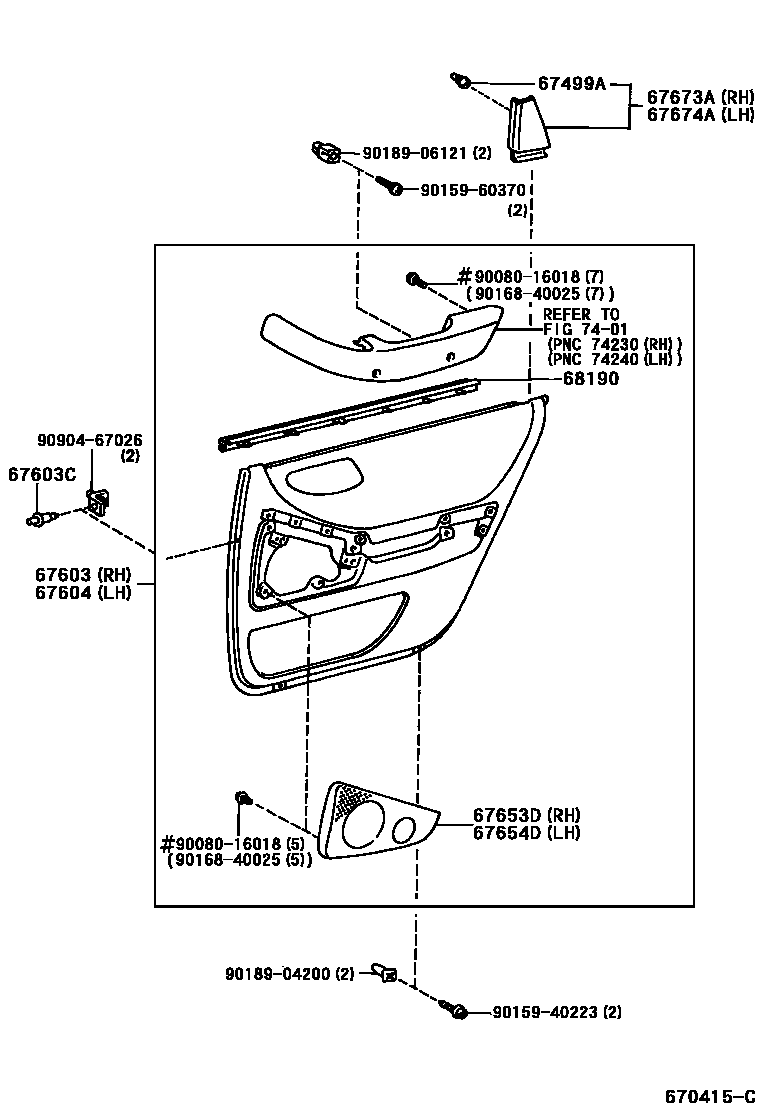

REAR DOOR PANEL & GLASS
67499ARETAINER, REAR DOOR LOWER FRAME BRACKET GARNISH
67603BOARD SUB-ASSY, REAR DOOR TRIM, RH
GRAY,TRIM2#
QUARTZ,TRIM41
ADOBE,TRIM42
LEATHER PACKAGE,BLACK,TRIM2#
LEATHER PACKAGE,DK. ROSE,TRIM4#
LEATHER PACKAGE,ADOBE,TRIM4#
LEATHER PACKAGE,ROSE STONE,TRIM4#
LEATHER PACKAGE,ROSE STONE,TRIM43
LEATHER PACKAGE,SANDAL WOOD,TRIM44
BLACK,TRIM2#
DK. ADOBE,TRIM42
ROSE STONE,TRIM43
ROSE STONE,TRIM43
SANDAL WOOD,TRIM44
BLACK,TRIM2#
ROSE STONE,TRIM43
SANDAL WOOD,TRIM44
67603CCAP(FOR REAR DOOR TRIM BOARD)
BLACK,TRIM2#
IVORY,TRIM44
QUARTZ,TRIM43
LT. ADOBE,TRIM42
67604BOARD SUB-ASSY, REAR DOOR TRIM, LH
GRAY,TRIM2#
QUARTZ,TRIM41
ADOBE,TRIM42
LEATHER PACKAGE,BLACK,TRIM2#
LEATHER PACKAGE,DK. ROSE,TRIM4#
LEATHER PACKAGE,ADOBE,TRIM4#
LEATHER PACKAGE,ROSE STONE,TRIM4#
LEATHER PACKAGE,ROSE STONE,TRIM43
LEATHER PACKAGE,SANDAL WOOD,TRIM44
BLACK,TRIM2#
DK. ADOBE,TRIM42
ROSE STONE,TRIM43
ROSE STONE,TRIM43
SANDAL WOOD,TRIM44
BLACK,TRIM2#
ROSE STONE,TRIM43
SANDAL WOOD,TRIM44
67653DGRILLE SUB-ASSY, REAR DOOR SPEAKER, RH
IVORY,TRIM44
BLACK,TRIM2#
QUARTZ,TRIM43
IVORY,TRIM44
BLACK,TRIM2#
DK. ROSE,TRIM43
ADOBE,TRIM42
67654DGRILLE SUB-ASSY, REAR DOOR SPEAKER, LH
IVORY,TRIM44
BLACK,TRIM2#
QUARTZ,TRIM43
IVORY,TRIM44
BLACK,TRIM2#
DK. ROSE,TRIM41
ADOBE,TRIM42
67673AGARNISH, REAR DOOR FRAME, RH
67674AGARNISH, REAR DOOR FRAME, LH
68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER
RH
LH
7401ARMREST & VISOR
9008016018
main90080-16018
9015940223
main90159-40223
9015960370
main90159-60370
9016840025
main90168-40025
9018904200
main90189-04200
9018906121
main90189-06121
9090467026
main90904-67026
17 parts on this diagram · 2 diagrams in section
