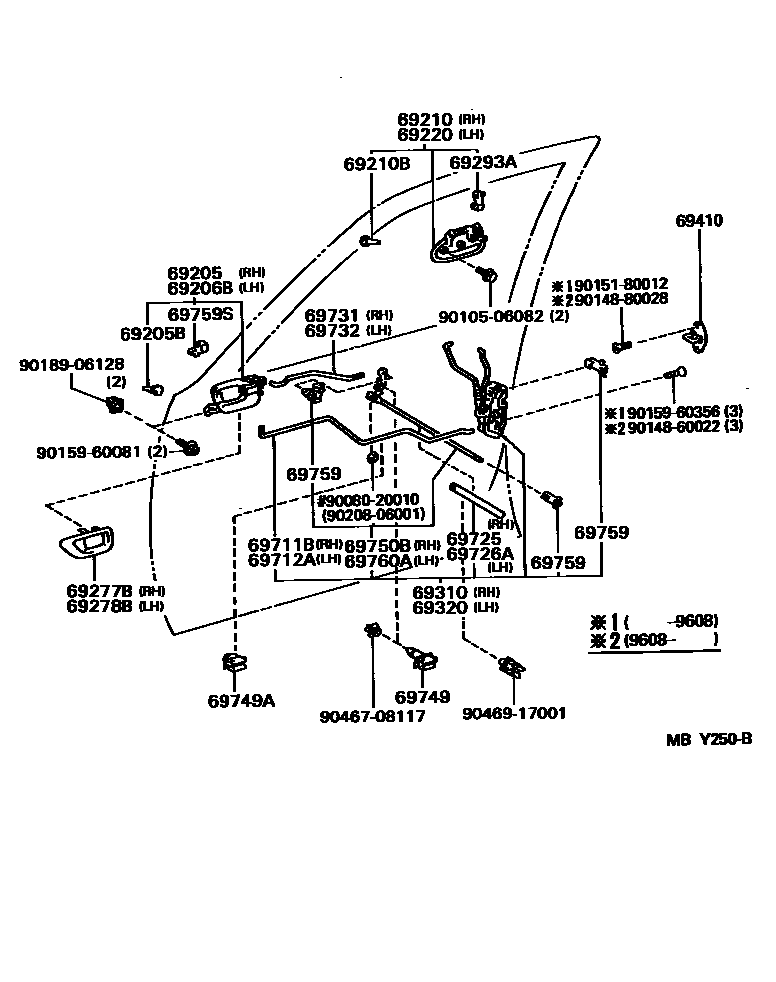

FRONT DOOR LOCK & HANDLE
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
SUPER WHITE 2,040
SU.WHITE PM,051
SLVER ME.,1C8
BLACK,202
MAGENTA MC,3L3
BEIGE ME,4M9
LT.BEIGE ME.OP.,4N5
GOLD ME.,578
GR.GREEN ME,6M3
DK.GREEN M.M.,6P2
DK.TEAL GREEN MC,751
DK.BLUE M.M.,8K0
DK.BLUE M.M.,8L3
DARK TAUPE MCOP,927
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
SUPER WHITE 2,040
SU.WHITE PM,051
BLACK,202
MAGENTA MC,3L3
BEIGE ME,4M9
GR.GREEN ME,6M3
DK.TEAL GREEN MC,751
DK.BLUE M.M.,8K0
DARK TAUPE MCOP,927
SUPER WHITE 2,040
SU.WHITE PM,051
SLVER ME.,1C8
BLACK,202
BEIGE ME,4M9
LT.BEIGE ME.OP.,4N5
GOLD ME.,578
DK.GREEN M.M.,6P2
DK.TEAL GREEN MC,751
DK.BLUE M.M.,8L3
DARK TAUPE MCOP,927
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
W(9 SPEAKER)
W(6 SPEAKER),BLACK,TRIM2#
W(6 SPEAKER),QUARTZ,TRIM41
W(6 SPEAKER),LT.ADOBE,TRIM42
W(6 SPEAKER),ROSE STONE,TRIM43
W(6 SPEAKER),SANDAL WOOD,TRIM44
BLACK,TRIM2#
QUARTZ,TRIM41
LT.ADOBE,TRIM42
ROSE STONE,TRIM43
SANDAL WOOD,TRIM44
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
W(9 SPEAKER)
W(6 SPEAKER),BLACK,TRIM2#
W(6 SPEAKER),QUARTZ,TRIM41
W(6 SPEAKER),LT.ADOBE,TRIM42
W(6 SPEAKER),ROSE STONE,TRIM43
W(6 SPEAKER),SANDAL WOOD,TRIM44
BLACK,TRIM2#
QUARTZ,TRIM41
LT.ADOBE,TRIM42
ROSE STONE,TRIM43
SANDAL WOOD,TRIM44
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
NATURAL
YELLOW
69310LOCK ASSY, FRONT DOOR, RH
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH
sub69711-AC011
69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH
sub69712-AC011
69725PROTECTOR, FRONT DOOR INSIDE LOCKING LINK, RH
69726APROTECTER, FRONT DOOR INSIDE LOCKING LINK, LH
69731LINK, FRONT DOOR INSIDE LOCKING, NO.1 RH
69732LINK, FRONT DOOR INSIDE LOCKING, NO.1 LH
69749CLAMP, FRONT DOOR LOCK LINK
69749ACLAMP, FRONT DOOR LOCK LINK, NO.1
69750BLINK ASSY, FRONT DOOR INSIDE LOCKING, RH
69759SNAP, DOOR LOCK CONTROL LINK, NO.1
GREEN
GRAY
YELLOW
BROWN
NATURAL
69759SSNAP, FRONT DOOR INSIDE HANDLE
YELLOW
69760ALINK ASSY, FRONT DOOR INSIDE LOCKING, LH
9008020010
main90080-20010
9010506082
main90105-06082
9014860022
main90148-60022
9014880028
main90148-80028
9015180012
main90151-80012
9015960081
main90159-60081
9015960356
main90159-60356
9018906128
main90189-06128
9020806001
main90208-06001
9046708117
main90467-08117
9046917001
main90469-17001
35 parts on this diagram · 1 diagram in section
