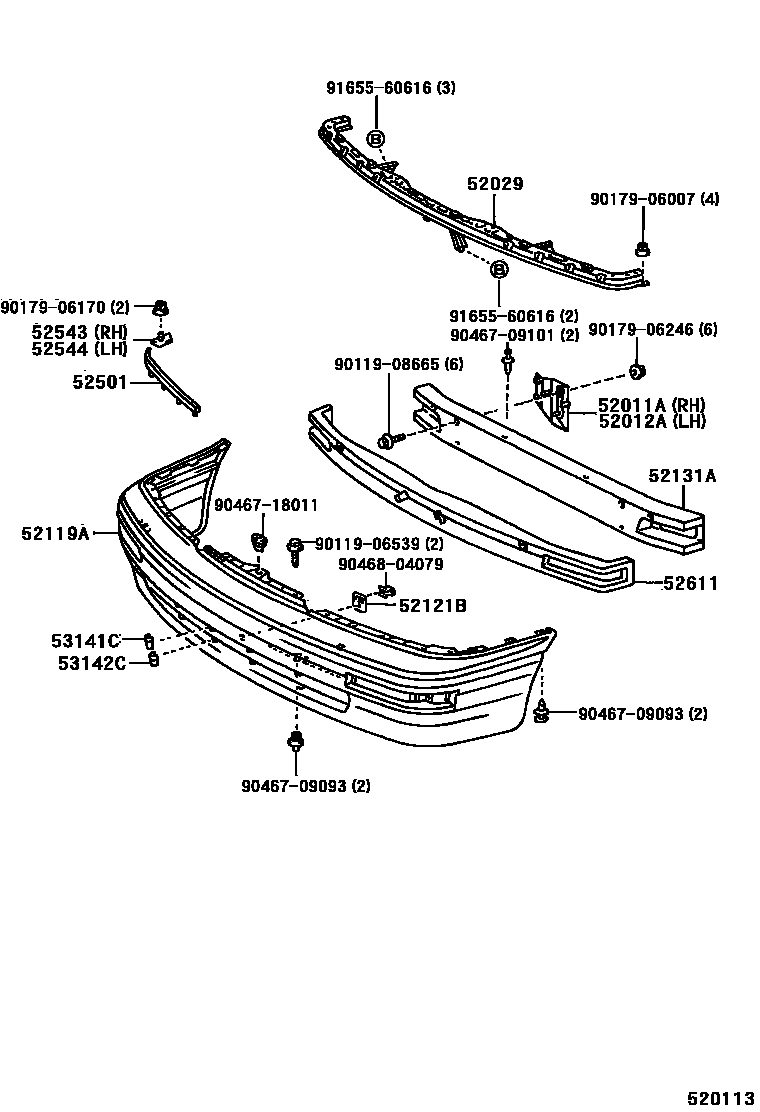

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

52011AARM SUB-ASSY, FRONT BUMPER, RH

main52011-AC010iMCX10199508-199709

52012AARM SUB-ASSY, FRONT BUMPER, LH

main52012-AC010iMCX10199508-199709

52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER

main52029-AC010iMCX10199508-199709

main52029-AC020iMCX10199709

52119ACOVER, FRONT BUMPER

main52119-AC900iMCX10199508-199709

main52119-AC903iMCX10199709-199712

main52119-AC906iMCX10199712

52121BBRACKET, FRONT LICENCE PLATE MOUNTING

main52121-AC010iMCX10199508-199709

52131AREINFORCEMENT, FRONT BUMPER

main52131-AC010iMCX10199508-199709

main52131-AC030iMCX10199709-199808

main52131-AC040iMCX10199808

52501FILLER SUB-ASSY, FRONT BUMPER

main52511-AC010iMCX10199508-199709

main52511-AC020iMCX10199709

52543SEAL, FRONT BUMPER SIDE, RH

main52543-AC010iMCX10199508

52544SEAL, FRONT BUMPER SIDE, LH

main52544-AC010iMCX10199508

52611ABSORBER, FRONT BUMPER ENERGY

main52611-AC010iMCX10199508-199709

main52611-AC020iMCX10199709

53141CGARNISH, RADIATOR GRILLE

main53141-AC010iMCX10199508-199709

53142CGARNISH, RADIATOR GRILLE, NO.2

main53142-AC010iMCX10199508-199709

9011906539

main90119-06539

9011908665

main90119-08665

9017906007

main90179-06007

9017906170

main90179-06170

9017906246

main90179-06246

9046709093

main90467-09093

9046709101

main90467-09101

9046718011

main90467-18011

9046804079

main90468-04079

9165560616

main91655-60616

22 parts on this diagram · 2 diagrams in section
