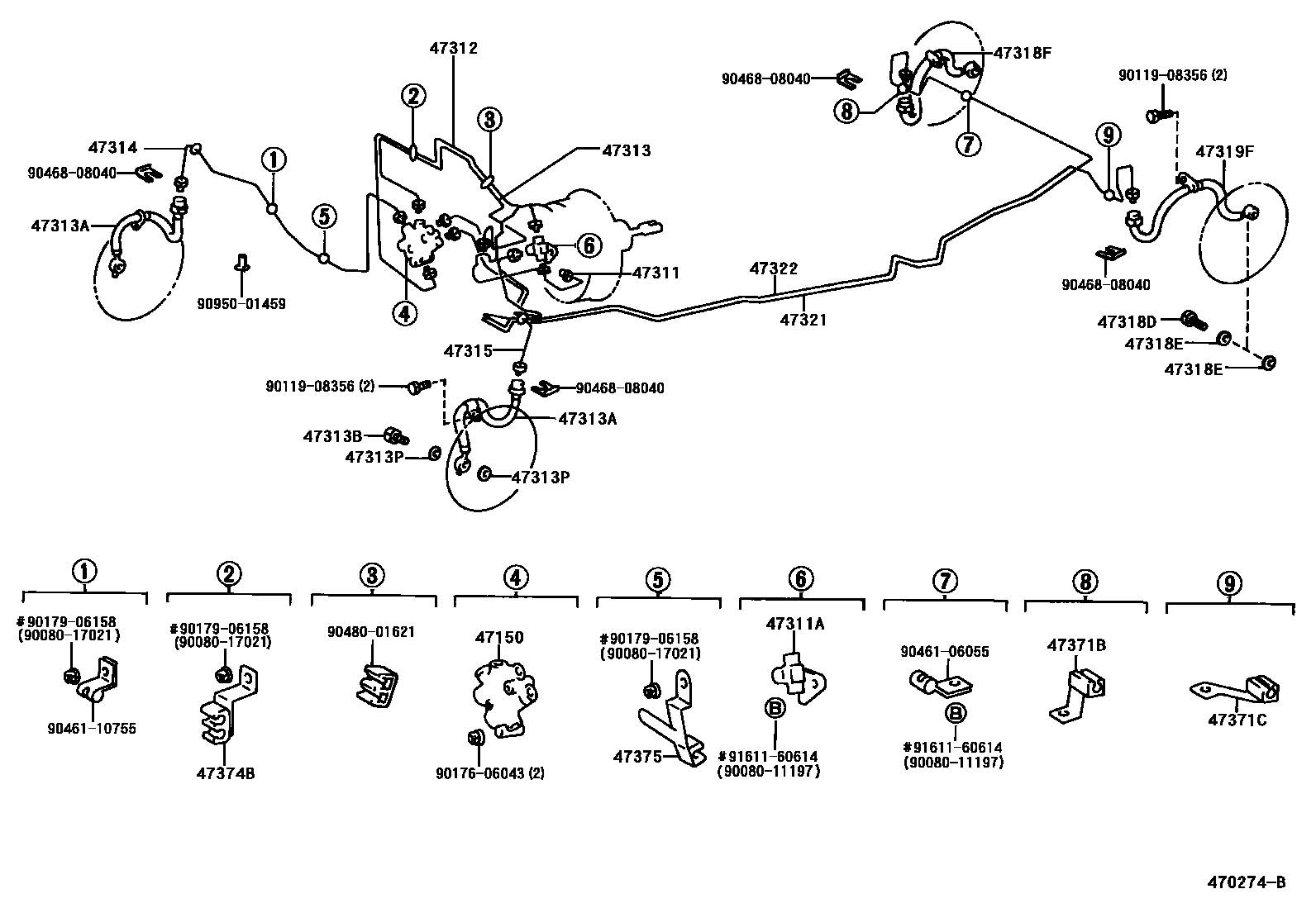

BRAKE TUBE & CLAMP

0001 1 0002 1W(ABS) 0003 1W(ABS) 0004 1W(ABS) 0005 1W(ABS)

47150VALVE ASSY, PROPORTIONING

main47150-02020iMCX10199508-199709

sub47150-16050

main47150-20240iMCX10199508-199709

W(ABS)

main47150-33010iMCX10199709

main47150-33020iMCX10199709

W(ABS)

47311TUBE, FRONT BRAKE, NO.1

main47311-07010iMCX10199508

47311AWAY(FOR FRONT BRAKE TUBE)

main90904-12025iMCX10199508

W(ABS)

main90904-13011iMCX10199508

47312TUBE, FRONT BRAKE, NO.2

main47312-06060iMCX10199508

47313TUBE, FRONT BRAKE, NO.3

main47313-06060iMCX10199508

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90080-94033iMCX10199608

RH

main90080-94034iMCX10199608

LH

main90947-02734iMCX10199508-199608

RH

main90947-02736iMCX10199508-199608

LH

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015iMCX10199508

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main90430-10074iMCX10199508

47314TUBE, FRONT BRAKE, NO.4

main47314-06010iMCX10199508-199608

main47314-07010iMCX10199608

47315TUBE, FRONT BRAKE, NO.5

main47315-06010iMCX10199508-199608

main47315-06050iMCX10199508-199608

W(ABS)

main47315-06070iMCX10199608

main47315-07010iMCX10199608

W(ABS)

47318TUBE, FRONT BRAKE, NO.8

main47318-06020iMCX10199608

sub47318-06070

main47318-06030iMCX10199508-199608

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10015iMCX10199508

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main90430-10074iMCX10199508

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90080-94018iMCX10199508

47319TUBE, FRONT BRAKE, NO.9

main47319-06030iMCX10199508-199608

main47319-07020iMCX10199608

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90080-94019iMCX10199508

47321TUBE, REAR BRAKE, NO.1

main47321-07010iMCX10199508

47322TUBE, REAR BRAKE, NO.2

main47322-07010iMCX10199508

47371BCLAMP, BRAKE TUBE, NO.6

main47371-32130iMCX10199508

47371CCLAMP, BRAKE TUBE, NO.7

main47371-32140iMCX10199508

47374BCLAMP, BRAKE TUBE, NO.4

main47371-33130iMCX10199608

main47371-33210iMCX10199608

W(ABS)

main47372-50090iMCX10199508-199608

47375CLAMP, BRAKE TUBE, NO.5

main47371-33060iMCX10199508

9008011197

main90080-11197

9008017021

main90080-17021

9011908356

main90119-08356

9017606043

main90176-06043

9017906158

main90179-06158

9046106055

main90461-06055

9046110755

main90461-10755

9046808040

main90468-08040

9048001621

main90480-01621

9095001459

main90950-01459

9161160614

main91611-60614

33 parts on this diagram · 5 diagrams in section
