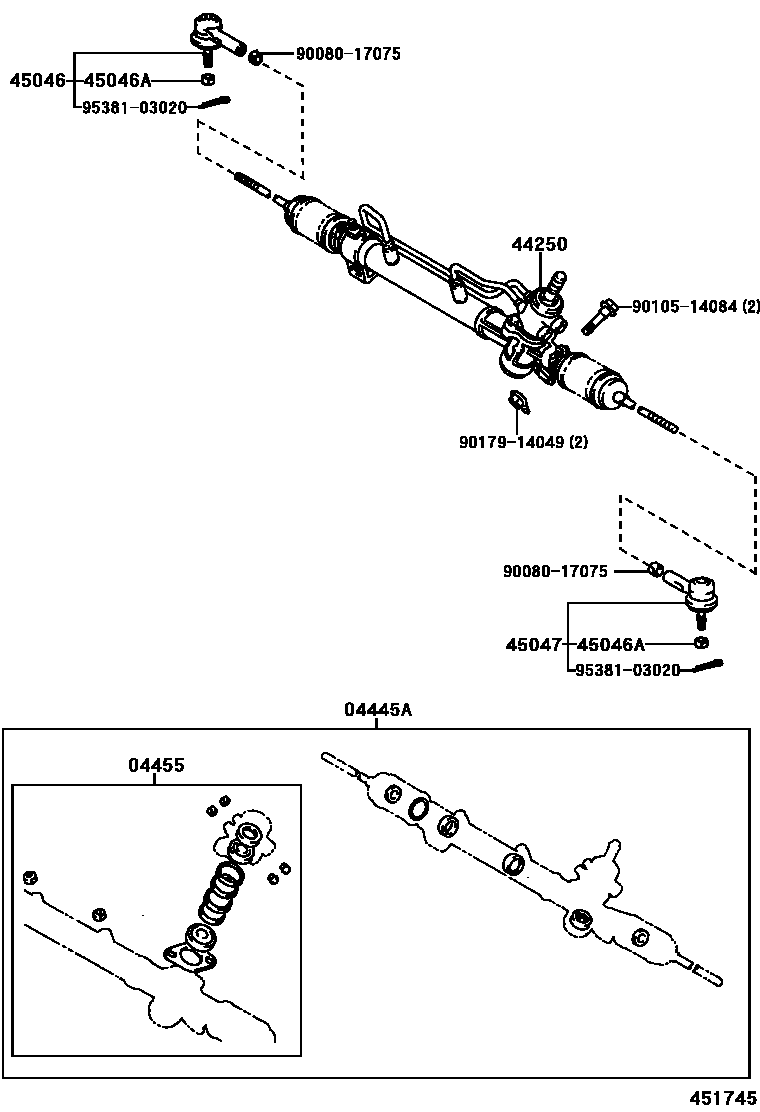

FRONT STEERING GEAR & LINK

0001 1 0002 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-07010iMCX10199508-199608

sub04445-07020

main04445-07020iMCX10199608-199908

sub04445-07040

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-07010iMCX10199508

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-07030iMCX10199508-199908

sub44250-06090

45046END SUB-ASSY, TIE ROD, RH

main45046-09020iMCX10199508

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iMCX10199508

45047END SUB-ASSY, TIE ROD, LH

main45046-09020iMCX10199508

9008017075

main90080-17075

9010514084

main90105-14084

9017914049

main90179-14049

9538103020

main95381-03020

10 parts on this diagram · 2 diagrams in section
