REAR AXLE SHAFT & HUB

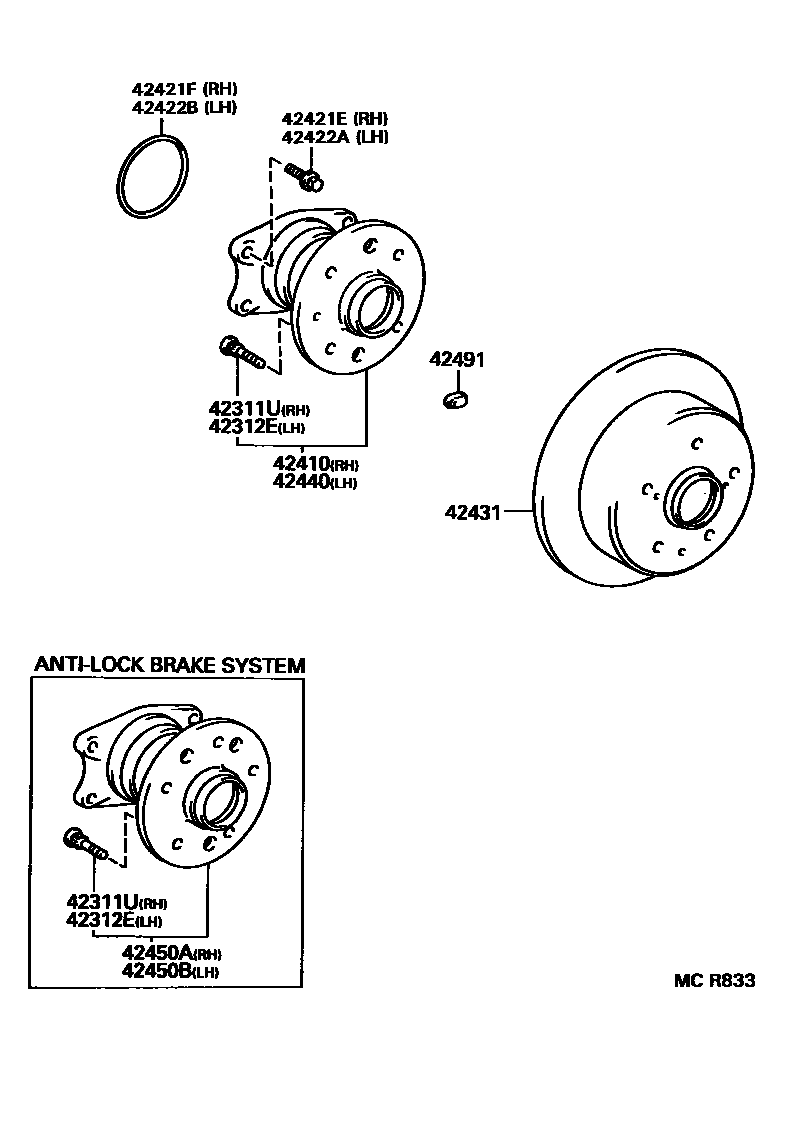

Parts diagram

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02047×5i199508

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02047×5i199508

42410HUB & BEARING ASSY, REAR AXLE, RH

main42410-06010i199508-199604

main42410-06020i199604-199908

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-10124×4i199508

42421FRING, O (FOR REAR AXLE BEARING CASE RH)

main90301-63003i199508

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-10124×4i199508

42422BRING, O (FOR REAR AXLE BEARING CASE LH)

main90301-63003i199508

42431DISC, REAR

main42431-07010×2i199508

42440HUB & BEARING ASSY, REAR AXLE, LH

main42410-06010i199508-199604

main42410-06020i199604-199908

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-06010i199508-199908

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42450-06010i199508-199908

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-22020×2i199508

12 parts on this diagram · 1 diagram in section
