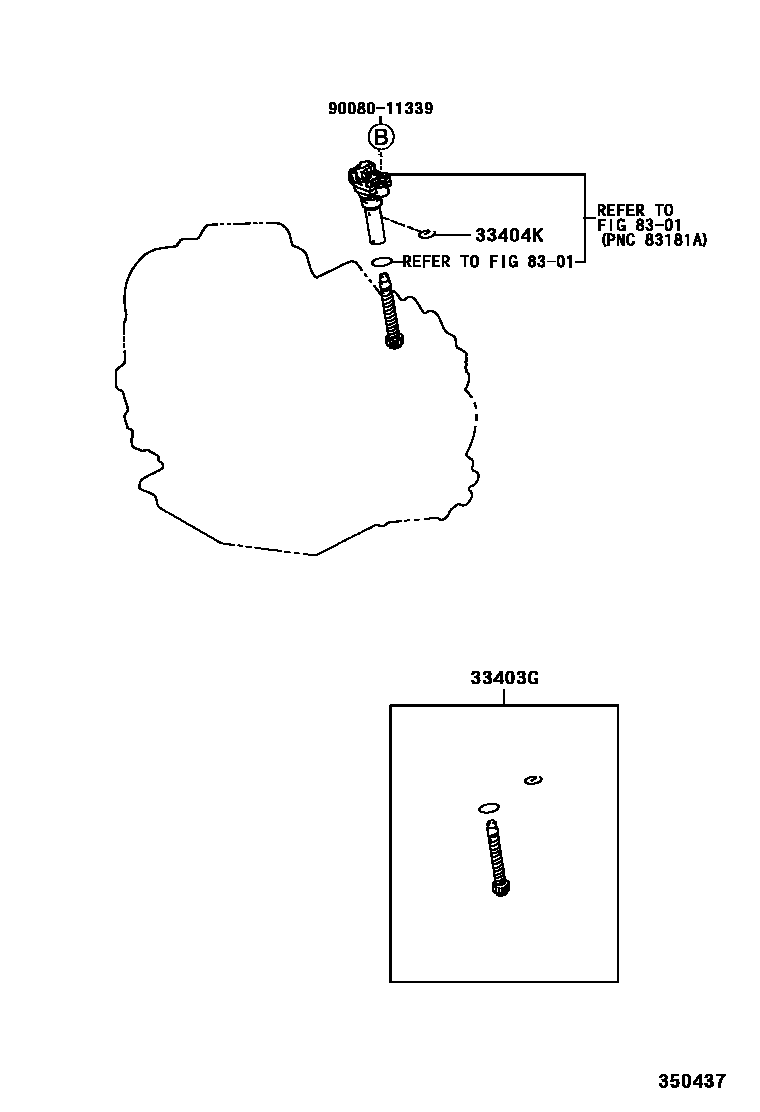

SPEEDOMETER DRIVEN GEAR (ATM)

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-39475iMCX10199508

N=24,MARK 24:30

33404KCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iMCX10199508

8301METER

→ Go to FIG 83-01

9008011339

main90080-11339

4 parts on this diagram · 1 diagram in section
