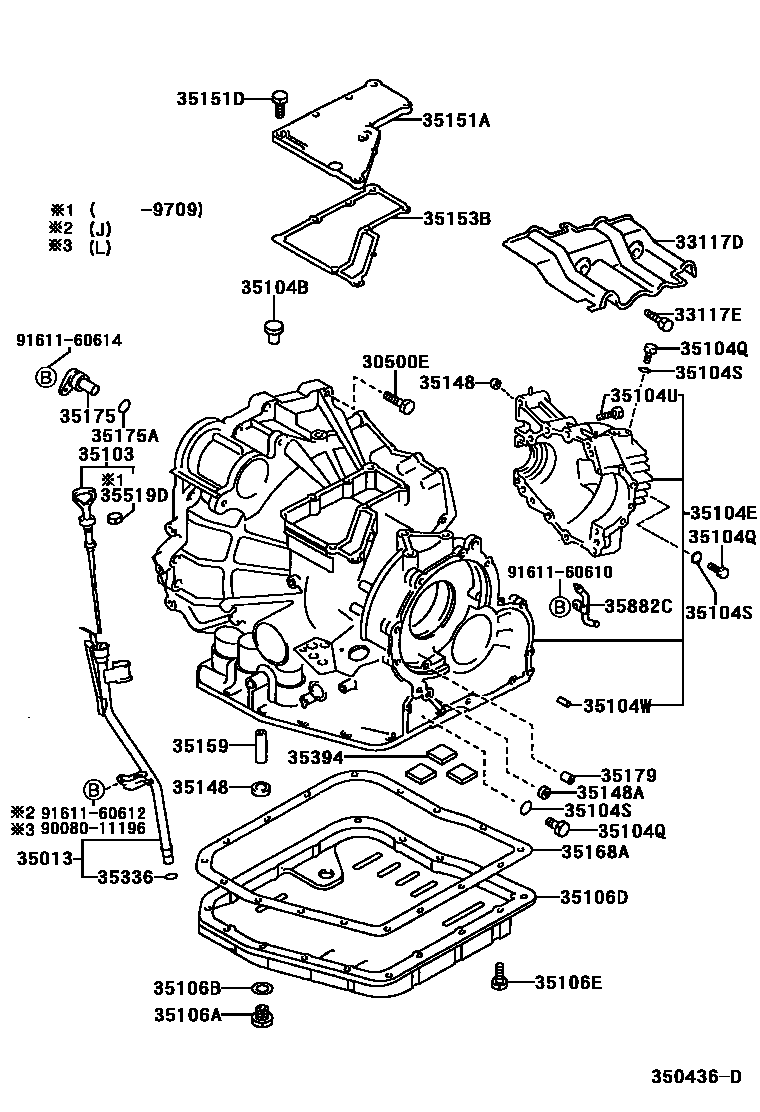

TRANSMISSION CASE & OIL PAN (ATM)

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90080-11310×4iMCX10199904

*12-1.25PX55-30,(L)

main90080-11424iMCX10199904

*12-1.25PX65-30,(L)

main90119-12168×4iMCX10199904

*12-1.25PX55-30,(J)

main91619-61265iMCX10199904

*12-1.25PX65-30,(J)

main92412-H1055iMCX10199508

*10-1.25PX55-30

33117DPROTECTOR, AUTOMATIC TRANSMISSION CASE

main33117-07010iMCX10199508

33117EBOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR)

main90080-10083×2iMCX10199711

(L)

main90105-08040×2iMCX10199508-199711

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-06030iMCX10199508-199608

main35013-06040iMCX10199608

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-33080iMCX10199508-199608

main35103-33120iMCX10199608-199702

main35103-33160iMCX10199702

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03001iMCX10199508

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-33901iMCX10199508-199808

main35104-33903iMCX10199808

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001×3iMCX10199508

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196×3iMCX10199508

35104UBOLT (FOR TRANSAXLE CASE)

main90105-10222×6iMCX10199508

*10-1.25PX65-30

main90105-10223×2iMCX10199508

*10-1.25PX75-30

main90105-10224×2iMCX10199508

*10-1.25PX100-30

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90250-10232×2iMCX10199508-199709

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-18016iMCX10199508

35106BGASKET, DRAIN PLUG (ATM)

main90430-18008iMCX10199508

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-33010iMCX10199508-199702

main35106-33020iMCX10199702

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173×17iMCX10199508

35148GASKET, GOVERNOR APPLY, NO.1

main35148-16010×2iMCX10199508-199608

35148AGASKET, GOVERNOR APPLY, NO.2

main35148-16010iMCX10199508

35151ACOVER, TRANSAXLE CASE, UPPER

main35151-33020iMCX10199508-199706

main35151-33021iMCX10199706-199709

main35151-33022iMCX10199709

35151DBOLT (FOR TRANSAXLE CASE UPPER COVER)

main90105-06113×8iMCX10199508

*6-1.00PX20-18

main90109-08235iMCX10199508

*10-1.25PX30-22

35153BGASKET, TRANSAXLE CASE UPPER COVER

main35153-33020iMCX10199508

35159GASKET, BRAKE DRUM

main35159-32011iMCX10199508

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-33010iMCX10199508-199611

main35168-33030iMCX10199611

35175CAP, TRANSAXLE CASE, NO.2

main35175-33010iMCX10199508

35175ARING, O (FOR TRANSAXLE CASE CAP)

main90301-16006iMCX10199508

35179GASKET, OVERDRIVE BRAKE

main35179-32010iMCX10199508

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iMCX10199508

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×3iMCX10199508

35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION

main35519-32040iMCX10199508-199709

35882CTUBE, DIFFERENTIAL GEAR LUBE APPLY

main35882-33020iMCX10199508

9008011196

main90080-11196

9161160610

main91611-60610

9161160612

main91611-60612

9161160614

main91611-60614

33 parts on this diagram · 1 diagram in section
