TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

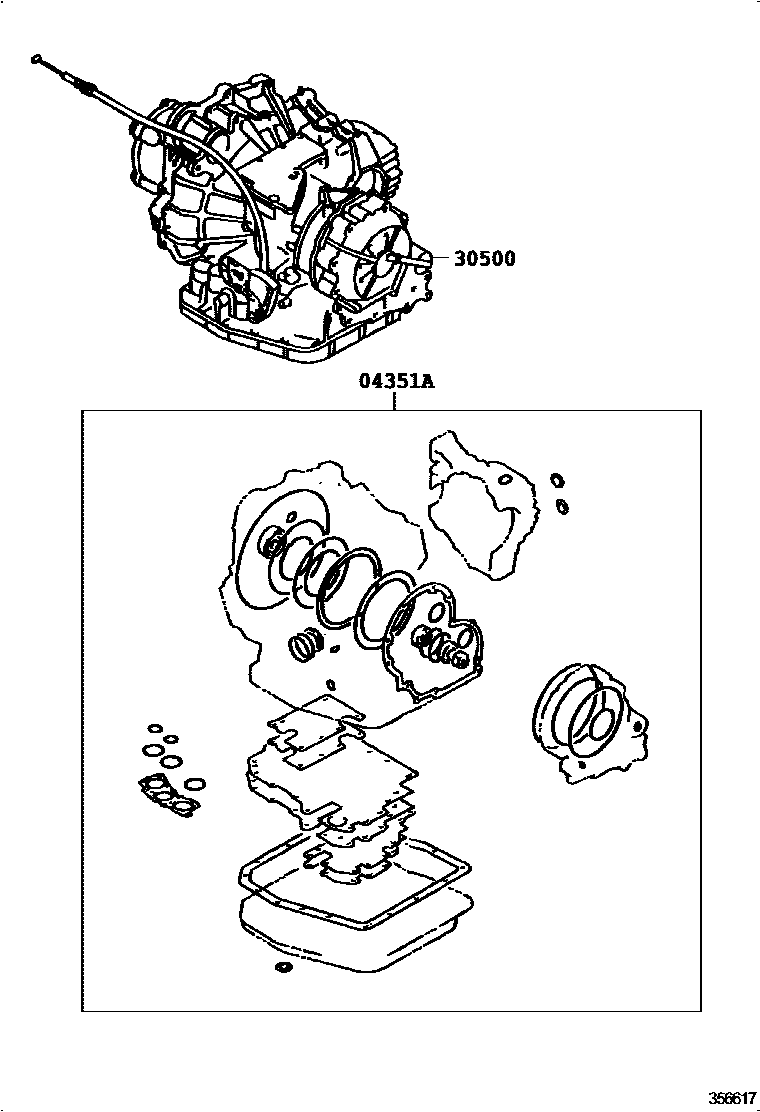

Parts diagram

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-33031i199508-199608

main04351-33032i199608

30500TRANSAXLE ASSY, AUTOMATIC

main30500-33201i199508-199511

main30500-33202i199511-199608

main30500-33210i199608-199702

main30500-33211i199702

main30500-41021i199508-199511

main30500-41022i199511-199608

main30500-41050i199608-199709

main30500-41051i199709

2 parts on this diagram · 1 diagram in section
