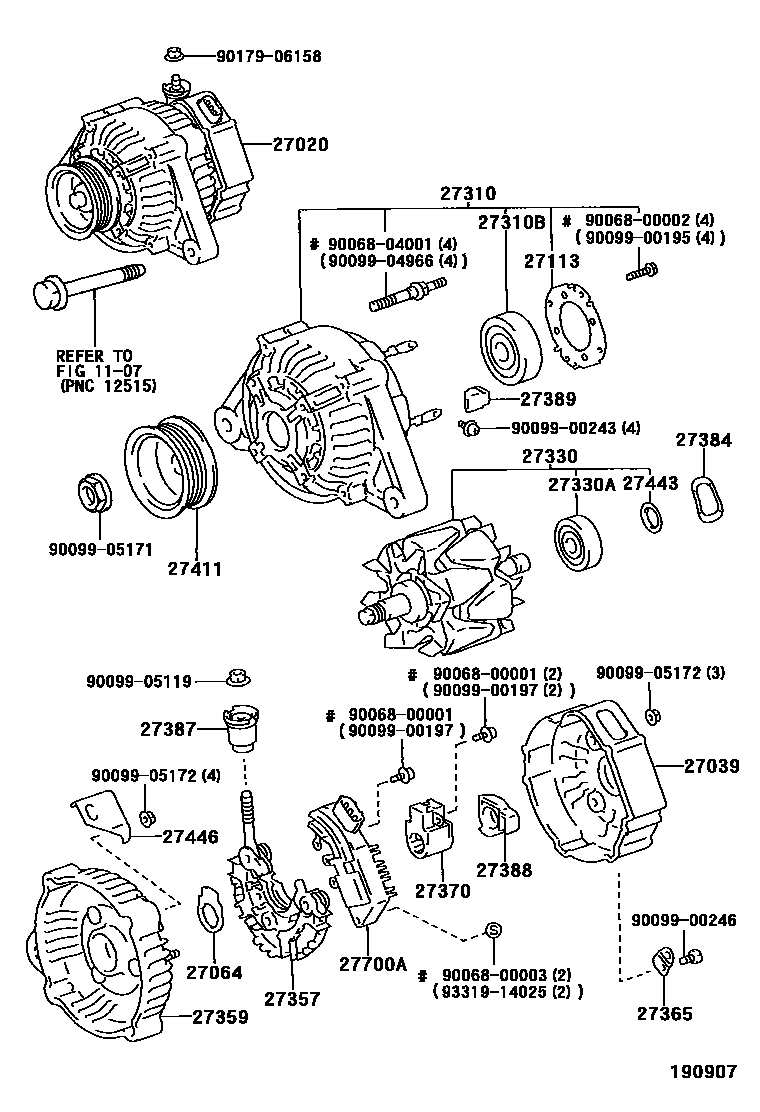

ALTERNATOR
1107
27020ALTERNATOR ASSY
12V 80A
27039COVER, ALTERNATOR REAR END
27064SEAL, ALTERNATOR PLATE
27113PLATE, BEARING RETAINER, ALTERNATOR
27310FRAME ASSY, DRIVE END, ALTERNATOR
27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)
sub90099-10192
27330ROTOR ASSY, ALTERNATOR
27330ABEARING(FOR ALTERNATOR ROTOR)
27357HOLDER, ALTERNATOR, W/RECTIFIER
27359FRAME, ALTERNATOR RECTIFIER END
27365PLATE, TERMINAL
27370HOLDER ASSY, ALTERNATOR BRUSH
27384WASHER
27387INSULATOR, TERMINAL
27388COVER, ALTERNATOR BRUSH
sub27388-42010
27389INSULATOR, TERMINAL
sub27389-42010
27443COVER, ALTERNATOR BEARING
27446CLIP, ALTERNATOR CORD
27700AREGULATOR ASSY, GENERATOR
9006800001
main90068-00001
9006800002
main90068-00002
9006800003
main90068-00003
9006804001
main90068-04001
9009900195
main90099-00195
9009900197
main90099-00197
9009900243
main90099-00243
9009900246
main90099-00246
9009904966
main90099-04966
9009905119
main90099-05119
9009905171
main90099-05171
9009905172
main90099-05172
9017906158
main90179-06158
9331914025
main93319-14025
35 parts on this diagram · 1 diagram in section
