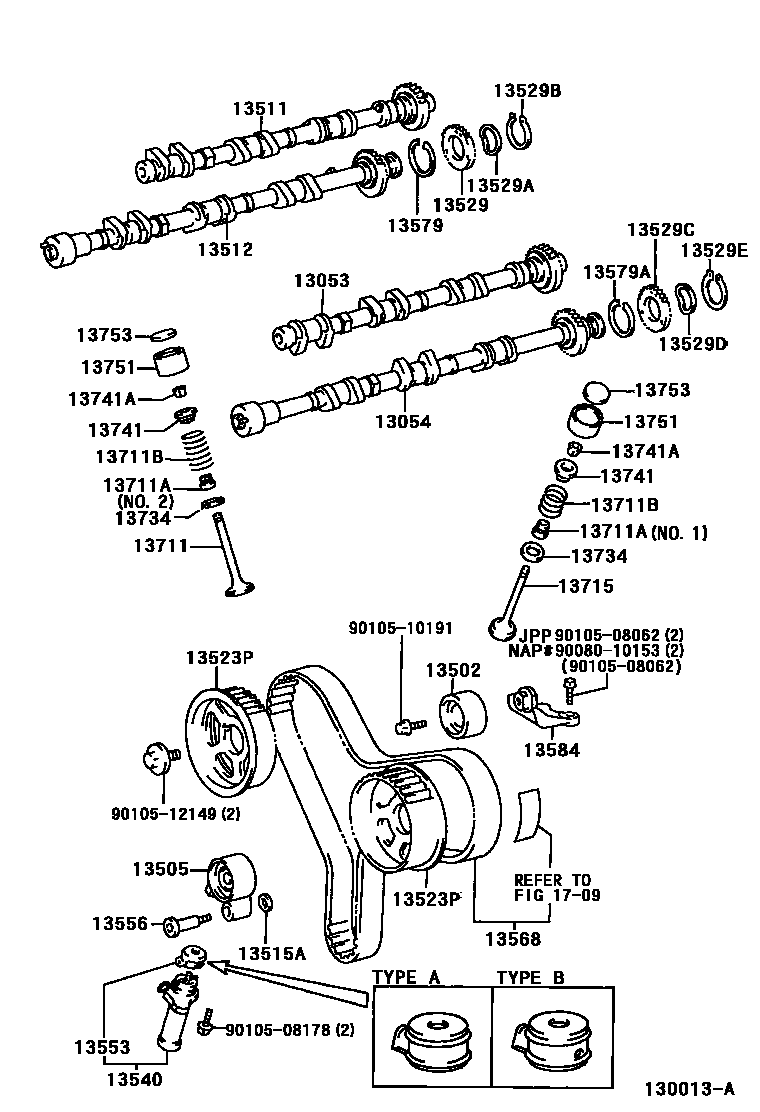

CAMSHAFT & VALVE
13053CAMSHAFT SUB-ASSY, NO.3
(L)
(L)
(J)
13054CAMSHAFT SUB-ASSY, NO.4
(L)
(L)
(J)
13502IDLER SUB-ASSY, TIMING BELT, NO.2
13511CAMSHAFT
(L)
(L)
(J)
13512CAMSHAFT, NO.2
(L)
(L)
13515AWASHER, PLATE(FOR DISTRIBUTOR DRIVE GEAR)
13523PPULLEY, CAMSHAFT TIMING
sub13523-20020
13529GEAR, CAMSHAFT SUB
13529AWASHER, WAVE(FOR CAMSHAFT SUB GEAR)
13529BRING, SHAFT SNAP(FOR CAMSHAFT SUB GEAR)
13529CGEAR, CAMSHAFT SUB, NO.3
13529DWASHER, WAVE(FOR CAMSHAFT SUB GEAR, NO.3)
13529ERING, SHAFT SNAP(FOR CAMSHAFT SUB GEAR, NO.3)
13553COVER, CHAIN TENSIONER DUST
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
13556SHAFT, TIMING BELT IDLER
13579WASHER, CAMSHAFT TIMING GEAR BOLT
sub13579-50020
13579AWASHER, CAMSHAFT TIMING GEAR BOLT, NO.3
sub13579-50020
13711VALVE, INTAKE
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
NO.2,(L)
NO.2,(J)
13711BSPRING, COMPRESSION(FOR INNER)
(L)
(J)
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
sub13741-20021
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
13753SHIM, VALVE ADJUSTING
T=2.50
T=2.55
T=2.60
T=2.65
T=2.70
T=2.75
T=2.80
T=2.85
T=2.90
T=2.95
T=3.00
T=3.05
T=3.10
T=3.15
T=3.20
T=3.25
T=3.30
1709
9008010153
main90080-10153
9010508062
main90105-08062
9010508178
main90105-08178
9010510191
main90105-10191
9010512149
main90105-12149
