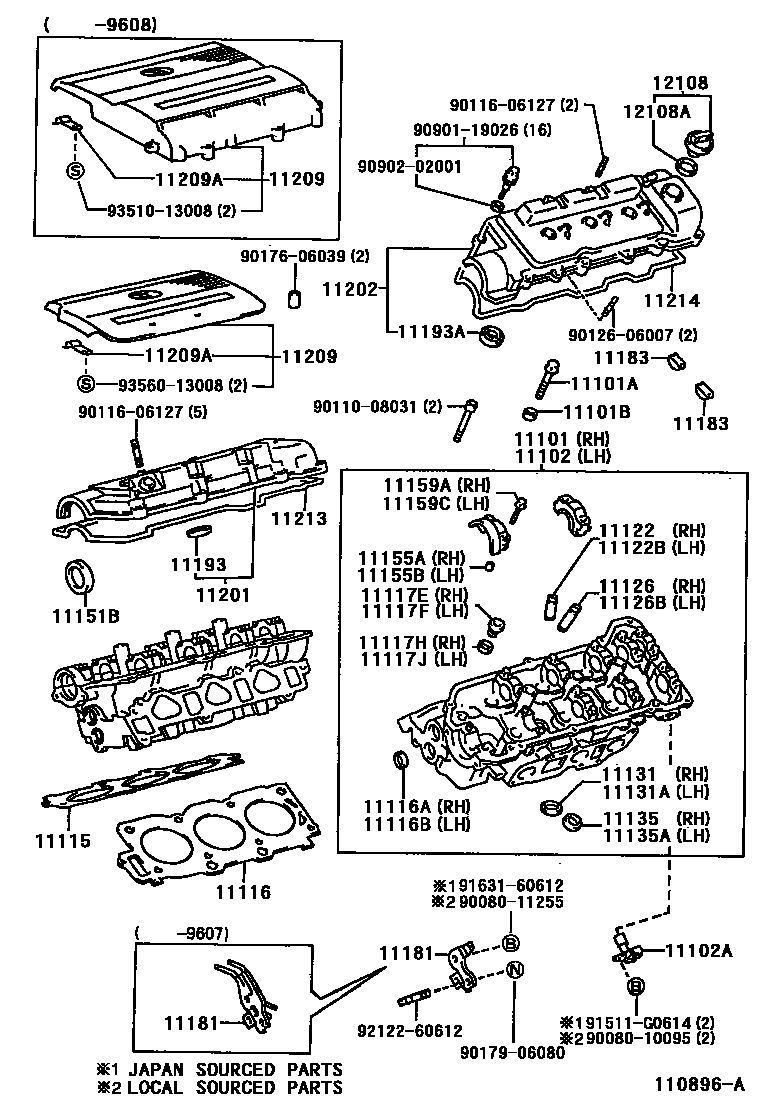

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
11101ABOLT(FOR CYLINDER HEAD SET)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11102HEAD, CYLINDER, LH
11102ASENSOR, CAMSHAFT POSITION
(L)
(J)
11115GASKET, CYLINDER HEAD
11116GASKET, CYLINDER HEAD, NO.2
11116APLUG, TIGHT, NO.1
11116BPLUG, TIGHT, NO.2
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
sub90341-24011
11117FPLUG, W/HEAD STRAIGHT SCREW, NO.2
sub90341-24011
11117HGASKET(FOR WATER HOLE)
11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)
11122BUSH, INTAKE VALVE GUIDE
O/S 0.05
11122BBUSH, INTAKE VALVE GUIDE, NO.2
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
O/S 0.05
11126BBUSH, EXHAUST VALVE GUIDE, NO.2
STD
O/S 0.05
11131SEAT, INTAKE VALVE
STD
O/S 0.03
11131ASEAT, INTAKE VALVE, NO.2
STD
O/S 0.03
11135SEAT, EXHAUST VALVE
STD
O/S 0.03
11135ASEAT, EXHAUST VALVE, NO.2
STD
O/S 0.03
11151BSEAL, OIL(FOR CAMSHAFT SETTING)
11155APIN, RING W/HEAD
11155BPIN, RING
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
11159CBOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
11181PLATE, CYLINDER HEAD, REAR
11183PLUG, SEMICIRCULAR
11193GASKET, SPARK PLUG TUBE
sub11193-62040
11193AGASKET, SPARK PLUG TUBE, LH
sub11193-62040
11202COVER SUB-ASSY, CYLINDER HEAD, LH
sub11202-0A021
11209COVER SUB-ASSY, V-BANK
11209ACLAMP, PIPE
11213GASKET, CYLINDER HEAD COVER
11214GASKET, CYLINDER HEAD COVER, NO.2
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
9008010095
main90080-10095
9008011255
main90080-11255
9011008031
main90110-08031
9011606127
main90116-06127
9012606007
main90126-06007
9017606039
main90176-06039
9017906080
main90179-06080
9090119026
main90901-19026
9090202001
main90902-02001
91511G0614
main91511-G0614
9163160612
main91631-60612
9212260612
main92122-60612
9351013008
main93510-13008
9356013008
main93560-13008
52 parts on this diagram · 1 diagram in section
