STANDARD TOOL

09110JACK ASSY

main09111-06010iMCX10199508

09113HANDLE, JACK

main09113-06010iMCX10199508-199608

sub09113-06020

main09113-06020iMCX10199608

09120BAG, TOOL

main09120-16030iMCX10199508

09130PLIERS

main99913-11500iMCX10199508

09135DRIVER, SCREW

main99915-10700iMCX10199508

09141SPANNER

main99914-10810iMCX10199508

8 X 10

main99914-11214iMCX10199508

12 X 14

09150WRENCH, HUB NUT BOX

main09150-26010iMCX10199508

09155WRENCH, SPARK PLUG

main09155-74020iMCX10199508

09183WRENCH, WHEEL CAP

main09183-00010iMCX10199508

09184STOPPER, WHEEL

main09184-00010iMCX10199508

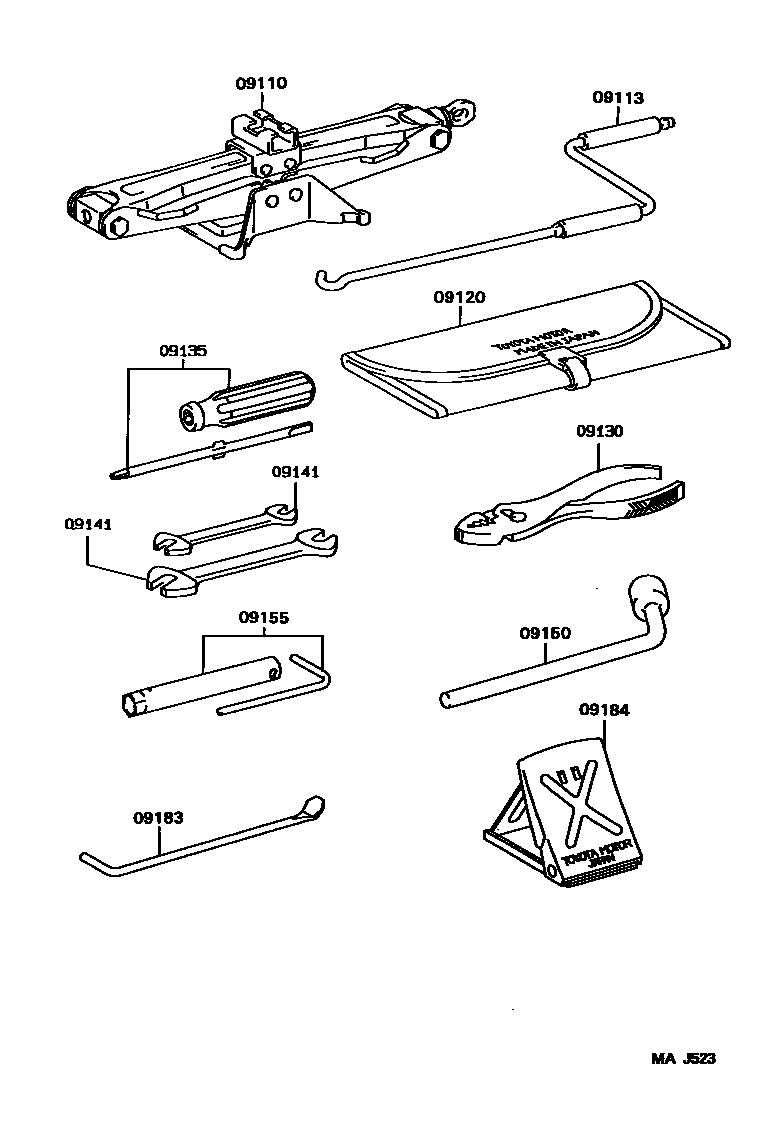

10 parts on this diagram · 1 diagram in section
