HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

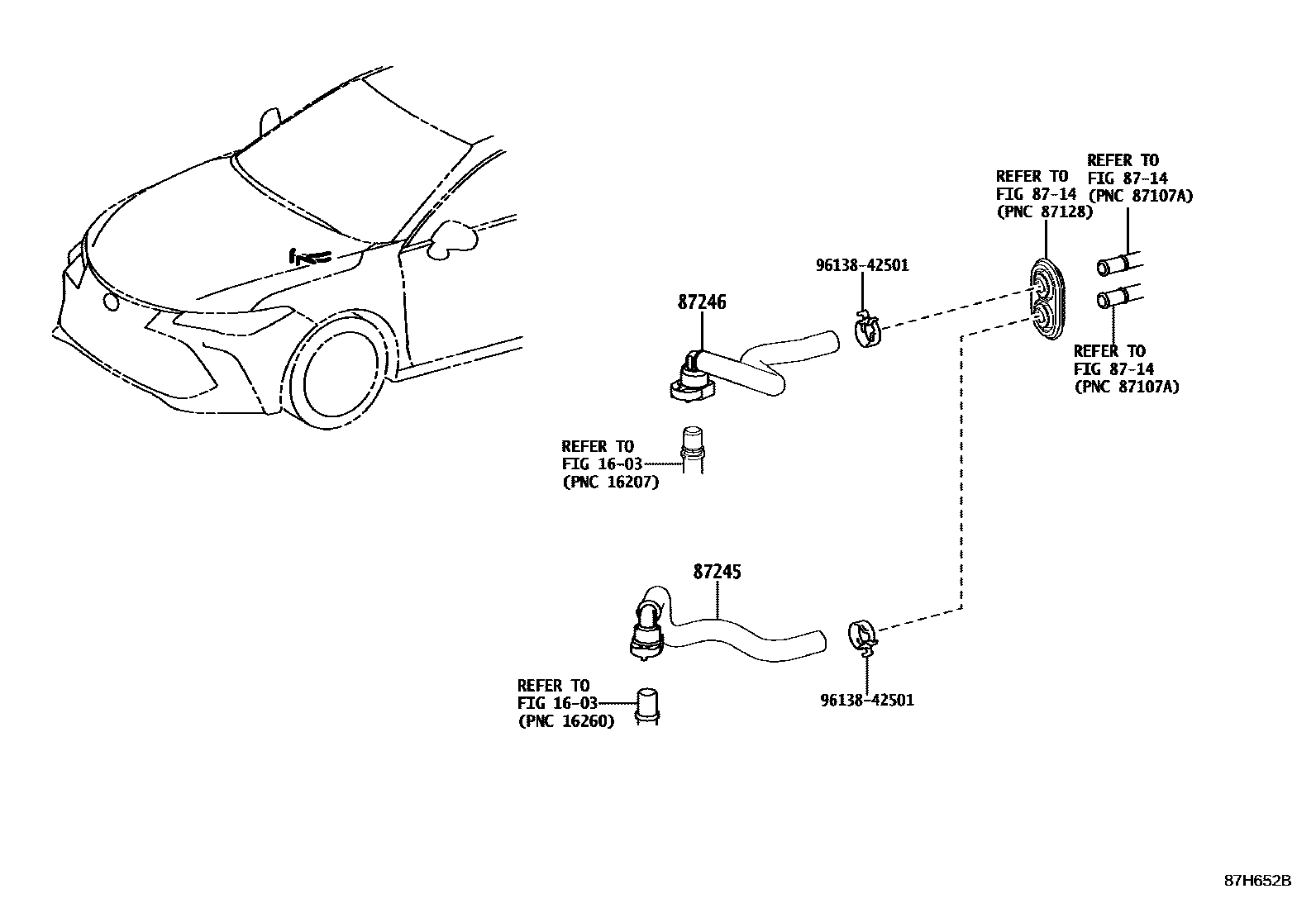

87245HOSE, HEATER WATER, INLET

main87209-07010iAXXA50,AXXH50202304

main87209-07030iMXXA50..B,E202407

87246HOSE, HEATER WATER, OUTLET

main87209-07020iAXXH50..E202106-202202

main87209-07040iMXXA50..B,E202407

9613842501

main96138-42501

5 parts on this diagram · 3 diagrams in section
