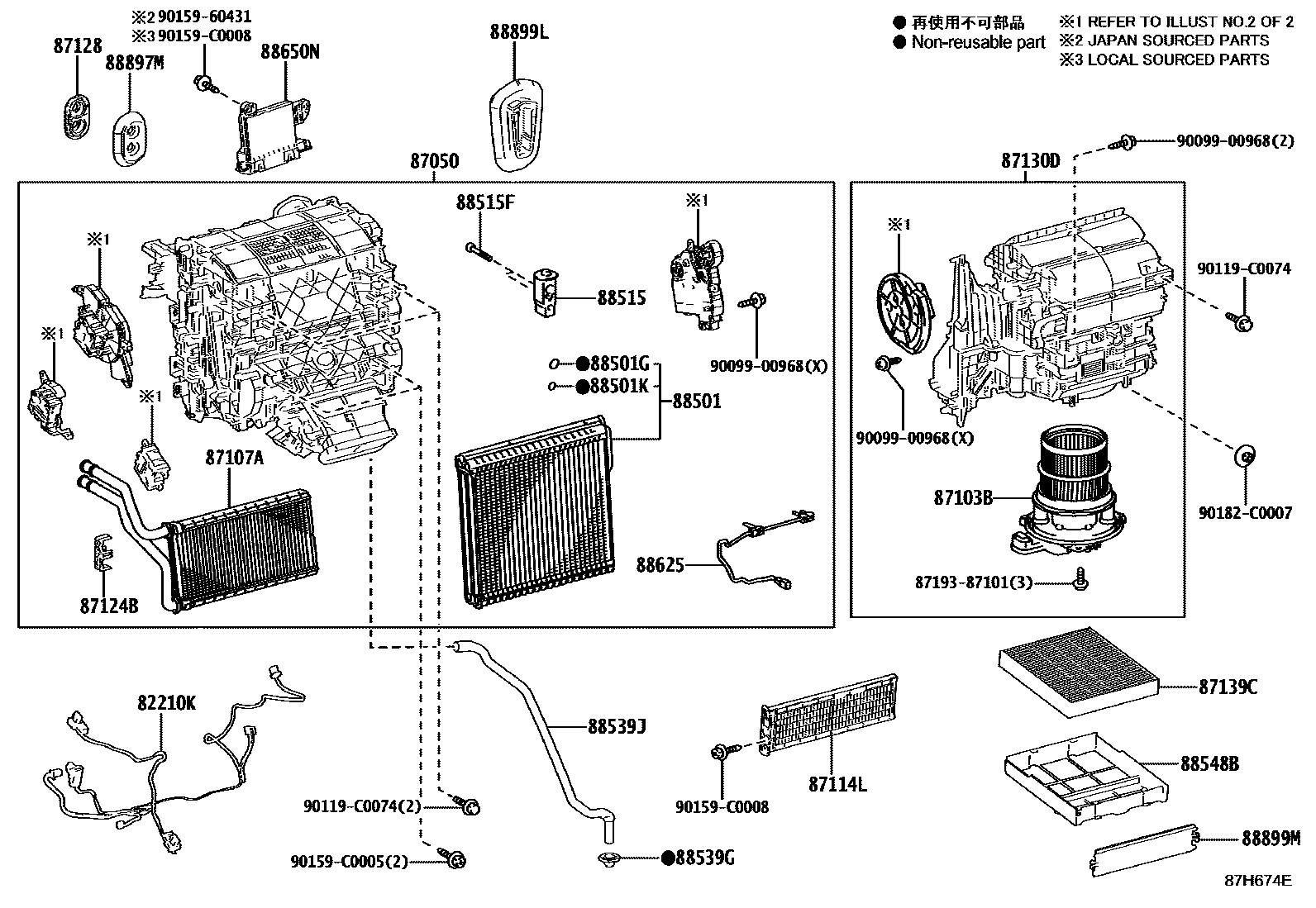

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1DAMPER SERVO

82210KHARNESS ASSY, AIR CONDITIONER

main82212-07030iAXXH50..B,E,G201903-202107

main82212-07040iAXXH50..Q201903-202107

87050RADIATOR ASSY, AIR CONDITIONER

main87050-07220iAXXA50,MXXA50201903-202008

main87050-07230iAXXH50..B,E,G201903-202107

main87050-07240iAXXH50..Q202107-202303

main87050-07260iMXXA50..B,E202304-202407

main87050-07270iAXXH50..B,E,G202304

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-0R040iAXXA50,AXXH50,MXXA50202203-202303

main87103-F4060iAXXH50201903-202107

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-07040iAXXA50,MXXA50201903-202106

87114LCOVER, HEATER, NO.2

main87114-07010iAXXH50201903-202107

87124BCLAMP, HEATER

main87124-F4060iAXXH50201903-202107

87128GROMMET, HEATER

main87128-0A040iMXXA50..B,E202312-202407

(L)

main87128-28010iAXXH50..E202106-202202

87130DBLOWER ASSY

main87130-0R060iMXXA50..G;AXXA50,AXXH50202304

main87130-F4070iAXXA50,MXXA50201903-202106

87139CFILTER, CLEAN AIR

main87139-02260iAXXA50,AXXH50,MXXA50202304-202308

MICRO DUST FILTER,OE PART

main87139-02290iMXXA50..B,E202308-202407

MICRO DUST FILTER,OE PART

main87139-58010iAXXA50,MXXA50201903-202106

DEODORANT FILTER

main87139-F4050iAXXA50,AXXH50,MXXA50201903-202106

MICRO DUST FILTER,OE PART

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-07070iAXXA50,MXXA50201903-202008

main88501-07080iAXXH50..Q202304

main88501-07090iAXXH50..E202107-202202

main88501-07110iAXXA50;MXXA50..G202304

88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)

main90099-14121iAXXA50,MXXA50201903-202106

ID=13.4,OD=18.2

88501KO-RING, COOLER EVAPORATOR NO.1(LIQUID)

main90099-14120iMXXA50..B,E;AXXH52,MXXH50202407

ID=10.8,OD=15.6

88515VALVE, COOLER EXPANSION

main88515-07050iAXXH50..Q202107-202303

main88515-07060iAXXH50..E202107-202202

main88515-F4040iMXXA50..G;AXXA50,AXXH50..B,E,G202304

main88515-F4080iAXXA50,MXXA50201903-202008

88515FBOLT(FOR COOLER EXPANSION VALVE)

main90099-04542×2iAXXH50201903-202107

88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)

main88888-06030iAXXH50201903-202107

88539JHOSE, DRAIN COOLER

main88539-07050iMXXA50..B,E202304-202407

88548BCASE, AIR FILTER

main88899-02260iAXXA50,AXXH50,MXXA50202304-202307

main88899-02261iMXXA50..B,E;AXXH52,MXXH50202407

main88899-F4350iAXXA50,AXXH50,MXXA50201903-202106

88625THERMISTOR, COOLER, NO.1

main88620-07010iAXXH50..Q202107-202303

main88620-07020iMXXA50..B,E;AXXH52,MXXH50202407

main88620-F4030iAXXA50,MXXA50201903-202008

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-07240iAXXH50..B;MXXA50..B,G202106-202203

B GRADE PACKAGE(WITH BACK MONITOR)

main88650-07300iAXXA50,MXXA50..E201903-202106

main88650-07320iAXXH50..G,Q201903-202107

main88650-07350iAXXA50,MXXA50..E202203-202303

main88650-07351iAXXH50..E202304

main88650-07390iAXXH50..B;MXXA50..B,G202203-202303

B GRADE PACKAGE(WITH BACK MONITOR)

main88650-07400iAXXA50,AXXH50..G,Q202203-202303

main88650-07420iMXXA50..G;AXXA50,AXXH50..B202304

main88650-07430iAXXA50,AXXH50..G,Q202304

main886H0-07020iAXXH52,MXXH50..G,Q202407

main886H0-07030supersedes 886H0-07010iMXXA50..B;MXXH50..B,E202407

ENTRY PLUS PACKAGE

88897MGROMMET (FOR HEATER PIPE)

main87128-07010iAXXA50,MXXA50201903-202106

88899LPARTS, COOLING UNIT

main88899-07030iAXXH50..B,E,G201903-202107

main88899-07040iAXXH50..Q201903-202107

88899MPLATE, COVER(FOR AIR FILTER)

main88899-F4290iMXXA50..B,E202304-202407

8719387101

main87193-87101

9009900968

main90099-00968

90119C0074

main90119-C0074

9015960431

main90159-60431

90159C0005

main90159-C0005

90159C0008

main90159-C0008

90182C0007

main90182-C0007

29 parts on this diagram · 2 diagrams in section
