CAMERA & REAR MONITOR DISPLAY

86790BCAMERA ASSY, TELEVISION, FR

main86790-07090iAXXA50,MXXA50..G201903-202106

main86790-07140iAXXA50,AXXH50..G,Q202304

BACK MONITOR-WITH(*PVM)

main86790-07220iAXXH52,MXXH50..G,Q202407

86790DCAMERA ASSY, TELEVISION, RR

main86790-07080iAXXA50,AXXH50,MXXA50..G,Q202106-202203

main86790-07130iAXXA50,AXXH50..G,Q202304

BACK MONITOR-WITH(*PVM)

main86790-07210iAXXH52,MXXH50..G,Q202407

main867B0-07040iAXXA50..E202106-202203

B GRADE PACKAGE(WITH BACK MONITOR)

main867B0-07050iMXXA50,MXXH50..B202407

main867B0-07060iMXXA50..G;AXXA50,AXXH50..B202304

86790ECAMERA ASSY, TELEVISION, SIDE RH

main86790-06360iAXXH52,MXXH50..G,Q202407

main86790-07110iAXXA50,AXXH50,MXXA50..G,Q202106-202203

main86790-F4120iAXXA50,AXXH50..G,Q202203-202303

BACK MONITOR-WITH(*PVM)

86790FCAMERA ASSY, TELEVISION, SIDE LH

main86790-06350iAXXH52,MXXH50..G,Q202407

main86790-07100iAXXA50,AXXH50,MXXA50..G,Q202106-202203

main86790-F4110iAXXA50,AXXH50..G,Q202304

BACK MONITOR-WITH(*PVM)

86792CCOMPUTER, PARKING ASSIST

main86792-07010iAXXA50,MXXA50..G201903-202106

main86792-07011iAXXA50,AXXH50,MXXA50..G,Q202106-202203

main86792-07030iAXXA50,AXXH50..G,Q202203-202303

BACK MONITOR-WITH(*PVM)

main86792-07040iAXXH52,MXXH50..G,Q202407

86796COVER, COMPUTER PARKING ASSIST

main86796-07010supersedes 86796-07010iAXXA50,MXXA50..G201903-202106

5521732010STRIP, DASH PANEL SILENCER FINISH

main55217-32010

9011906A06

main90119-06A06

90119C0307

main90119-C0307

90119C0531

main90119-C0531

9015960621

main90159-60621

9016750063

main90167-50063

90167C0019

main90167-C0019

9018906244

main90189-06244

9046707214

main90467-07214

9046707217

main90467-07217

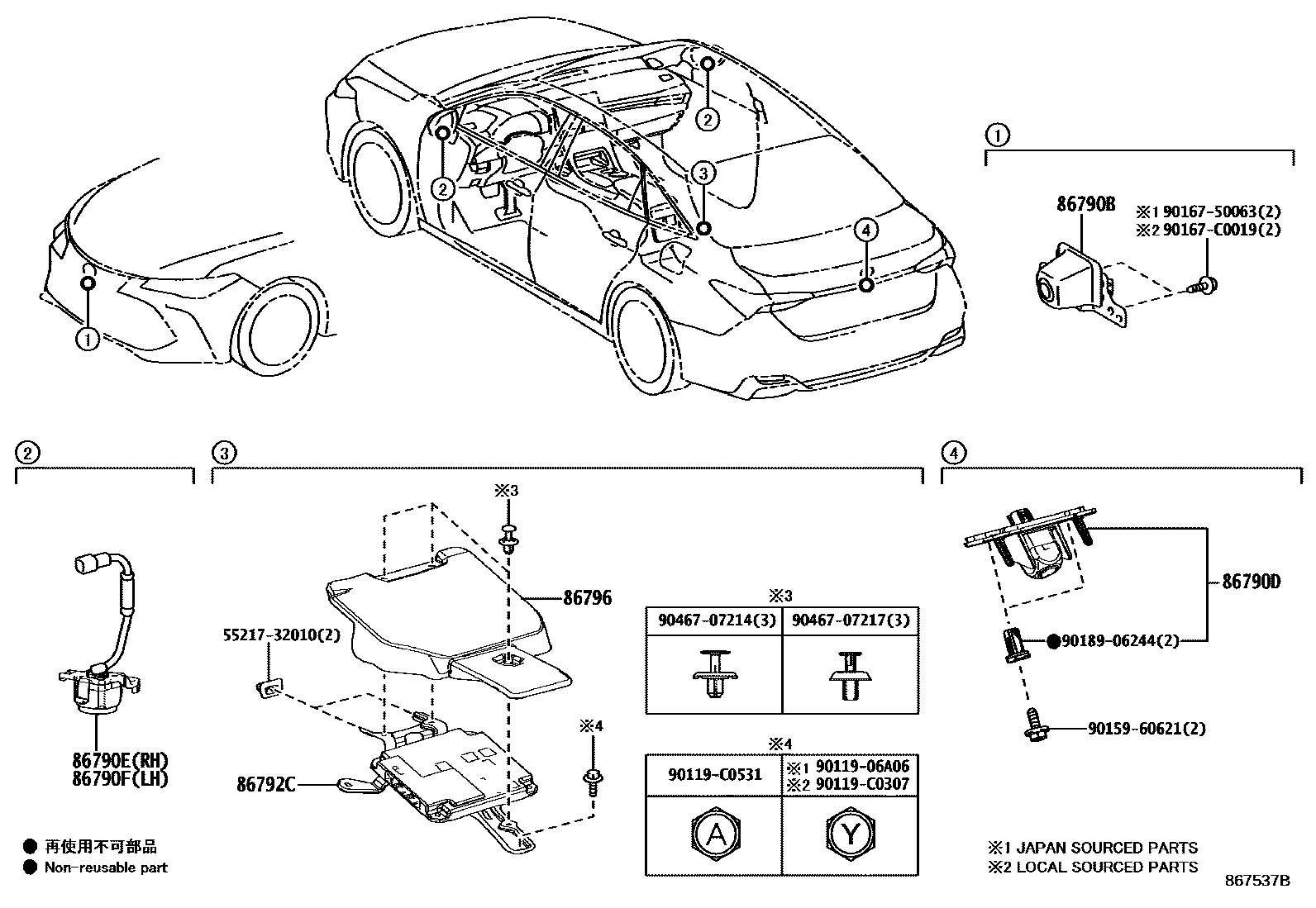

16 parts on this diagram · 1 diagram in section
